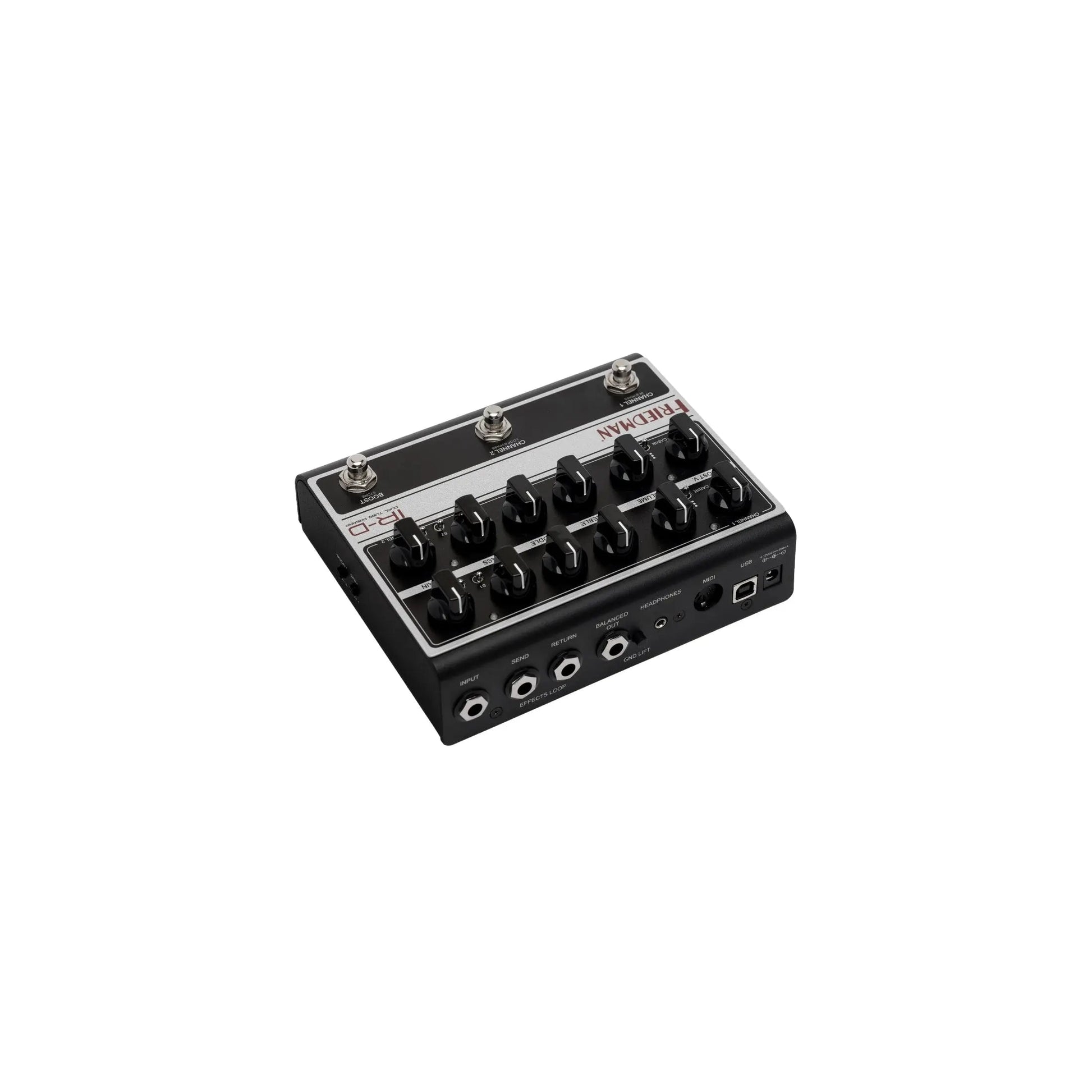

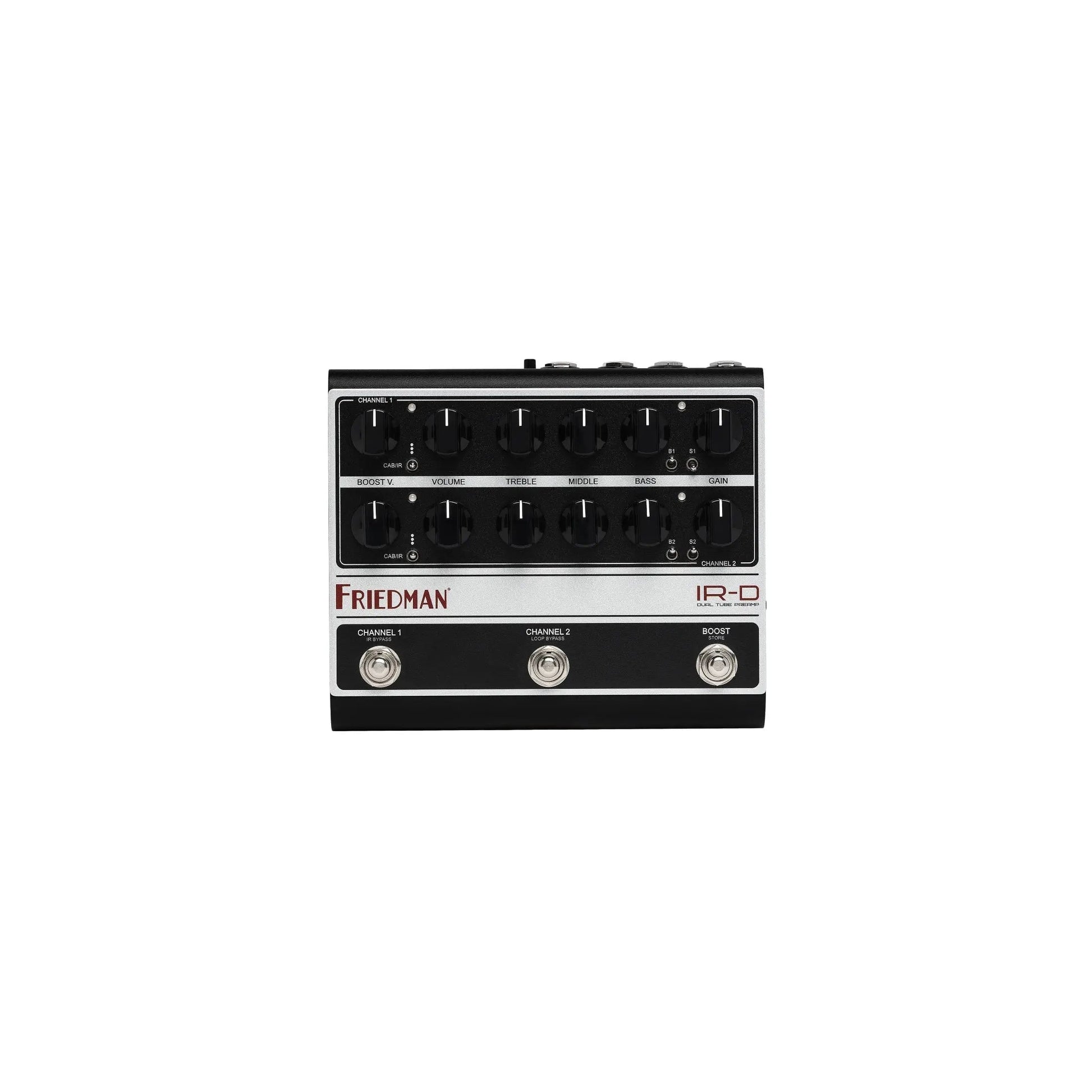

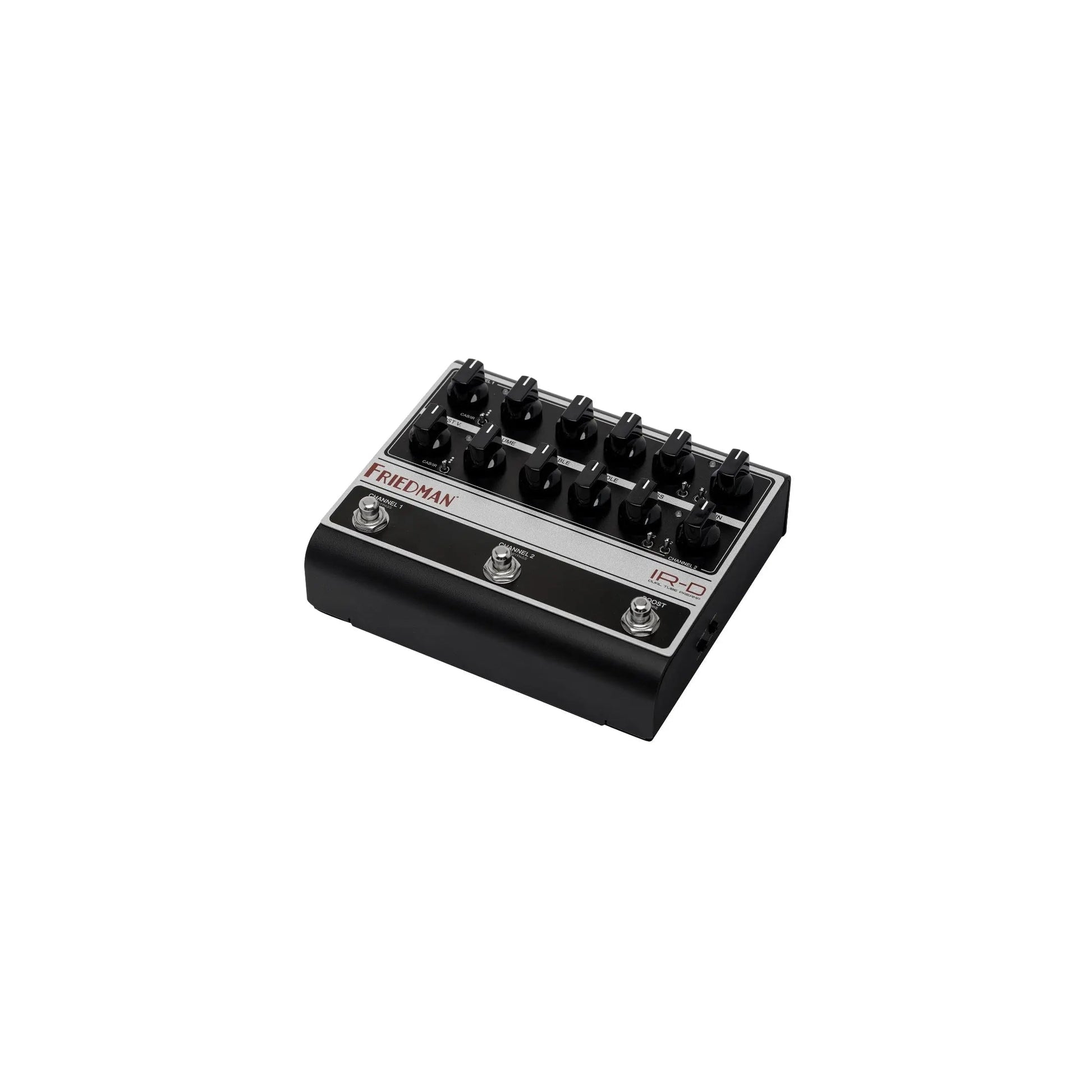

Friedman IR-D Preamp

The Friedman IR-D dual-channel tube preamp is an entire Friedman rig in a compact pedalboard-friendly package. IR-D boasts two fully independent identical foot-switchable channels which are based on Friedman’s legendary Dirty Shirley/Twin Sister designs. This Dave modded JTM45 circuit delivers the signature British tone for which Friedman is
known for. Powered by two high-voltage 12AX7 preamp tubes, each channel delivers the harmonic richness and touch response of Dave Friedman's finest designs. DSP IR cabinet/power amp simulation sends a studio-quality mic'd-up tone to your DAW
or Front-of-House. The IR-D provides easy-to-use controls without complex menus and 100-page manuals.

IR-D Features:

• All-tube HIGH-VOLTAGE preamp - DI
• 2 x 12AX7 preamp tubes
• Two independent identical channels + boost
  o Based on Friedman’s legendary Dirty Shirley/Twin Sister designs
• MIDI programmable features:
  o Channel select / Boost
  o IR select
  o Thump and Presence – three-way switch per channel
  o Effects loop ON/OFF
  o Boost Lock

• Power amp simulation with software editable Presence and Thump (per channel)
• Low latency Impulse Response cabinet simulation (bypassable)
• Three position CAB/IR select switch per channel (programmable via software)
• 13 free Friedman IRs or load your own
• Boost Volume and Gain controls (per channel)
• Volume and Gain controls (per channel)
• Full EQ consisting of Bass, Middle, Treble (per channel)
• 2-way Bright switch (Per Channel)
• 3-way Structure switch (Per Channel)
• Three multi-function foot switches

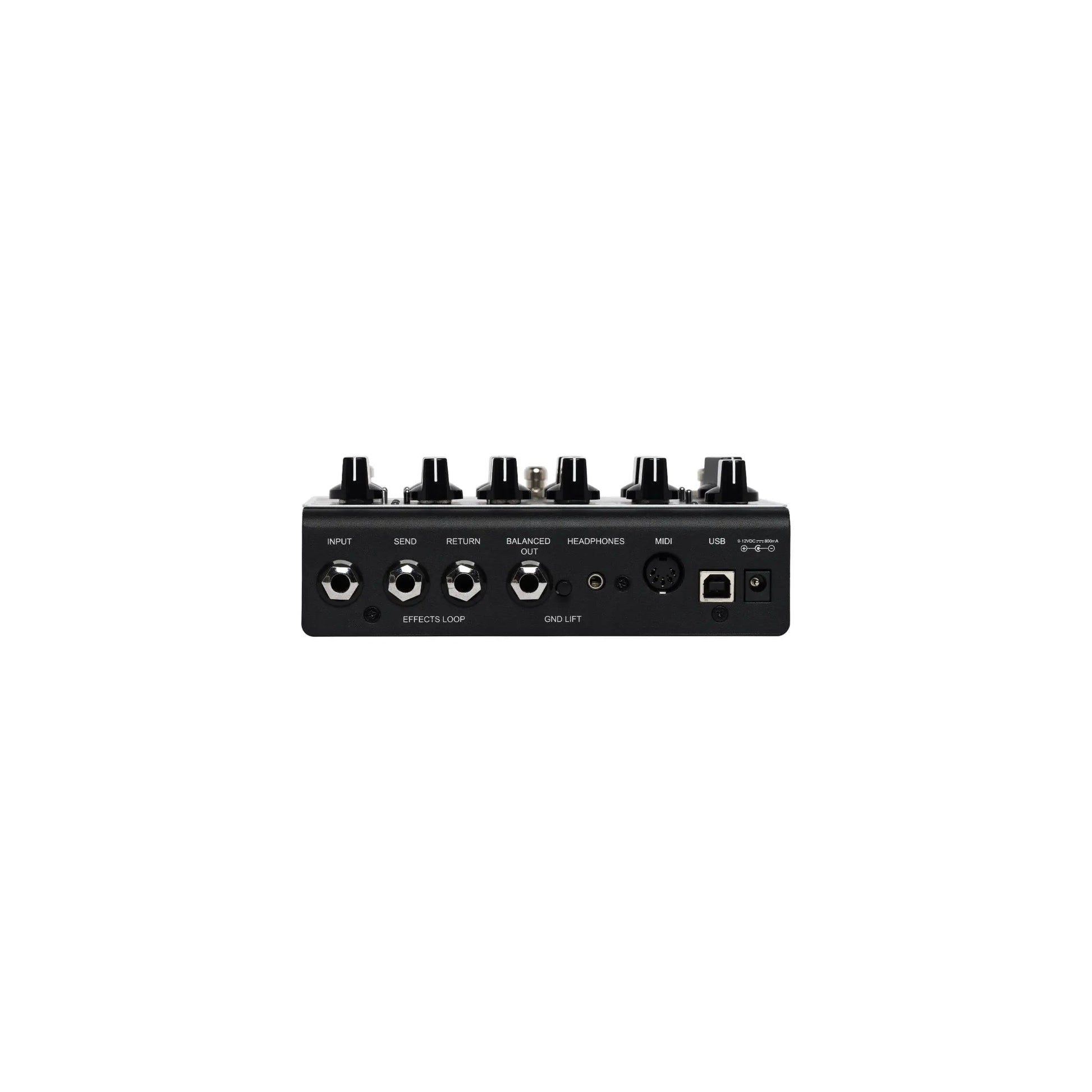

• Ultra-transparent series FX loop (bypassable)
• TRS balanced output
• Headphone output
• MIDI 5 pin standard connector and USB MIDI
• USB software editor - powered by SYNERGY

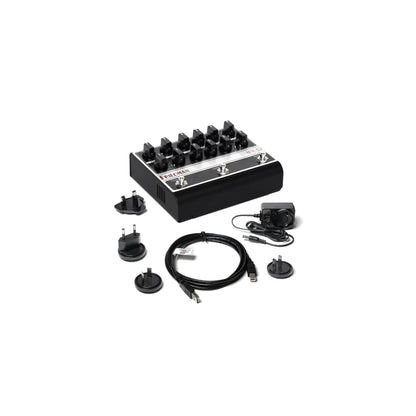

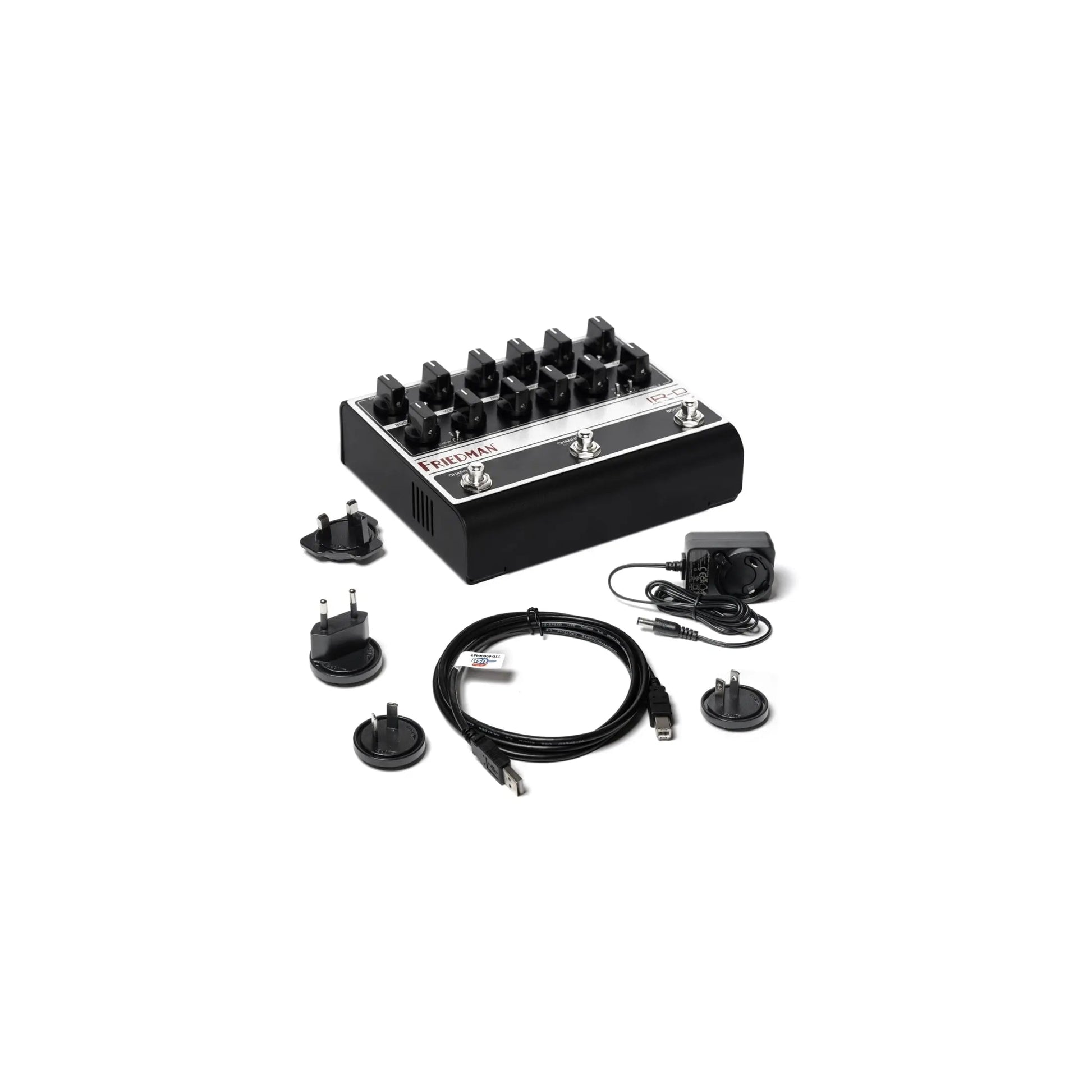

• Universal 12V Power Supply Included
• 6 Foot USB2.0 A Male to B Male cable Included
• Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
• Weight: 1.5 lbs.
