PRODUCT DETAILS
This Cry Baby Wah captures Kirk Hammett's thick top end and full dynamic range with custom graphics and tread.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
THE LONG STORY
Now you can command the same killer wah tone as Kirk with the new Kirk Hammett Cry Baby Wah. Developed in close collaboration with the metal guitar icon himself, it has been meticulously tuned and tweaked to deliver the wah sound that revolutionized metal solos. This is the legendary tone that Kirk dials in on tour using his Cry Baby Rack Wah. Dunlop's engineers took Kirk's EQ, volume and tone settings—reflecting decades of blazing Cry Baby riffology—and reproduced them with exacting precision. This pedal is exceptionally even in response as you move from heel to toe, with a thick top end and full dynamic range. Dare to step into the footprint of a giant. Own a piece of the legend: the Kirk Hammett Signature Wah from Dunlop.
POWER

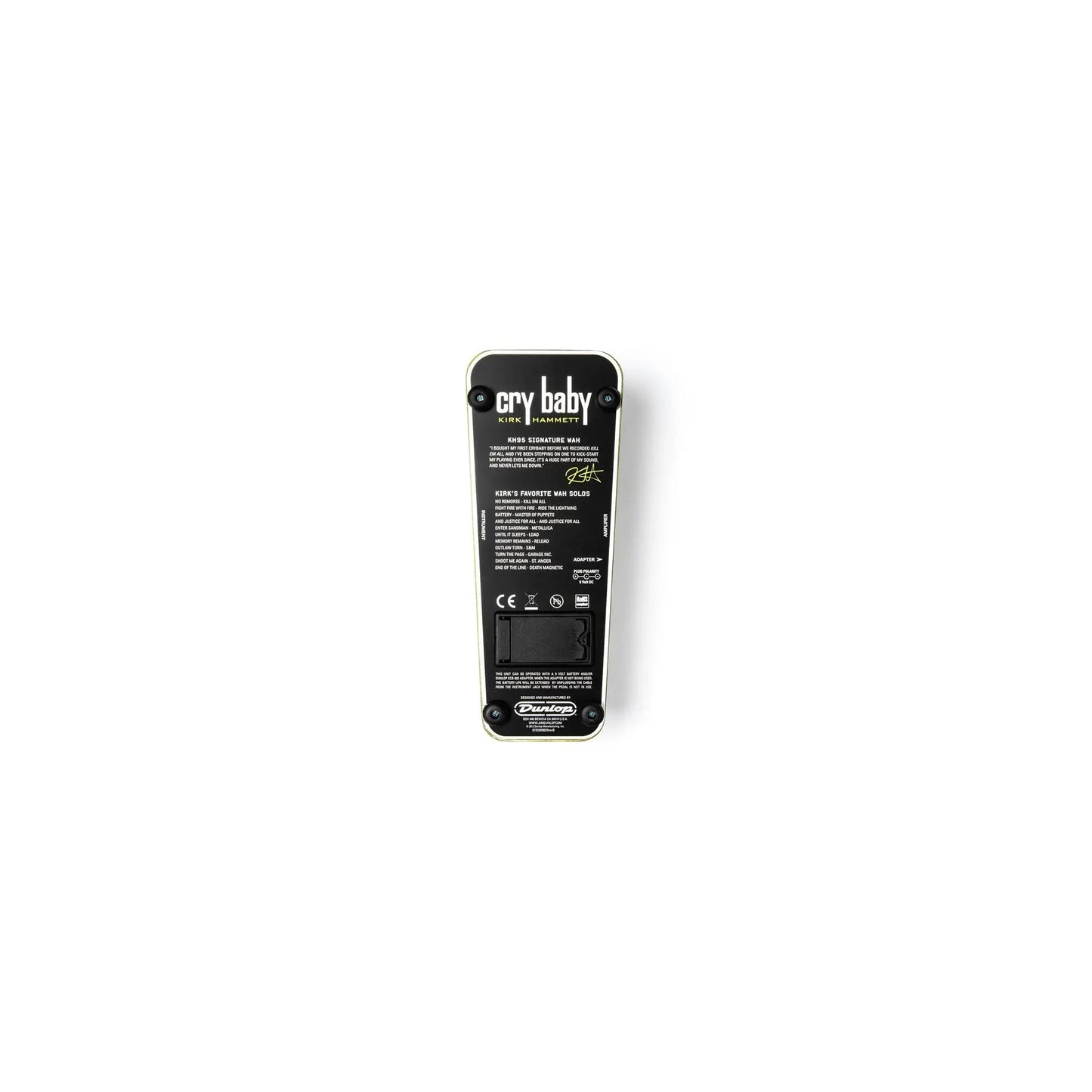

The Kirk Hammett Signature Cry Baby® Wah Wah is powered by one 9-volt battery (accessed via the bottom of the pedal), an AC adapter such as the Dunlop ECB003/ ECB003E, or a DC Brick™ power supply.
SETUP INSTRUCTIONS
• Run a shielded instrument cable from your guitar to the KH95’s INSTRUMENT jack.
• Run another shielded instrument cable from the KH95’s AMPLIFIER jack into your amplifier input.
• Turn on the amplifier and begin playing.
• To turn the pedal on/off, push the toe of the pedal down until you feel a “click”.
• By rocking your foot back and forth on the pedal, you can change the effect that the Cry Baby has on the tone of your instrument instantaneously.
SPECIFICATIONS
Impedance
Input 680 kΩ Output 4.7 kΩ
Filter Parameter
Low Pass 300 Hz to 380 Hz High Pass 1.4 kHz to 1.8 kHz
Maximum Level
Input -13.5 dBV Output +6.5 dBV
Maximum Gain
Heel Down +17 dB at 300 Hz to 380 Hz Toe Down +21 dB at 1.4 kHz to 1.8 kHz.
Noise Floor*
Heel Down >95 dBV Toe Down >89 dBV
Bypass: Hardwire
Current Draw: 4 mA
Power Supply: 9 volts DC
*OdBV=1VRMS, A-weighted
