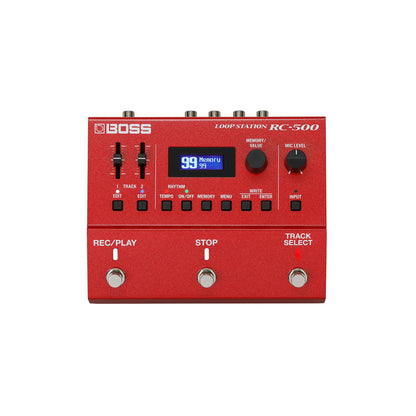

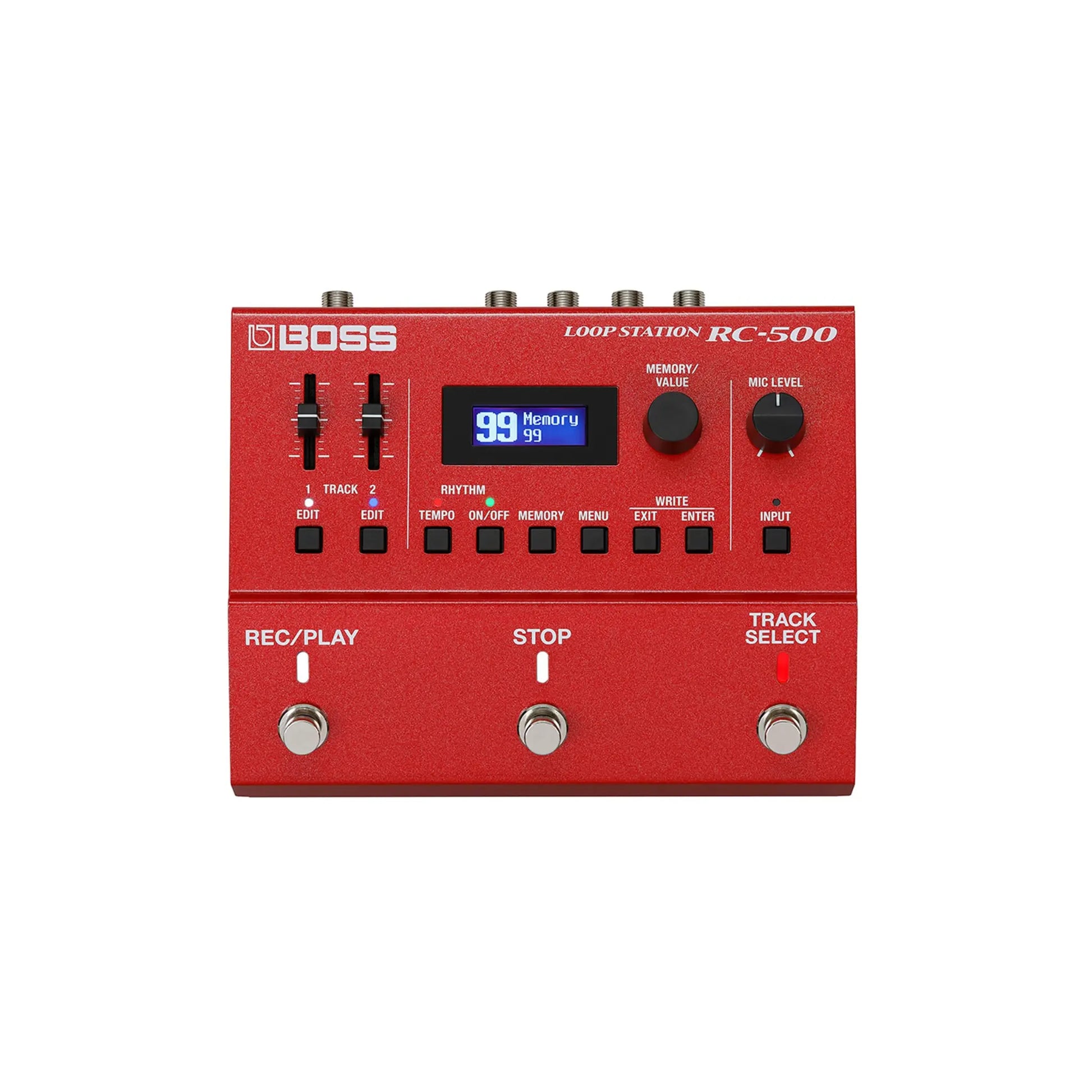

Boss RC-500 Loop Station - (Re-Loved)

Product Description

Take your live looping to the next level with the BOSS RC-500 Loop Station. Built for guitarists, singer-songwriters, multi-instrumentalists, and live performers, the RC-500 combines two independent stereo loop tracks with premium 32-bit audio processing, onboard rhythms, Loop FX, microphone connectivity, and advanced MIDI control.

With 13 hours of total stereo recording time, 99 phrase memories, 57 rhythm patterns, and 16 drum kits, the RC-500 gives you everything you need to build layered performances, practice with backing tracks, or create complete arrangements on the fly.

The dedicated XLR microphone input includes phantom power, while stereo instrument inputs make it easy to integrate the RC-500 into your pedalboard or performance setup.

Key Features

• Advanced two-track stereo looper
• Premium 32-bit AD/DA conversion and 32-bit floating-point processing
• Up to 13 hours of total recording time
• Approximately 1.5 hours per track
• 99 onboard phrase memories
• 57 rhythm patterns with A/B variations
• 16 drum kits
• Dedicated XLR microphone input with 48V phantom power
• Mono/stereo instrument inputs
• Four Loop FX: Beat Repeat, Beat Shift, Beat Scatter and Vinyl Flick
• Reverse loop function
• RGB-backlit LCD display
• Independent Track 1 and Track 2 faders
• MIDI IN/OUT via compact TRS connections
• USB connectivity for WAV backup and import
• Expandable control via external footswitches and expression pedals
• Runs on four AA batteries or optional BOSS PSA-S series AC adapter

Designed for Serious Looping

The RC-500's two-track architecture allows performers to build songs and arrangements with greater control. Record and manipulate each track independently, combine tracks for layered textures, and use the onboard rhythms to give performances a solid groove.

The built-in Loop FX add creative effects such as repeat, shift, scatter, and vinyl-style processing, while the reverse function provides another way to transform your loops.

Professional Audio Quality

With 32-bit AD/DA conversion and 32-bit floating-point processing, the RC-500 is designed to maintain clear, detailed audio through recording and overdubbing. Stereo recording and playback operate at 44.1 kHz.

Microphone & Instrument Connectivity

Connect guitars, keyboards, instruments, and other stereo sources through the 1/4-inch inputs. A dedicated balanced XLR microphone input provides independent mic-level control and 48V phantom power for compatible condenser microphones.

The flexible routing system can also send guitar and vocal sources to separate outputs when required.

Rhythms & Creative Tools

Create performances with 57 preset rhythm patterns, each featuring A/B variations, across 16 different drum kits. Rhythm sections can be combined with your loops to create complete musical arrangements without additional equipment.

MIDI & Expanded Control

Advanced users can integrate the RC-500 with MIDI controllers, drum machines, DAWs, and other compatible equipment. External footswitches and expression pedals can also be connected for additional hands-free control.

USB & Loop Management

Store up to 99 phrase memories and back up loop audio to a computer via USB. WAV files can also be imported using BOSS Tone Studio, making the RC-500 useful for backing tracks, practice material, lessons, and live playback.

Specifications

• Tracks: 2
• Recording format: WAV, 44.1 kHz, 32-bit float, stereo
• Maximum recording time: Approx. 1.5 hours per track / 13 hours total across memories
• Sampling frequency: 44.1 kHz
• AD/DA conversion: 32-bit
• Processing: 32-bit floating point
• Rhythm patterns: 57 × 2 variations
• Rhythm kits: 16
• Phrase memories: 99
• Display: 96 × 32-dot RGB backlit LCD
• Instrument inputs: 1/4-inch
• Microphone input: Balanced XLR with 48V phantom power
• Outputs: 1/4-inch A/MONO and B
• Control connection: 1/4-inch TRS CTL 1,2/EXP
• USB: Micro-B
• MIDI: TRS MIDI IN/OUT
• Power: 4 × AA batteries or optional PSA-S series AC adapter
• Dimensions: 170 × 138 × 62 mm
