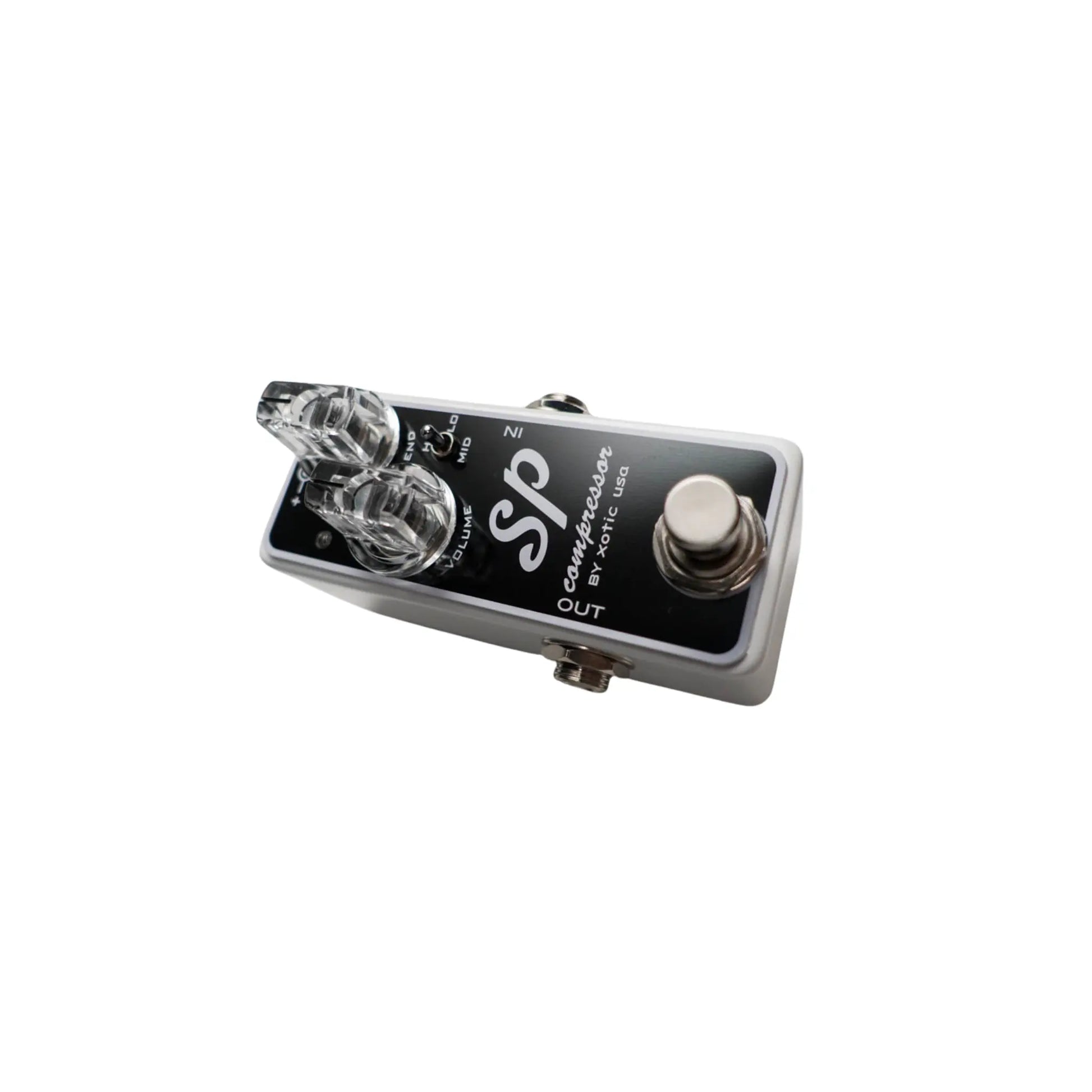

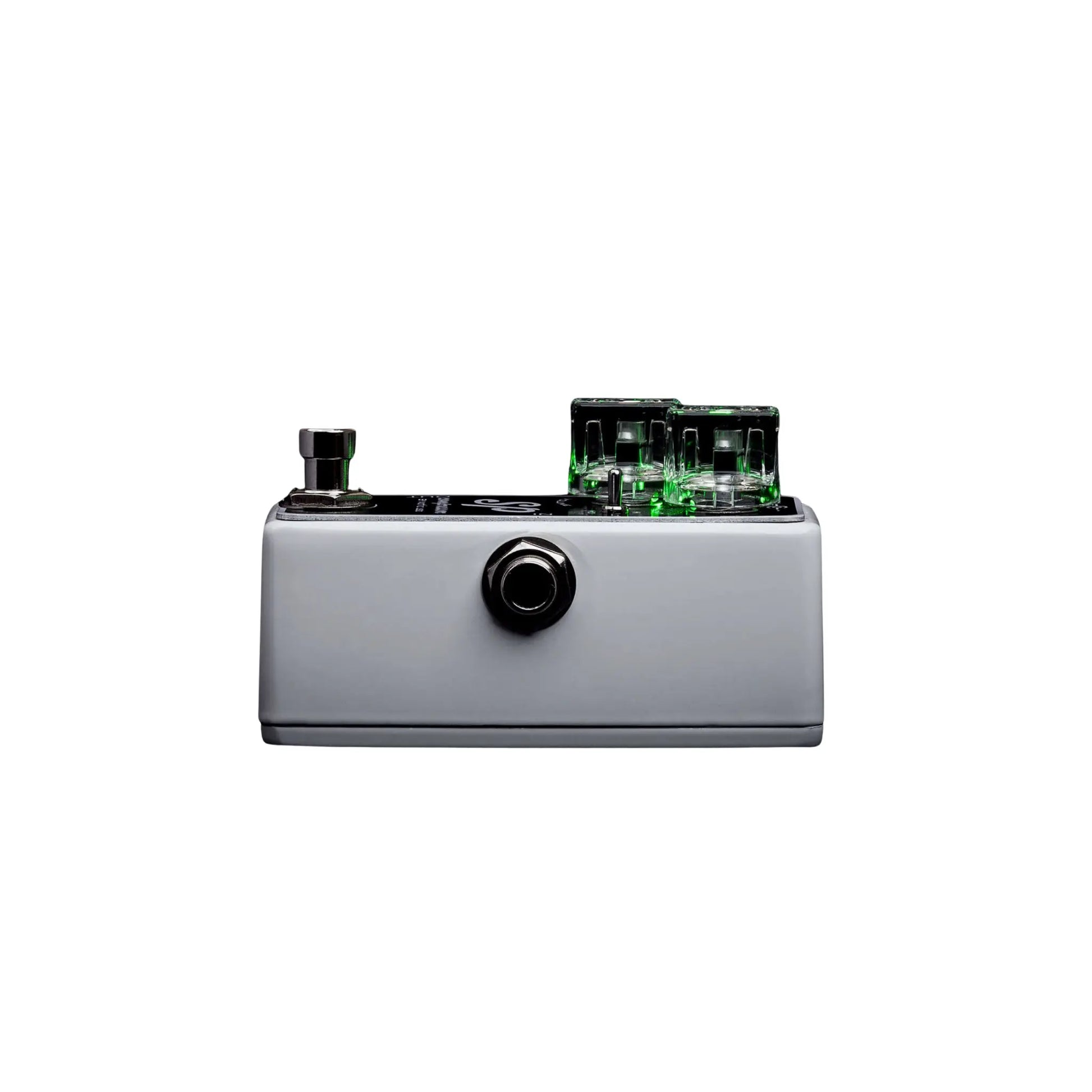

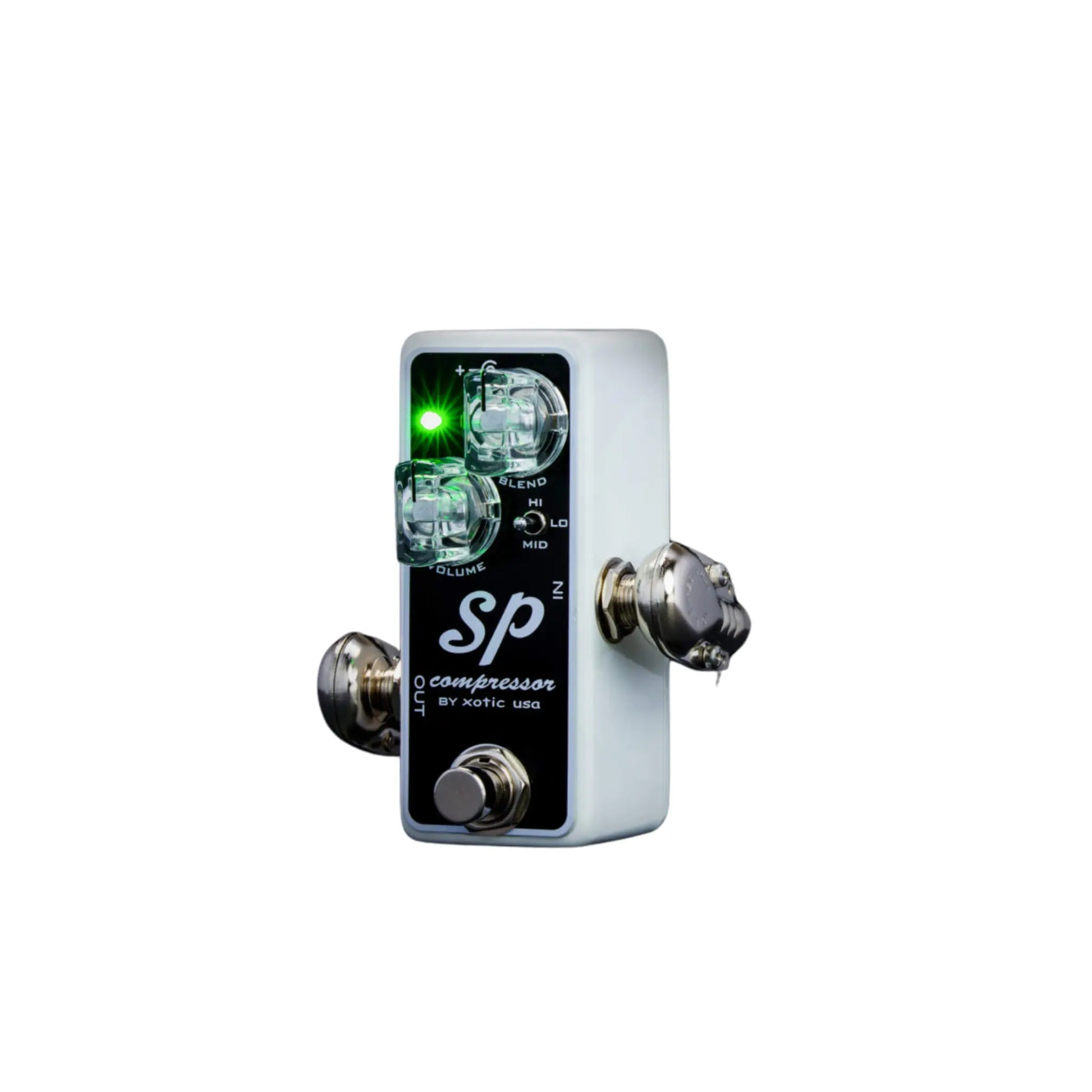

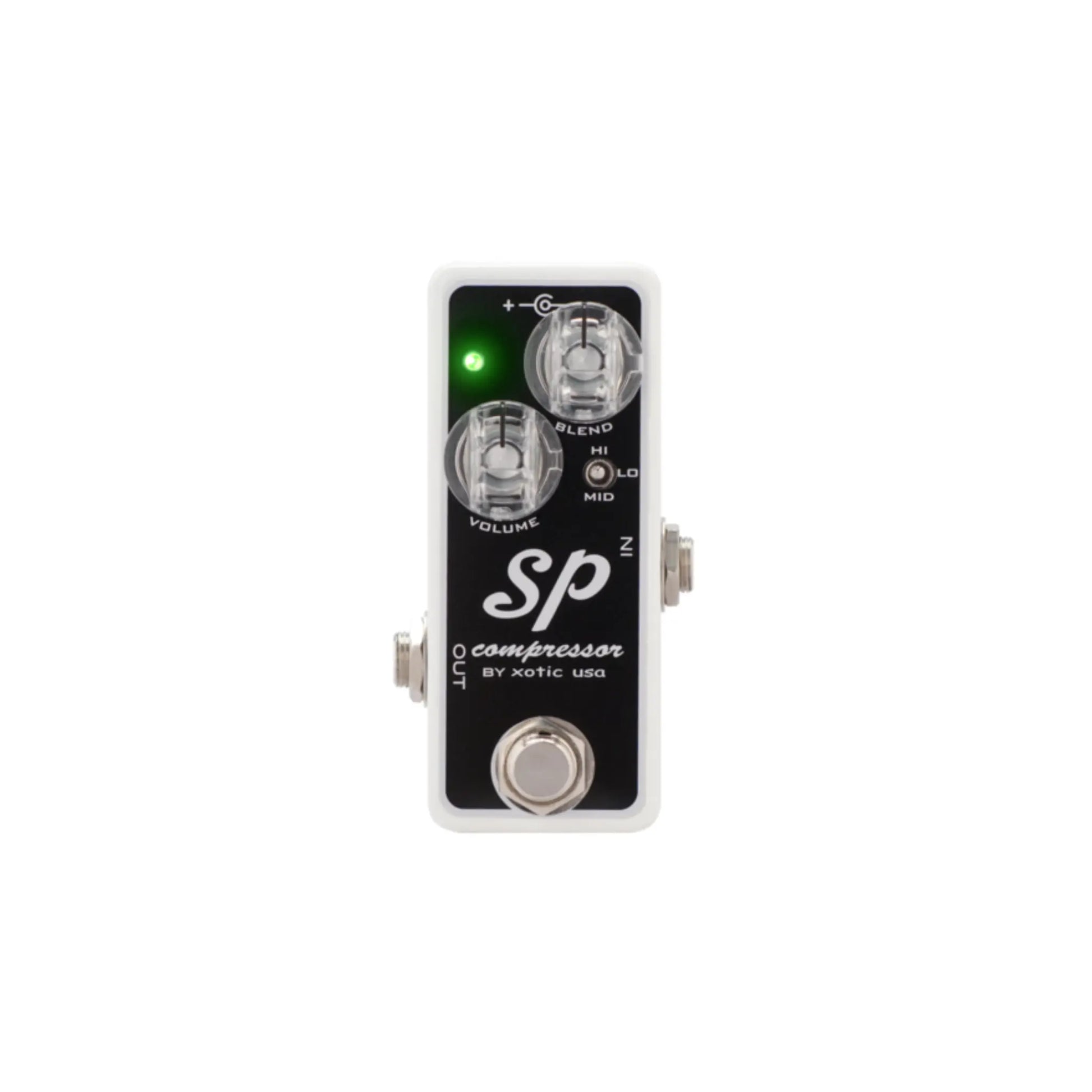

Xotic SP Compressor Pedal

Versatile Compression from Vintage Warmth to Modern Precision

The Xotic SP Compressor delivers exceptional tone quality in a compact pedal, offering a wide spectrum of compression styles ranging from vintage warmth to subtle studio-style control and modern punch. Inspired by the legendary Ross Compressor, the SP Compressor provides smooth sustain, enhanced dynamics, and professional-grade tone shaping in an easy-to-use format.

Designed for maximum flexibility, it features a convenient dry blend knob for parallel compression, up to +15dB of clean boost, and an internal DIP switch that allows players to fine-tune attack characteristics. The result is a compressor that works seamlessly with other pedals such as distortion, reverb, and wah while preserving the natural feel of your playing.

FEATURES & PERFORMANCE

• Wide compression range from vintage-style squish to modern dynamic control


• Inspired by the highly respected Ross Compressor circuit
• Dry blend knob allows parallel compression for natural tone preservation
• Up to +15dB clean boost for enhanced presence and sustain
• Internal DIP switches for advanced attack and tone adjustments
• Works seamlessly with distortion, reverb, wah, and other pedals
• True bypass switching for pure signal when disengaged

VOLTAGE DOUBLER BENEFITS

• Using higher voltage increases available headroom
• Produces more dynamic response and clarity
• Improves brightness and top-end detail
• Reduces excessive compression for a more natural sound

SPECIFICATIONS

• Dimensions (W/D/H): 3.5" x 1.5" x 1.5" (89mm x 38mm x 38mm)
• Weight: 0.57 lbs (260g)
• Bypass: True Bypass Switching
• Power Consumption: 9VDC / 5mA
• Battery Type: 9V (006P) x1
• AC Adapter (Optional): 9VDC–18VDC, Negative Tip (regulated recommended)
• Input Impedance: 1M ohm
• Output Impedance: 10k ohm
• Nominal Input Signal Level: -20dB (100mVrms)

IDEAL FOR

• Guitarists seeking studio-quality compression in a compact pedal
• Players wanting both vintage and modern compression tones
• Pedalboard setups that require flexible dynamic control
• Musicians who want transparent sustain without losing natural playing feel
