Neural DSP Nano Cortex

Neural DSP Nano Cortex®

The Nano Cortex offers Neural Capture and a comprehensive signal chain in an ultra-compact form factor. With it,  you can create Neural Captures on-device (without needing to connect to an app or a computer) in under 5 minutes at the same resolution as the Quad Cortex.

Play Anywhere - NanOS 2.0.0 - Available Now!

Massive NanOS 2.0.0 update now available.

NanOS 2.0.0 unlocks the full potential of Nano Cortex with a dramatically expanded effects library, a fully customisable signal chain, and features that make it easier than ever to play anywhere, with zero compromise on tone or flexibility.

What’s new in 2.0.0:

• 47 new effects and utilities

• Fully customisable Pre and Post Effect Slots

• Built-in input gate - eliminates noise without using a Slot

• Global Cab Bypass

An ultra-powerful rig - In the palm of your hand

Nano Cortex delivers studio-grade sound, a fully customizable signal chain, a complete suite of effects, and the revolutionary Neural Capture technology - all in a compact, ultra-portable pedal. Whether you’re on stage, in the studio, or anywhere in between, your perfect tone is always within reach.

• Ultra-Compact Design: Pack a full guitar or bass rig into a pedal that fits in the palm of your hand! Measuring just 14.4 x 10.3 x 6.2 cm (5.6 x 4.0 x 2.4”) and weighing only 620g (1.36 lbs), the Nano Cortex is the perfect blend of power and portability.

• Cortex Cloud Integration: Access thousands of Neural Captures from artists and the community, manage your presets, and update firmware wirelessly via Bluetooth.

• Comprehensive Signal Chain: Customize your sound with seven device blocks, including Adaptive Gate, Transpose, Chorus, Analog Delay, Mind Hall Reverb, a Neural Capture block, and an advanced IR loader. With 64 Preset slots and gapless switching, the Nano Cortex offers virtually limitless performance options.

• Versatility and Connectivity: Ideal for any genre or playing style, this device functions as a fully-fledged audio interface with USB-C, providing 24-bit, 48kHz recording with low latency. It includes 1 input, dual 1/4" TRS outputs, a 3.5mm headphone output, and TRS expression & MIDI input.

• Intuitive and Beginner-Friendly: Simple controls and the Cortex Cloud companion app make it easy for users of all skill levels to navigate.

Product Features:

• Advanced IR Loader with ten premium-quality IRs, including five mic options and six mic positions. Load up to 256 custom IRs.

• Adaptive Gate & Transpose for clean signal and on-the-fly tuning adjustments.

• Bluetooth Connectivity for managing presets and firmware updates.

• Built-In Tuner to keep you perfectly in tune.

Included in the Box:

• Nano Cortex pedal

• USB-C cable

Nano Cortex hardware specifications

Instrument input

Connector: 1/4 TRS-F
Impedance: 1MΩ
Max input level: +10dBu

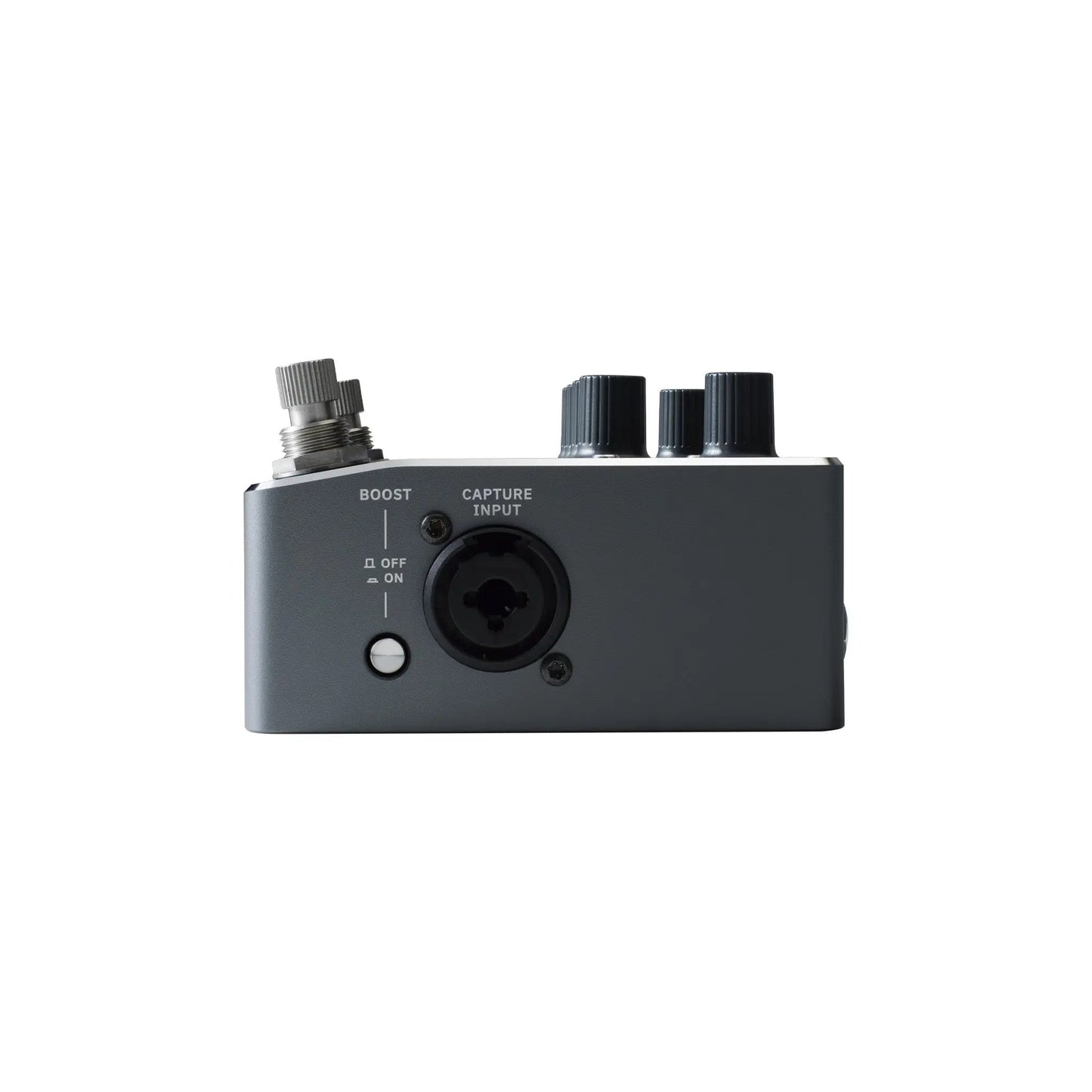

Combo capture input

Connector: XLR-F + 1/4 TRS-F
TS impedance: 1MΩ
XLR impedance: 45kΩ
Max input level: +10dBu
Boost gain: +26dB

TRS outputs 1L/2R

Connector: (2) 1/4 TRS-F
Impedance: 560Ω
Max output level: +10dBu (unbalanced) / +16dBu (balanced)

Headphones output

Connector: 3.5mm TRS-F
Max output power: 55mW into 20Ω

EXP/MIDI inputs

Expression connector: 1/4 TRS-F
MIDI connector: MIDI TRS type A

USB audio

Format: USB audio class 2.0 compliant
Channels: 7 (4 in / 3 out)
Audio clock: 48 kHz (fixed)

General

Finish: Anodized aluminum unibody
Controls:

• 2 stainless steel stomp + rotary footswitches

• 7 knobs

• 2 analog switches

• 5 digital switches

Dimensions: 14.4 x 10.3 x 6.2 cm / 5.6 x 4.0 x 2.4"

Weight: 620g / 1.36 lbs

Input voltage

9-12V DC 600mA (center negative)
USB-C 5V, 1.5A or higher

Environmental information

Operating temp: 0 to 50 °C (32 to 122 °F)
Storage temp: -10 to 70 °C (14 to 158 °F)
Humidity: Maximum non-condensing
