Positive Grid CAB-Pearl

Positive Grid CAB-Pearl

140-Watt Class D Powered FRFR Speaker Cabinet

140-Watt powered guitar amp speaker cabinet optimized to work seamlessly with Spark Series amps,¹ as well as other modelers, instruments or amps.² Versatile, high-quality sound for live performances, recording sessions and home practice.

SPECS

AUDIO SPECIFICATIONS

FREQUENCY RANGE
45-20,000 Hz
STEREO/MONO
MONO

MAXIMUM SOUND PRESSURE LEVEL
117 dB (RMS), 120 dB (Peak)

CABINET PRINCIPLE
Bass Reflex

POWER AMPLIFIERS
140W (RMS), 400W (Peak) Class D

SPEAKERS
1x10-inch woofer, 2x1-inch (25mm) tweeter

TOTAL IMPEDANCE
4 ohms

CONTROLS AND CONNECTIVITY

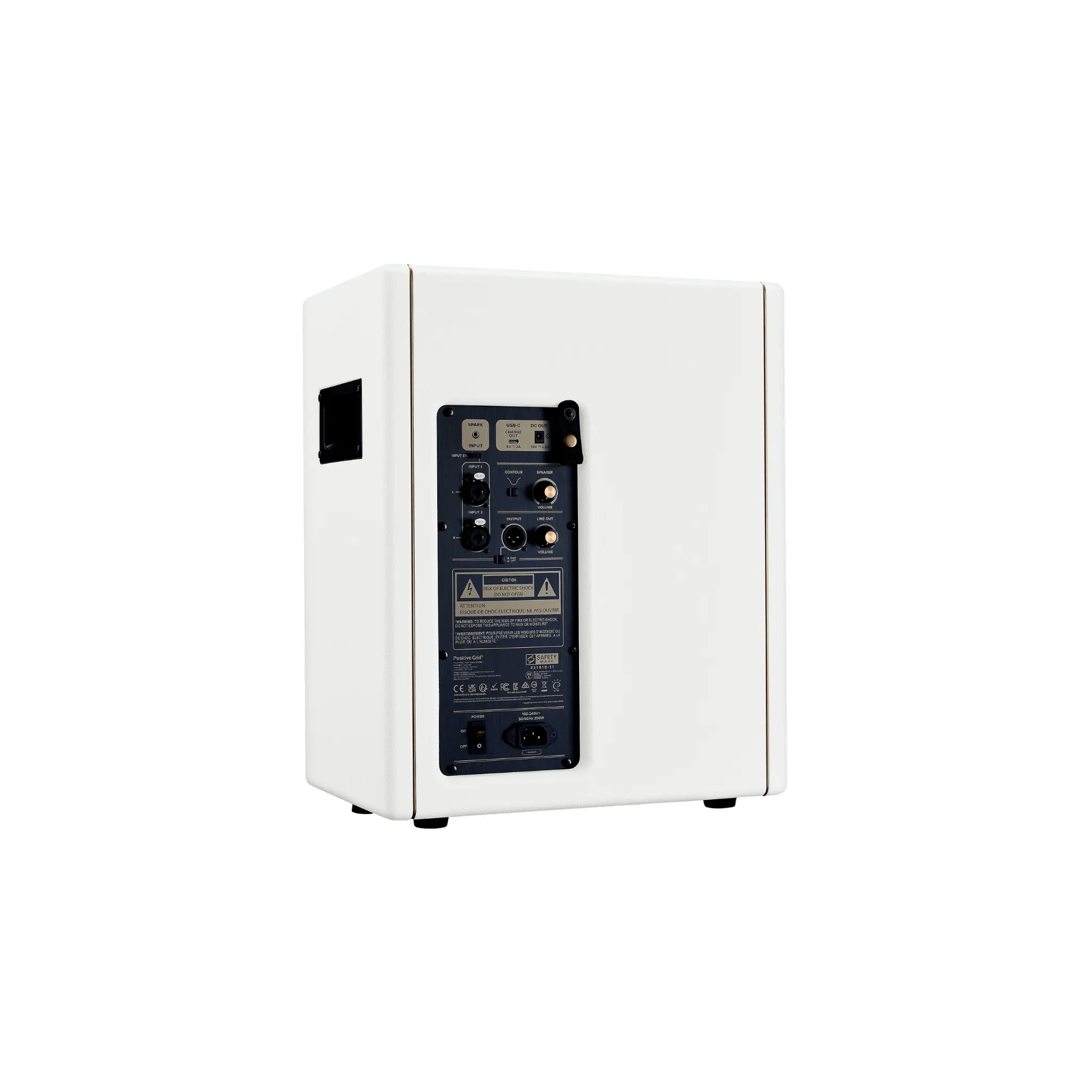

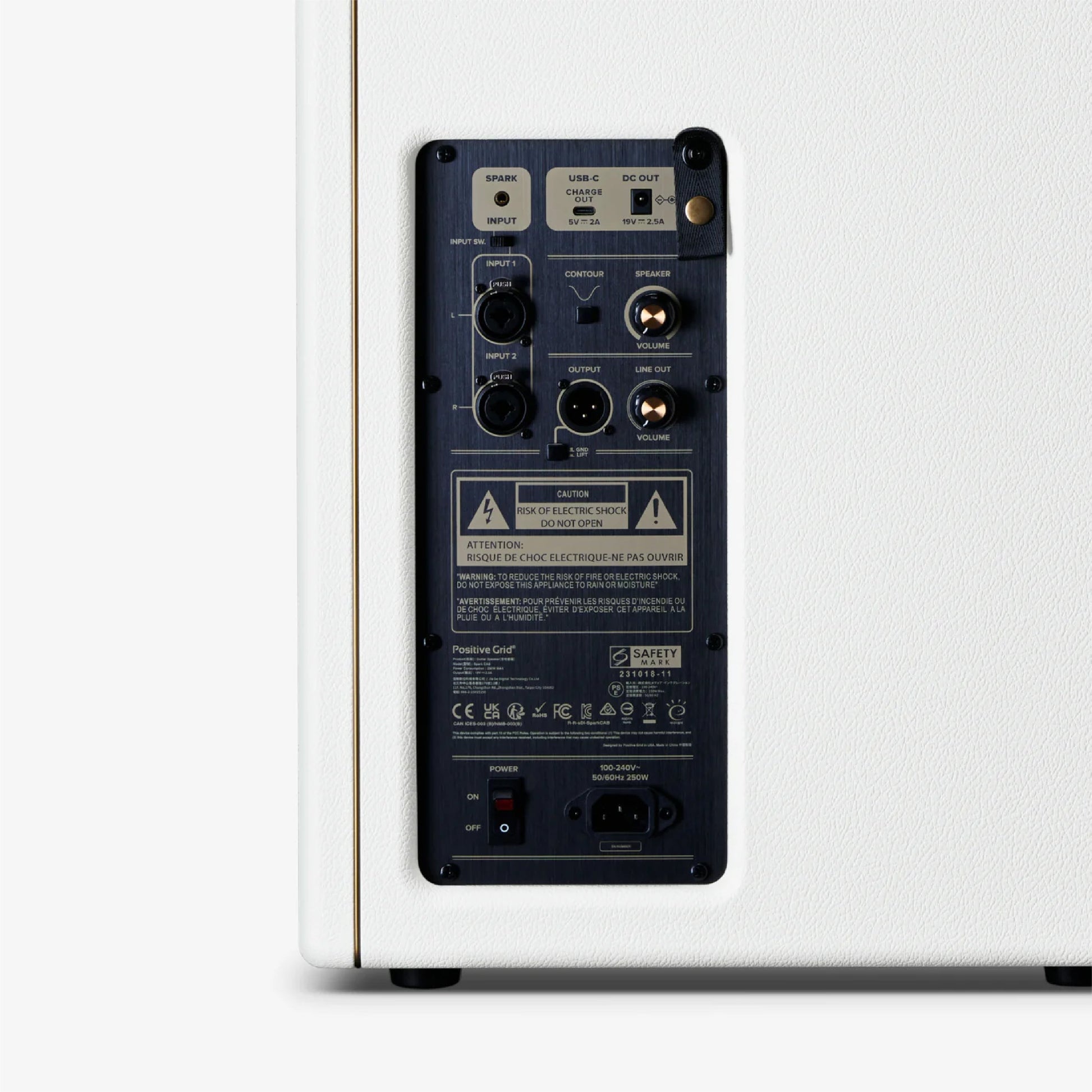

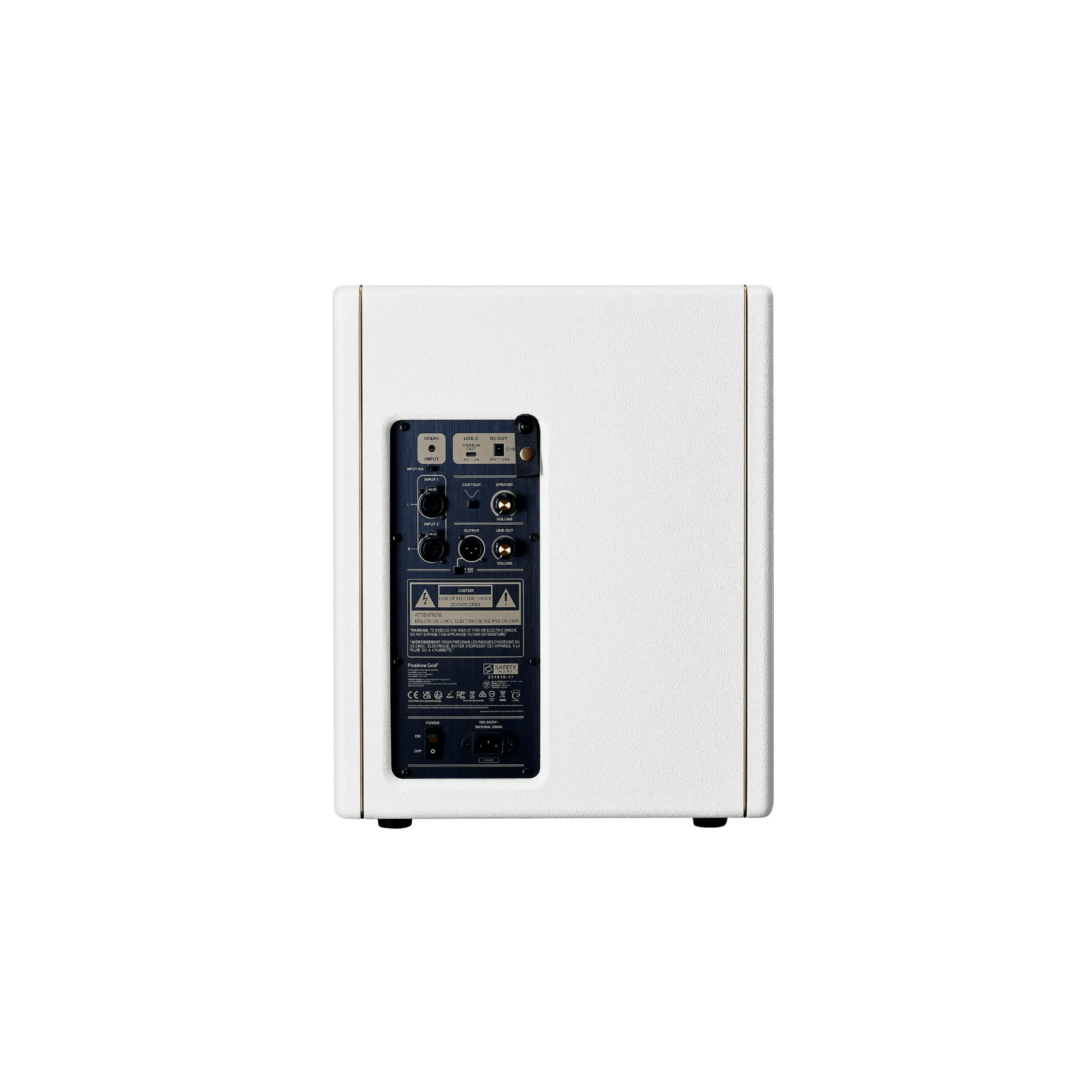

BACK PANEL CONTROLS
Input Selector - Switch between the 3.5 mm Spark Input and the two mono XLR/TRS Combo Inputs
Speaker Volume
Line Out Volume
Ground Lift Switch
Contour Switch - Boosts low and high frequencies to improve balance at low volumes

WIRED CONNECTIVITY
1 x 1/8" dedicated stereo Input for Spark Amp
2 x mono XLR/TRS combo inputs
1 x mono XLR balanced output

PHYSICAL UNIT

DIMENSIONS
492.5 x 399.8 x 255 mm (with rubber feet) (19.39 x 15.74 x 10.04 in)

WEIGHT
13.5 kg
29.76 lbs

GRILLE CLOTH
Woven

Handle
2 recessed speaker handles on the sides

Cable Tie
1 adjustable cable tie for fixing instrument and audio cables on the back

INCLUDED IN THE BOX

BOX CONTENTS
3.5mm stereo audio cable for Spark amps
DC power cable for Spark
Power cord
Quick Start Guide
Safety Instructions Card

POWER

MAIN INPUT POWER
AC 100-240V

DC POWER OUTPUT For Spark
DC 19V/2.5A

USB-C POWER OUTPUT For Spark MINI & GO
DC 5V/2A
