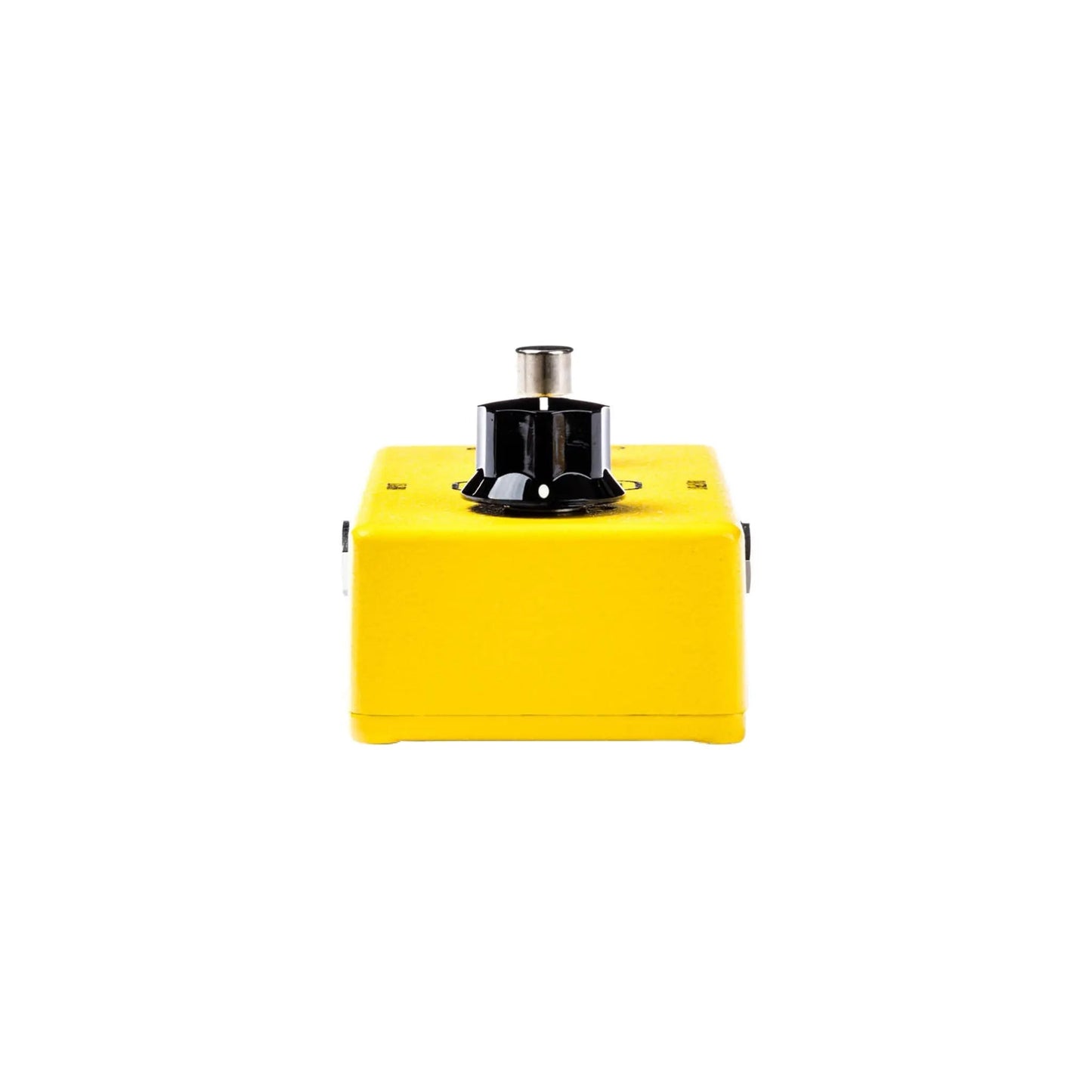

MXR MXR MICRO CHORUS-EA

MXR® MICRO CHORUS

M148

The Micro Chorus allows you to quickly dial up a stunning range of old-school bucket-brigade chorus sounds with a single Rate control.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

THE LONG STORY

With its simple operation and stellar analog tone—the MXR Micro Chorus joins the ranks of MXR Classics such as the Phase 90, Dyna Comp Compressor, and the Micro Amp. This '80s reissue delivers a stunning range of rich chorus sounds, from sparkly watery shimmers to intense rotating speaker simulation with a twist of the Rate control. The Micro Chorus is designed with old-school bucket brigade technology for warm analog tone and features true bypass for pure guitar tone when the pedal is off. Its road-worthy hardware and components are housed in a space saving Phase 90 sized box.

DESCRIPTION

Adds rich chorus textures, from sparkly watery shimmers to intense rotating speaker simulation • All analog circuitry with bucket brigade technology for warm analog tone • True bypass with LED • Joins the ranks of MXR Classics such as the Phase 90, Dyna Comp and Micro Amp

DIRECTIONS

Run a cable from your guitar to the Micro Chorus’ INPUT jack and run another cable from the Micro Chorus’ OUTPUT jack to your amplifier. • Turn the Micro Chorus effect on by depressing the footswitch; the red LED will illuminate, indicating that the effect is activated. • Turn the RATE knob clockwise to increase the chorus speed towards a watery shimmer, counterclockwise for a slower rotating sound

SPECIFICATIONS

Input Impedance 1 MΩ

Output Impedance 1 kΩ, 1 kHz

Max Input Level -5 dBV, 500Hz

Max Output Level +8 dBV

Rate Control 0.25 Hz, 7.5 Hz

Noise Floor* -89 dBV

Delay Time 4.2 ms, 6.8 ms

Frequency Response Delayed Signal 20 Hz to 4.5 kHz Dry Signal 20 Hz to 20 kHz

Current Draw 5 mA Power Supply 9 volt DC
