PRODUCT DETAILS

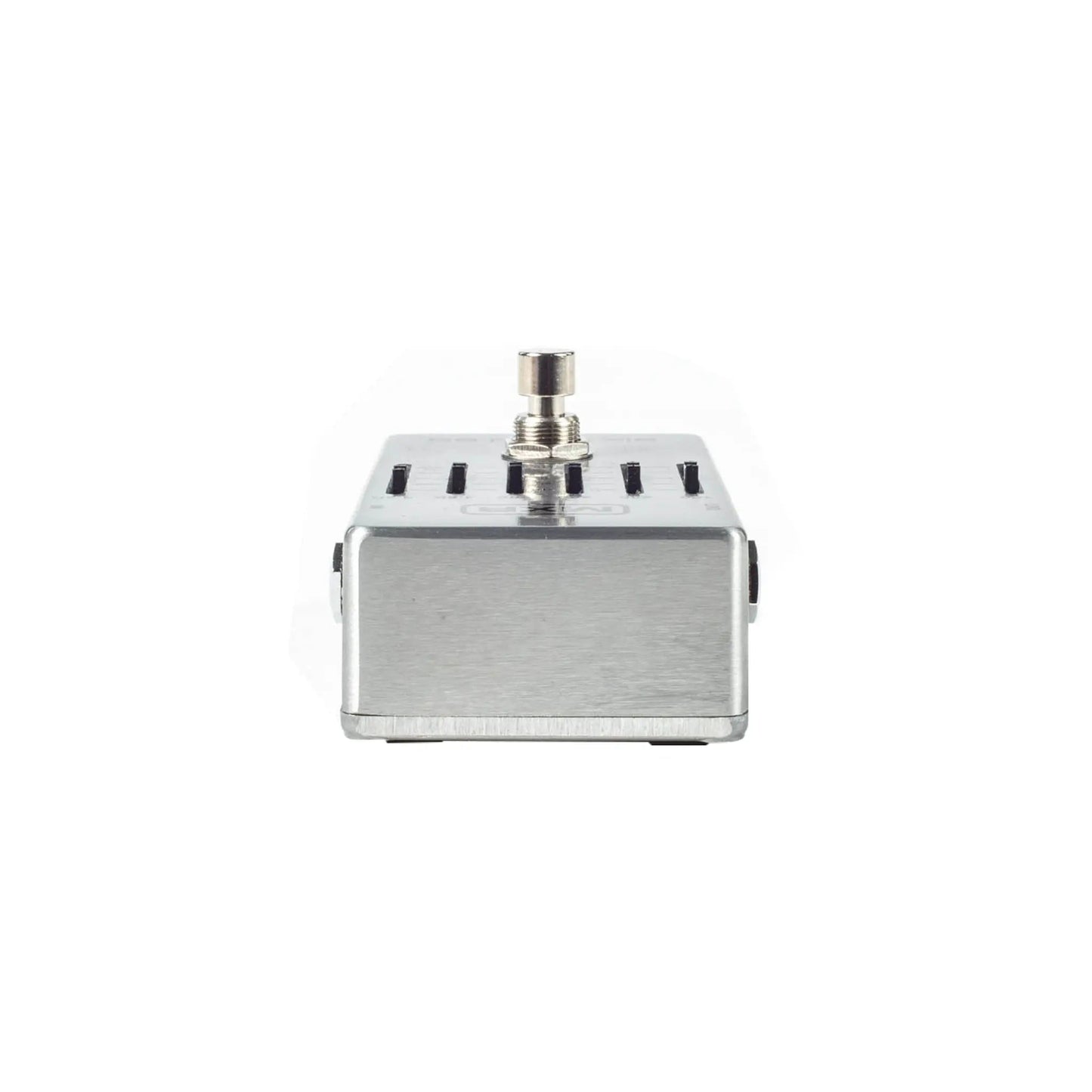

MXR® SIX BAND EQ
M109S
The MXR Six Band EQ covers all the essential guitar frequencies and has been upgraded with noise-reduction circuitry, true bypass switching, brighter LEDs for increased visibility, and a lightweight aluminum housing.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
THE LONG STORY
The MXR Six Band EQ has been upgraded with noise-reduction circuitry, true bypass switching, brighter LEDs for increased visibility, and a lightweight aluminum housing. It covers all the essential guitar frequencies, with each slider ready to deliver +/-18dB of cut or boost for incredible control over your sound. The Six Band EQ can create scooped-mid rhythm tones with massive low end, add natural sounding warmth to a quacky acoustic pickup, eliminate onstage feed-back, and much more. You can also use the Six Band EQ in the effects loop of your amp for a huge, sculptable lead boost.
DIRECTIONS
Run a cable from your guitar to the M109S’s INPUT jack and run another cable from the M109B’s OUTPUT jack to your amplifier. • Set all sliders to their 0dB position and depress the footswitch to turn the pedal on. • Move individual sliders up to boost or down to cut associated frequency by up to ±18dB
SPECIFICATIONS
Input Impedance 470 kΩ
Output Impedance 5 kΩ
Max Input Level All Sliders at 0 dB +14 dBV at 1 kHz
Max Output Level All Sliders at 0 dB +14 dBV at 1 kHz
Frequency Response ±1 dB,20 Hz to 20 kHz
Noise Floor* -101.7dBv Filtering ±18db at: 100,200, 400, 800, 1.6K, 3.2K ±18dB shelf at 16kHz Bypass True Hardwire Current Draw 14.5 m
