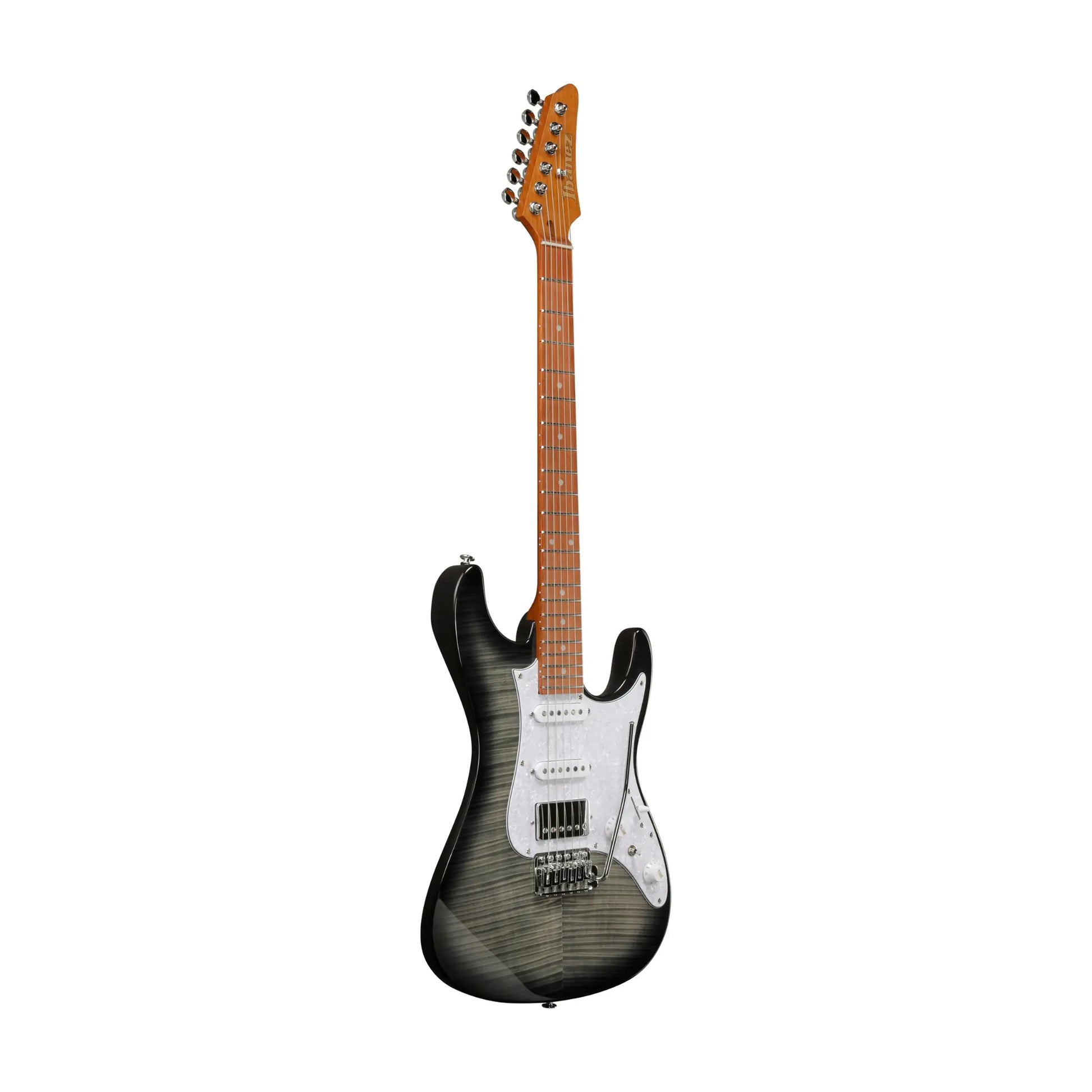

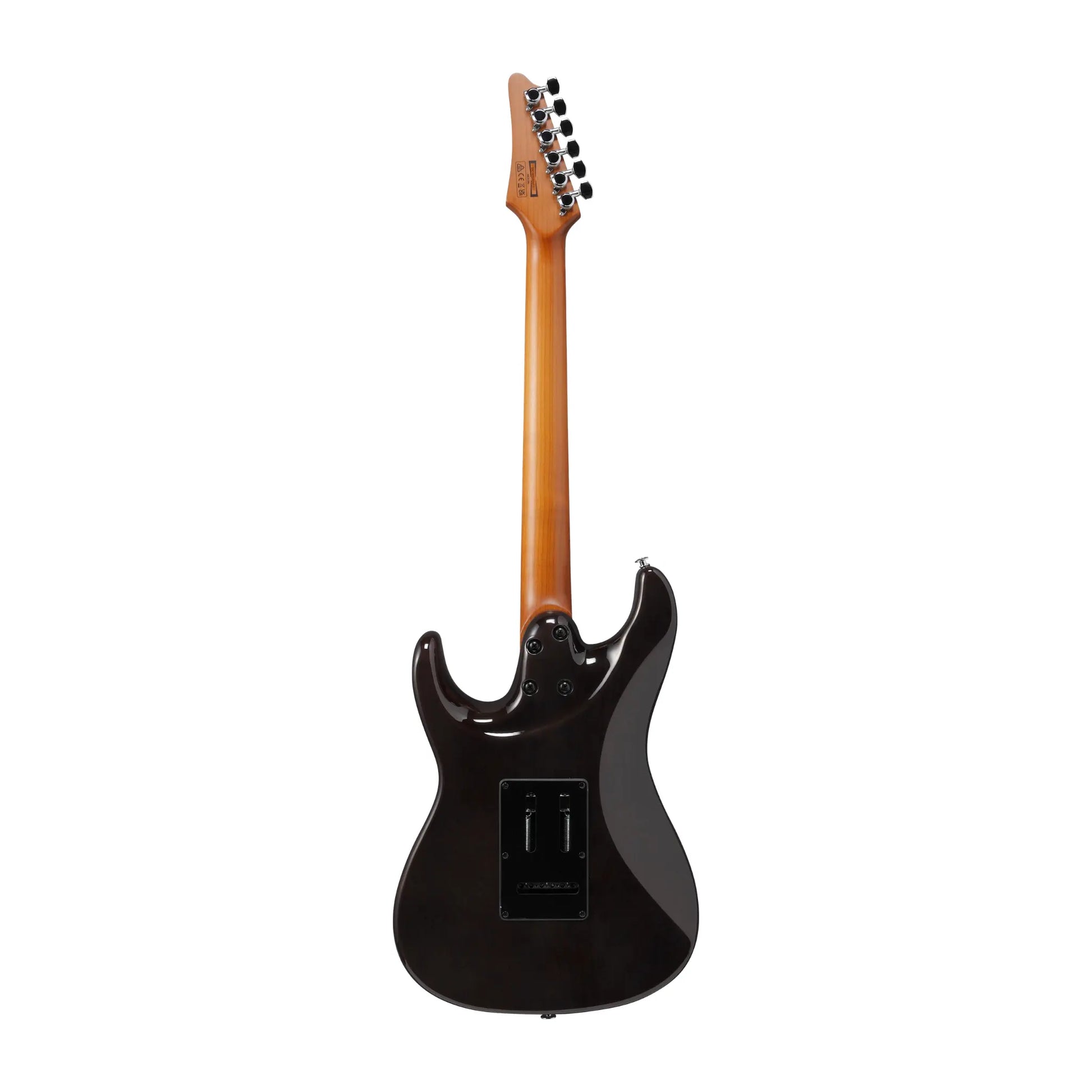

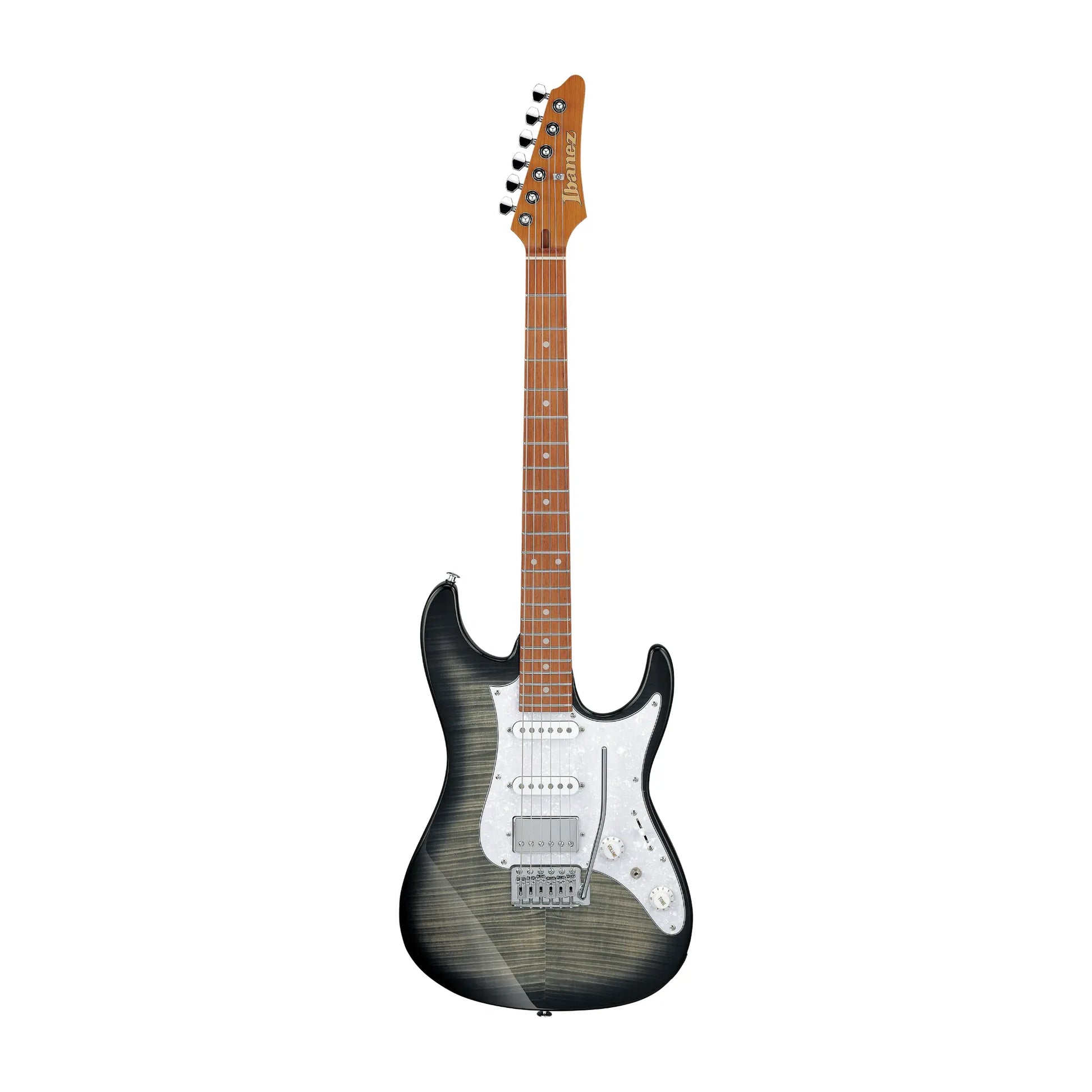

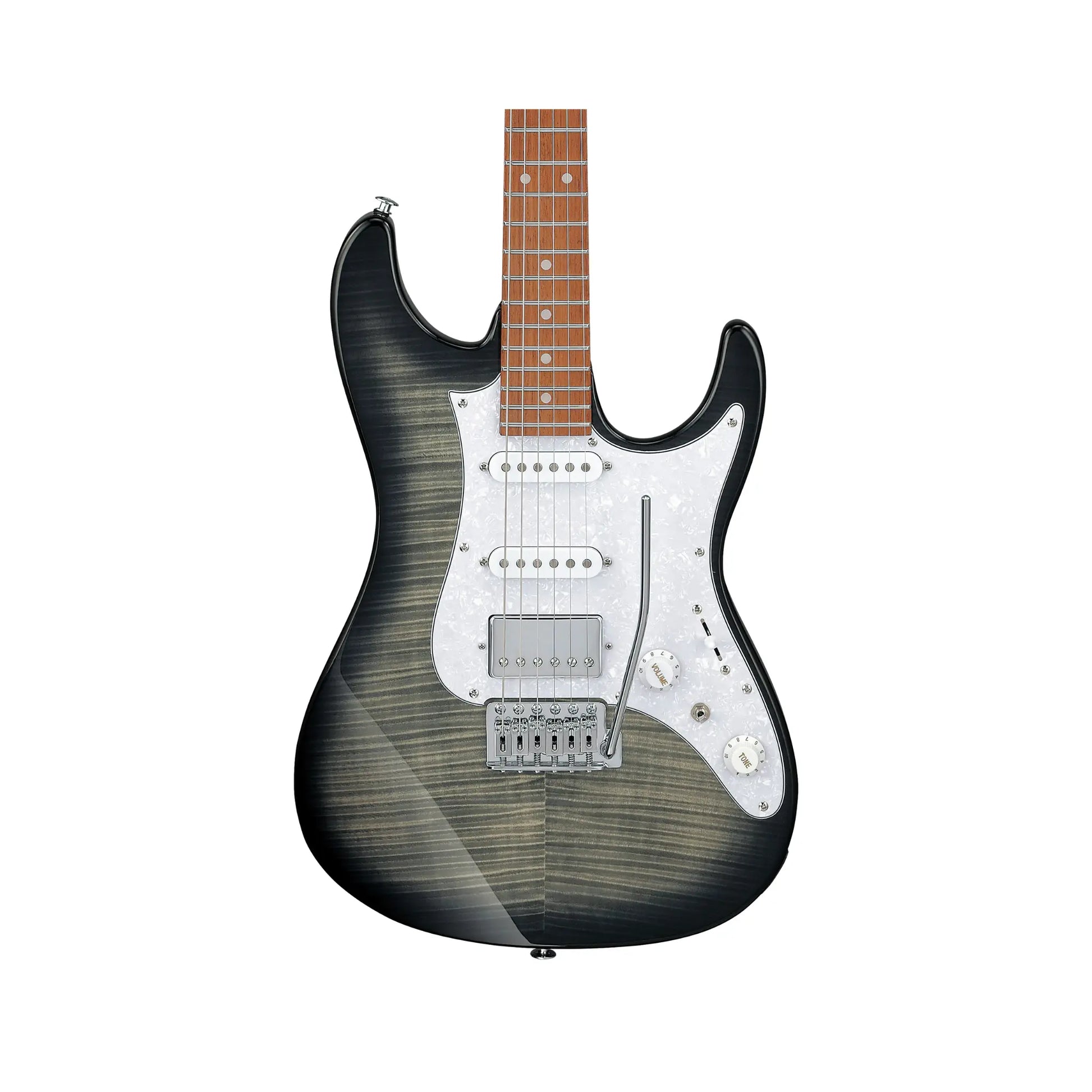

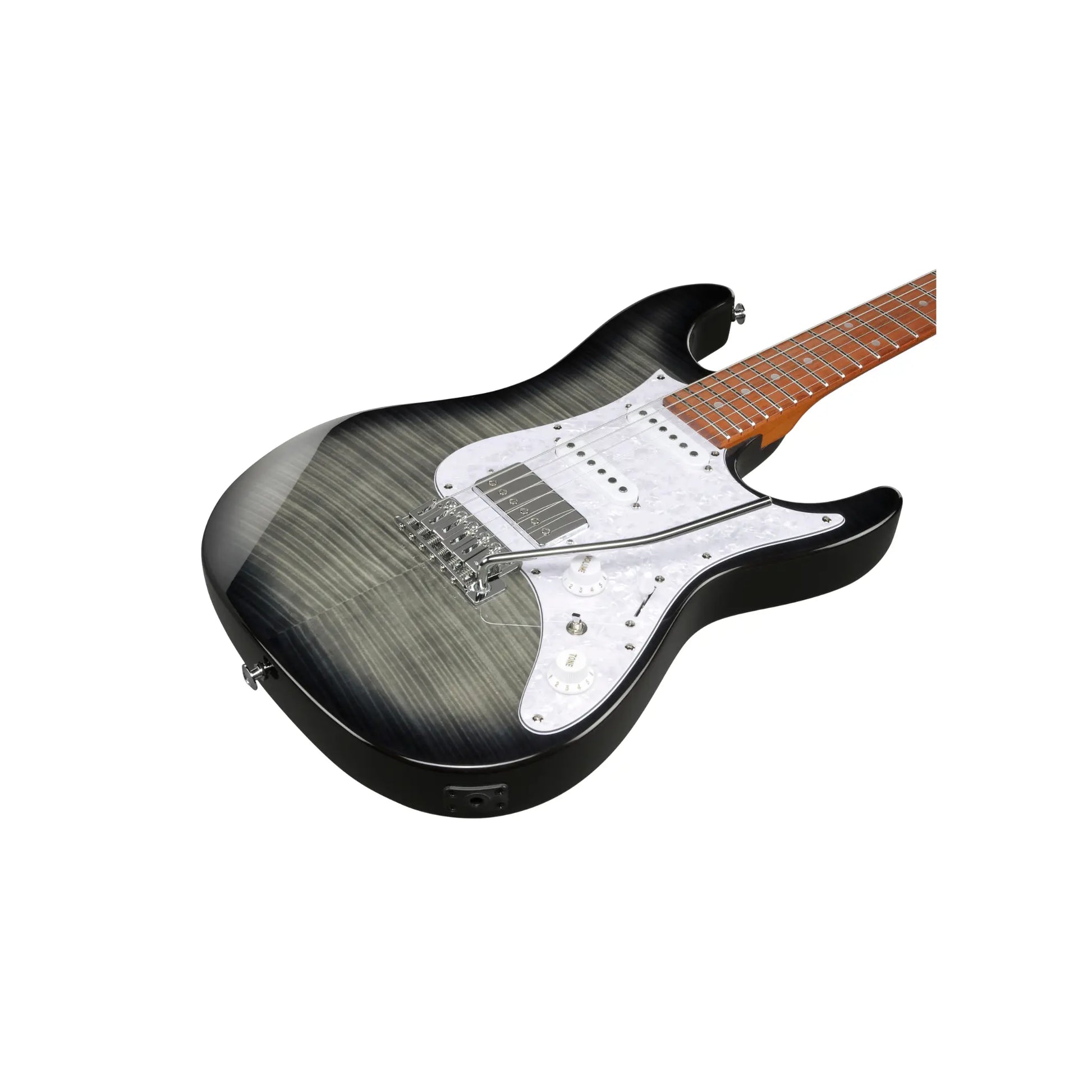

The Ibanez AZ22S1F-TKS combines modern playability, premium tonewoods, and versatile electronics in one sophisticated instrument. Featuring a flamed maple top over an alder body, a roasted maple neck, and Ibanez Classic Custom pickups, this guitar delivers stunning aesthetics, articulate tone, and high-end craftsmanship.

The innovative dyna-MIX9 switching system with Alter Switch allows nine pickup configurations, including humbucker simulations from two single-coil pickups, offering unparalleled tonal flexibility for stage and studio use.

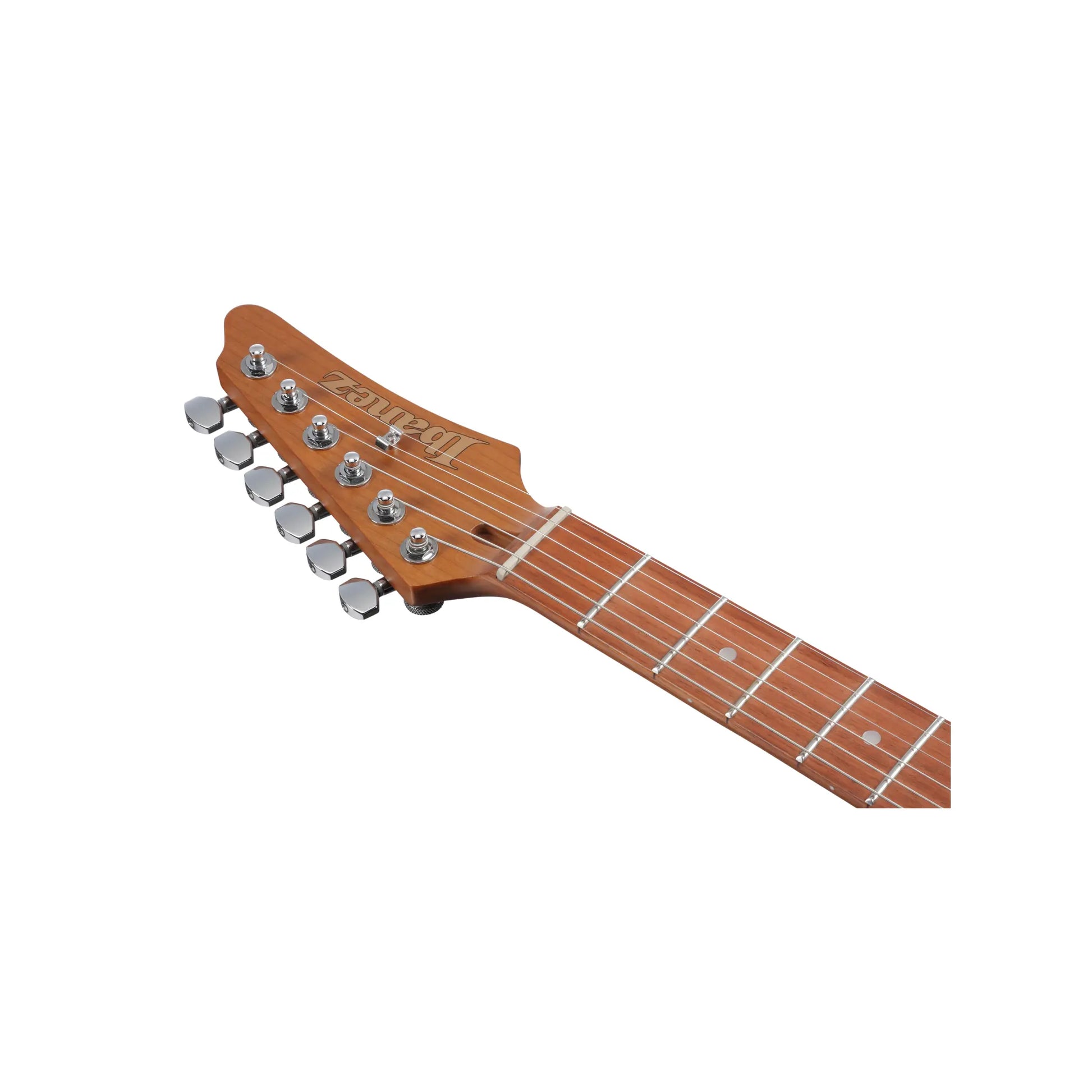

• Roasted Maple neck – heat-treated for stability and durability
• Jatoba fretboard with white dot inlays
• Jumbo stainless steel frets for smooth playability and durability
• Flamed Maple top / Alder body for bright, resonant tone
• Ibanez Classic Custom pickups: Alnico neck/middle, Ceramic bridge

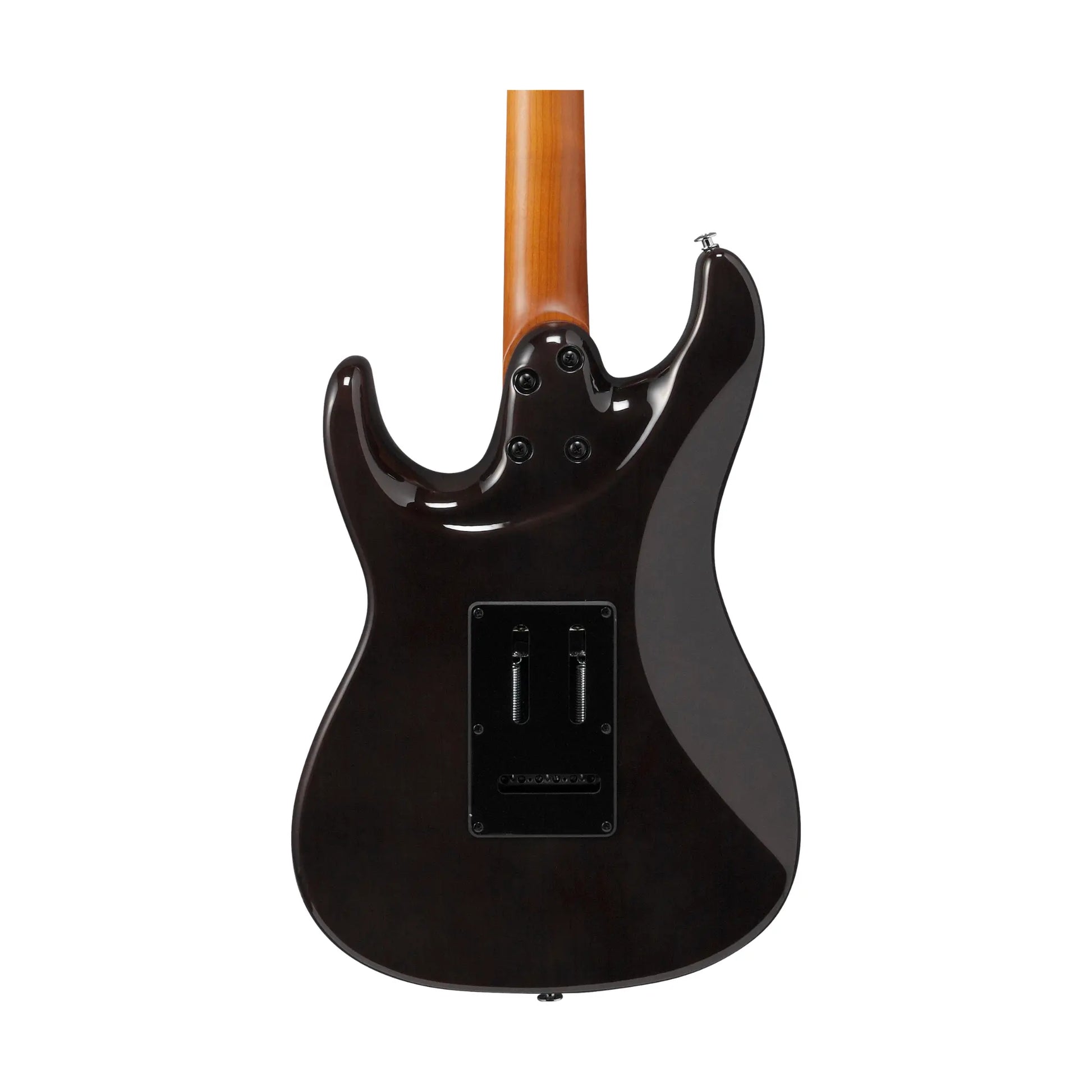

• T106 tremolo bridge for precise intonation

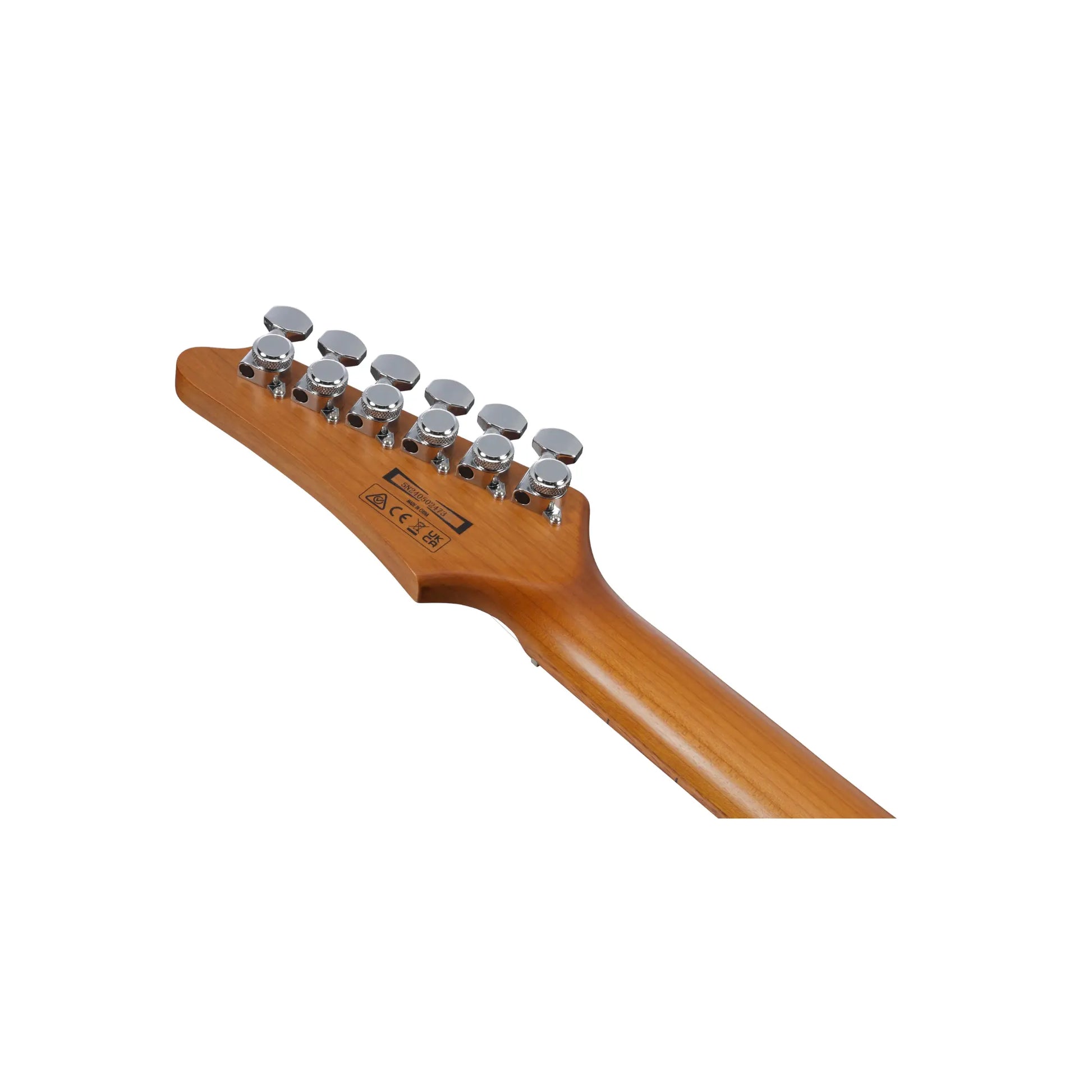

• Locking machine heads for stable tuning
• dyna-MIX9 switching system with Alter Switch for 9 sound variations

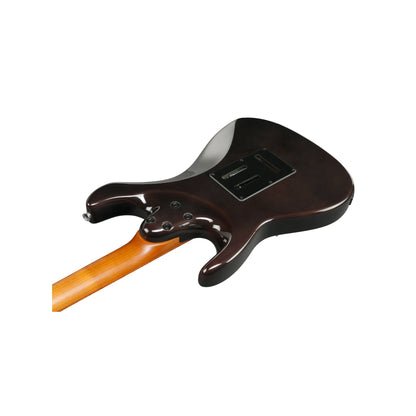

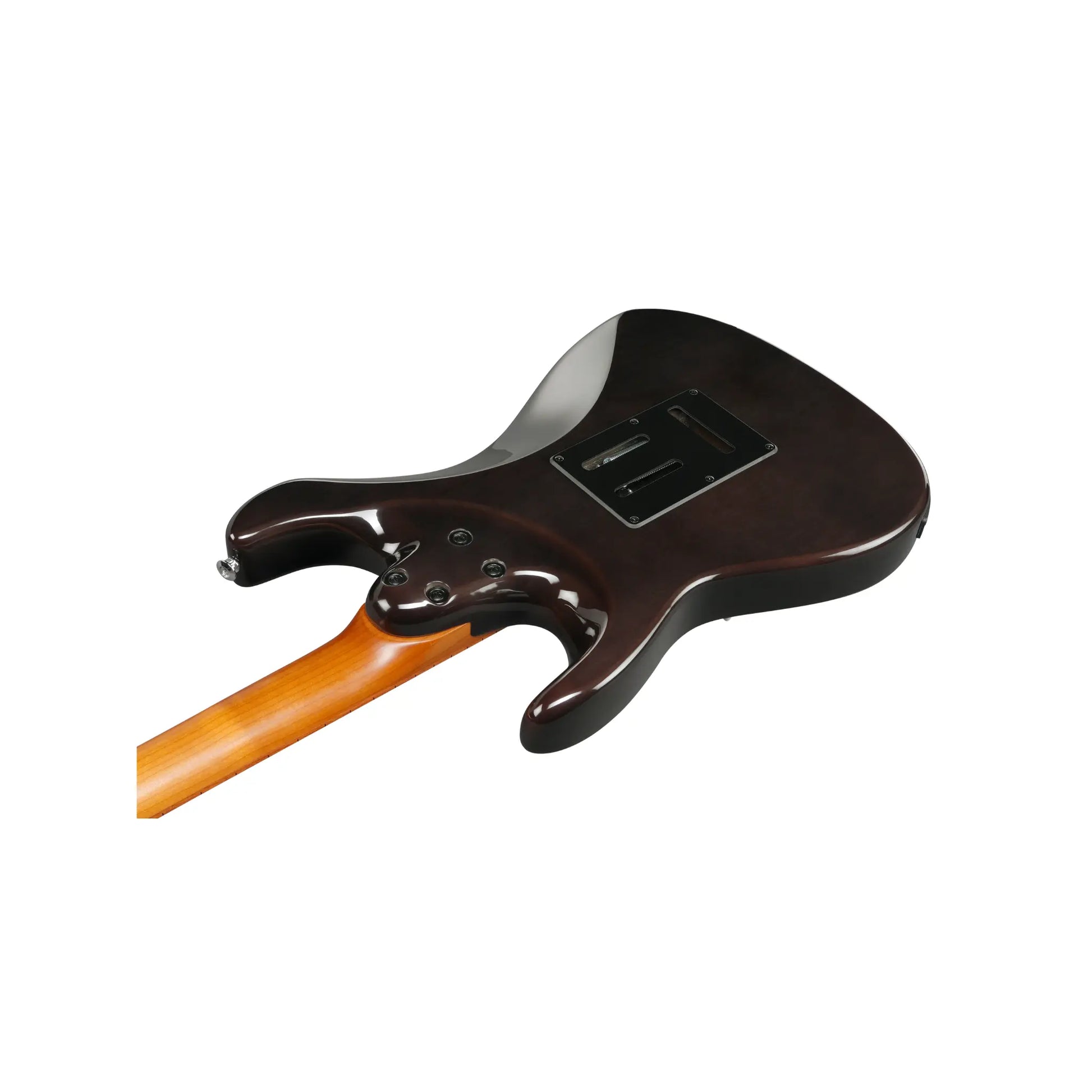

• Super All Access Neck Joint for comfortable upper fret access

• Neck Type: AZ Roasted Maple
• Top/Body: Flamed Maple Top / Alder Body
• Fretboard: Jatoba, White Dot Inlays
• Number of Frets: 22
• Bridge: T106 Tremolo
• String Space: 10.5 mm
• Factory Tuning: 1E,2B,3G,4D,5A,6E
• String Gauge: .010/.013/.017/.026/.036/.046
• Hardware Color: Chrome

• Scale Length: 648mm / 25.5"
• Width at Nut: 42 mm
• Width at 22nd Fret: 56.4 mm
• Thickness at 1st Fret: 20.5 mm
• Thickness at 12th Fret: 22.5 mm
• Fingerboard Radius: 305 mm R

Diagram Key: a = width at nut, b = width at fret, c = thickness at 1st fret, d = thickness at 12th fret, Radius = fingerboard radius

• Neck Pickup: Ibanez Classic Custom (S) – Passive/Alnico
• Middle Pickup: Ibanez Classic Custom (S) – Passive/Alnico
• Bridge Pickup: Ibanez Classic Custom (H) – Passive/Ceramic

The AZ22S1F’s dyna-MIX9 with Alter Switch provides 9 pickup configurations:

• Alter switch ON (two hum-tap mode): Neck + Middle pickups in series
• Alter switch OFF: Neck, Neck+Middle, Middle, Middle+Bridge, or Bridge selections
• Special series/parallel combinations simulate humbucker sounds from single-coil pickups

• One volume knob (above 5-way selector)
• One tone knob (closest to body end)
• 5-way pickup selector switch
• Alter switch located between volume and tone knobs

• Recommended Case: M300C
• Recommended Bag: IGB540-BK
• Super All Access Neck Joint for upper fret access
• Perfect for stage, studio, or professional performance
