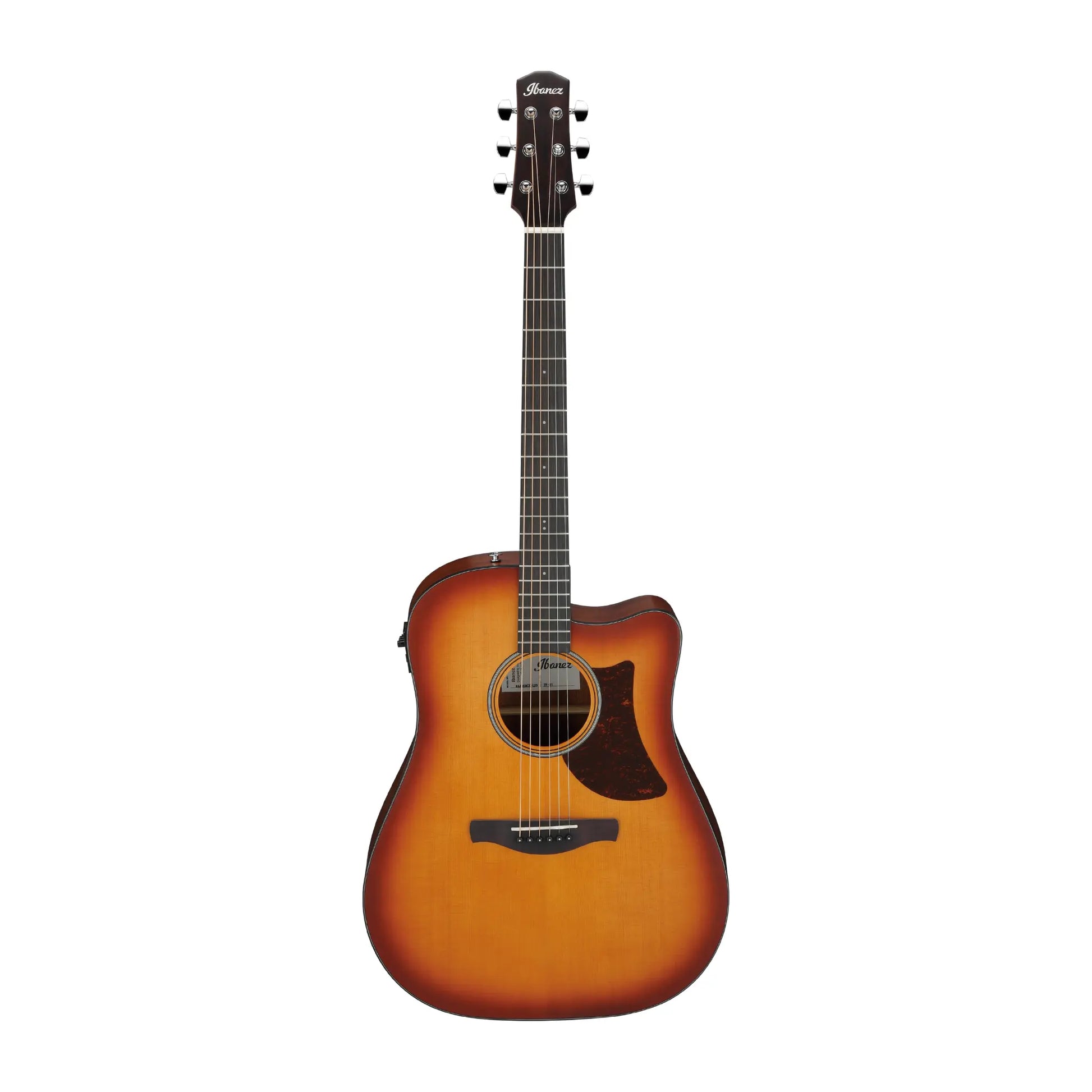

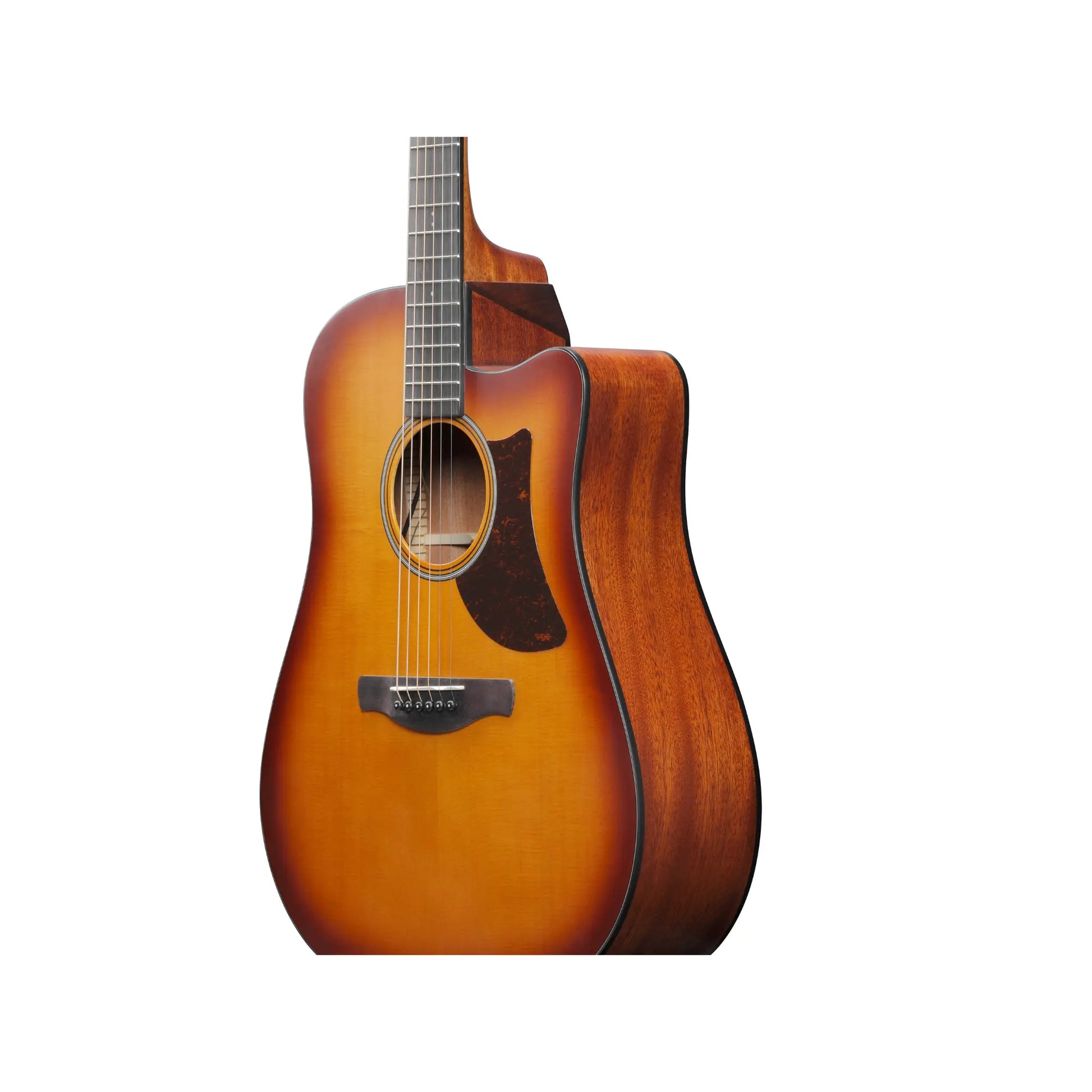

The Ibanez AAD50CE-LBS is part of Ibanez’s flagship Advanced Acoustic Series, designed to deliver maximum projection, rich tone, and exceptional playability. Featuring the newly engineered Grand Dreadnought body—5% larger than traditional dreadnoughts—it provides a powerful low end and dynamic full-range sound.

The combination of a Solid Sitka Spruce top, Sapele back and sides, and Ibanez’s X-M Bracing ensures clarity, warmth, and enhanced resonance. Equipped with the Ibanez T-bar Undersaddle pickup and AEQ-TP2 preamp with onboard tuner, this guitar is built for stage, studio, and inspiring everyday play.

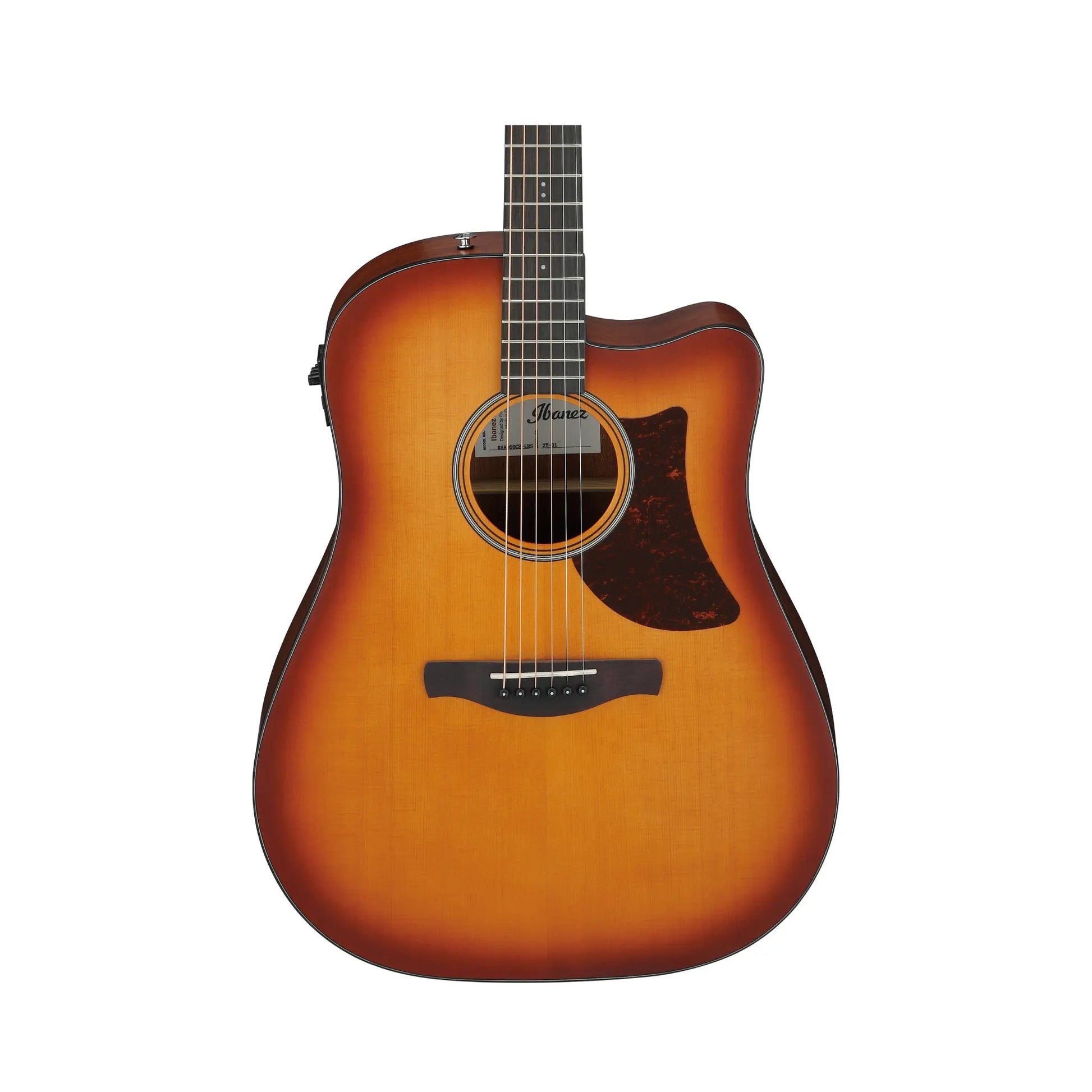

• Body Shape: Grand Dreadnought w/ Advanced Access Cutaway
• Top: Solid Sitka Spruce

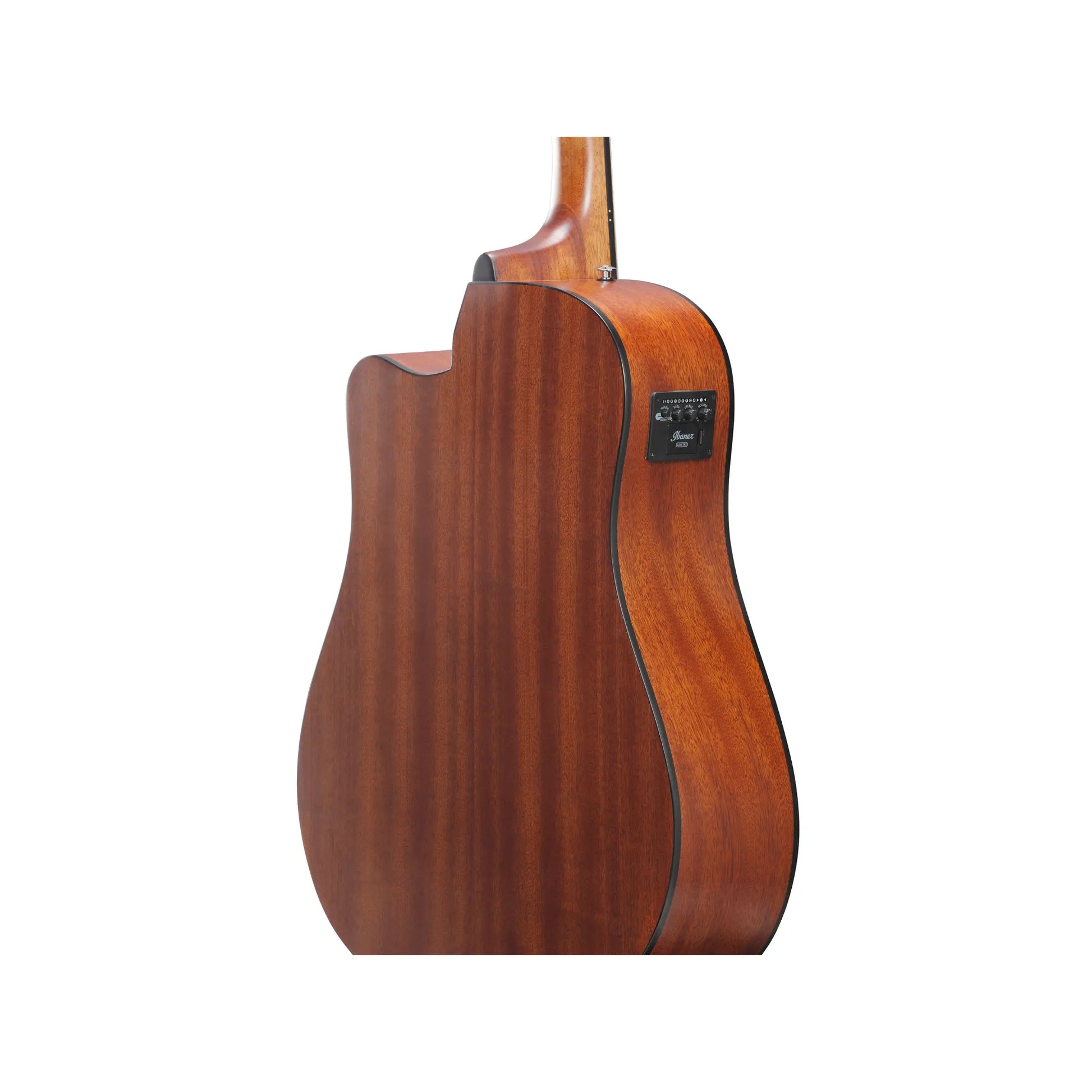

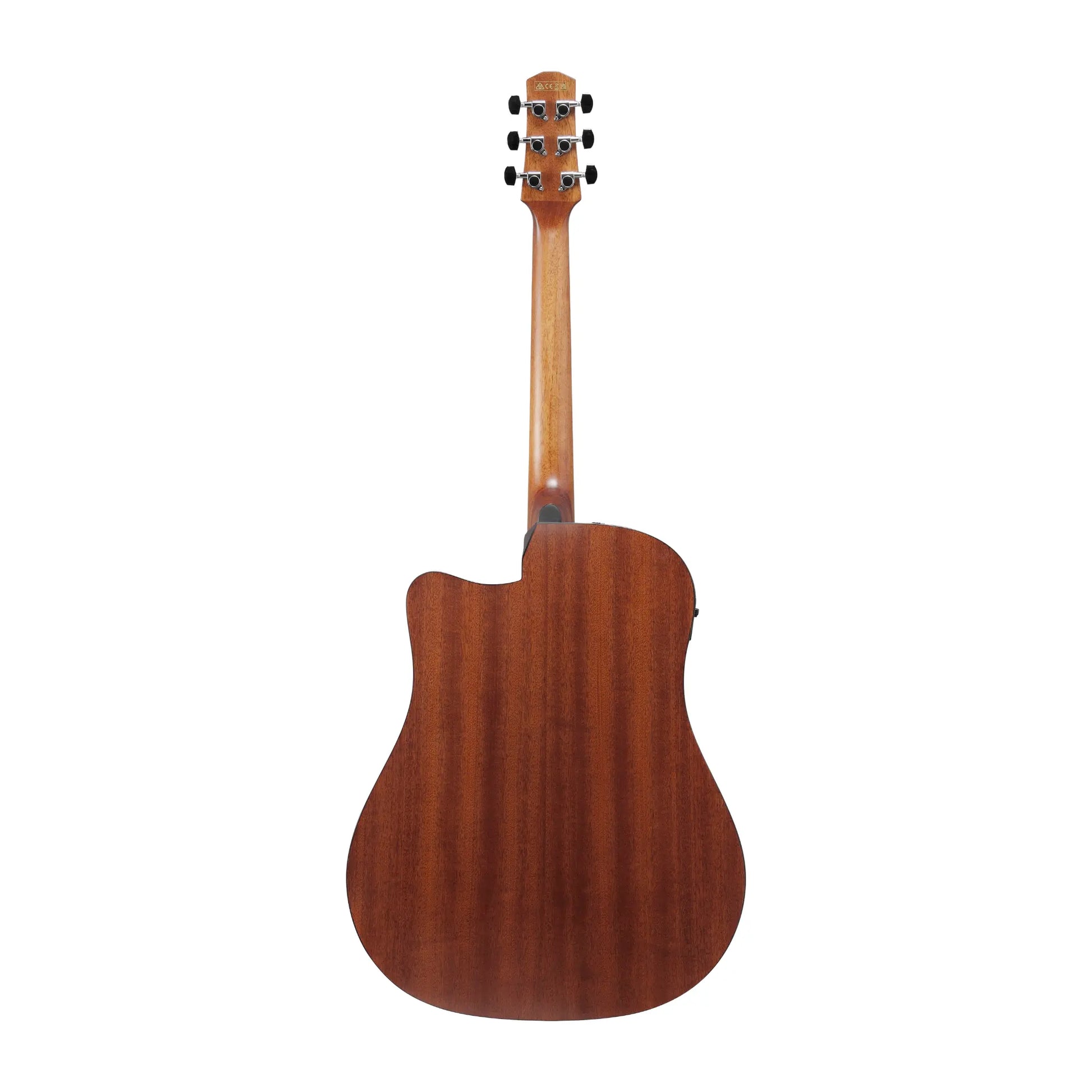

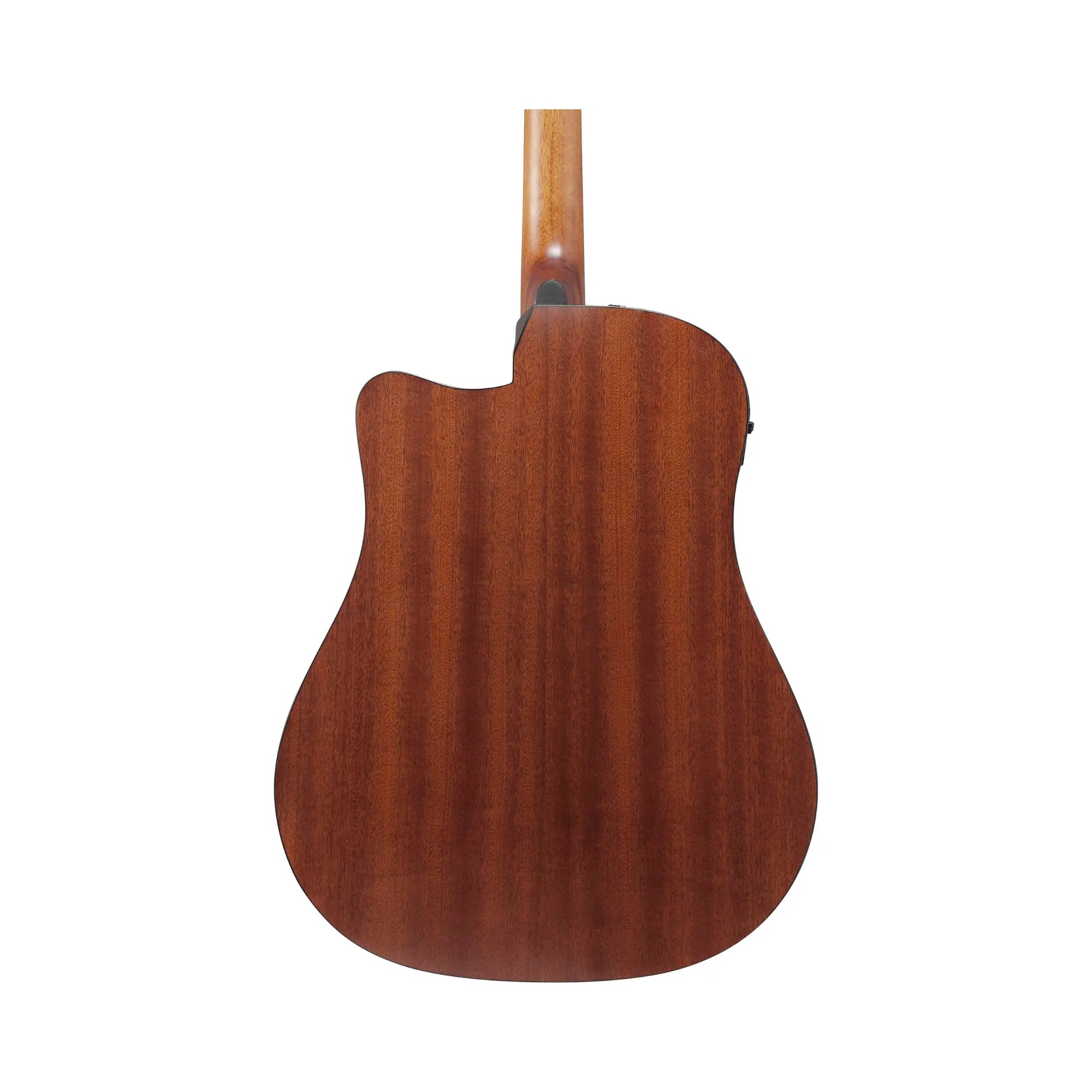

• Back & Sides: Sapele
• Bracing: X-M Bracing

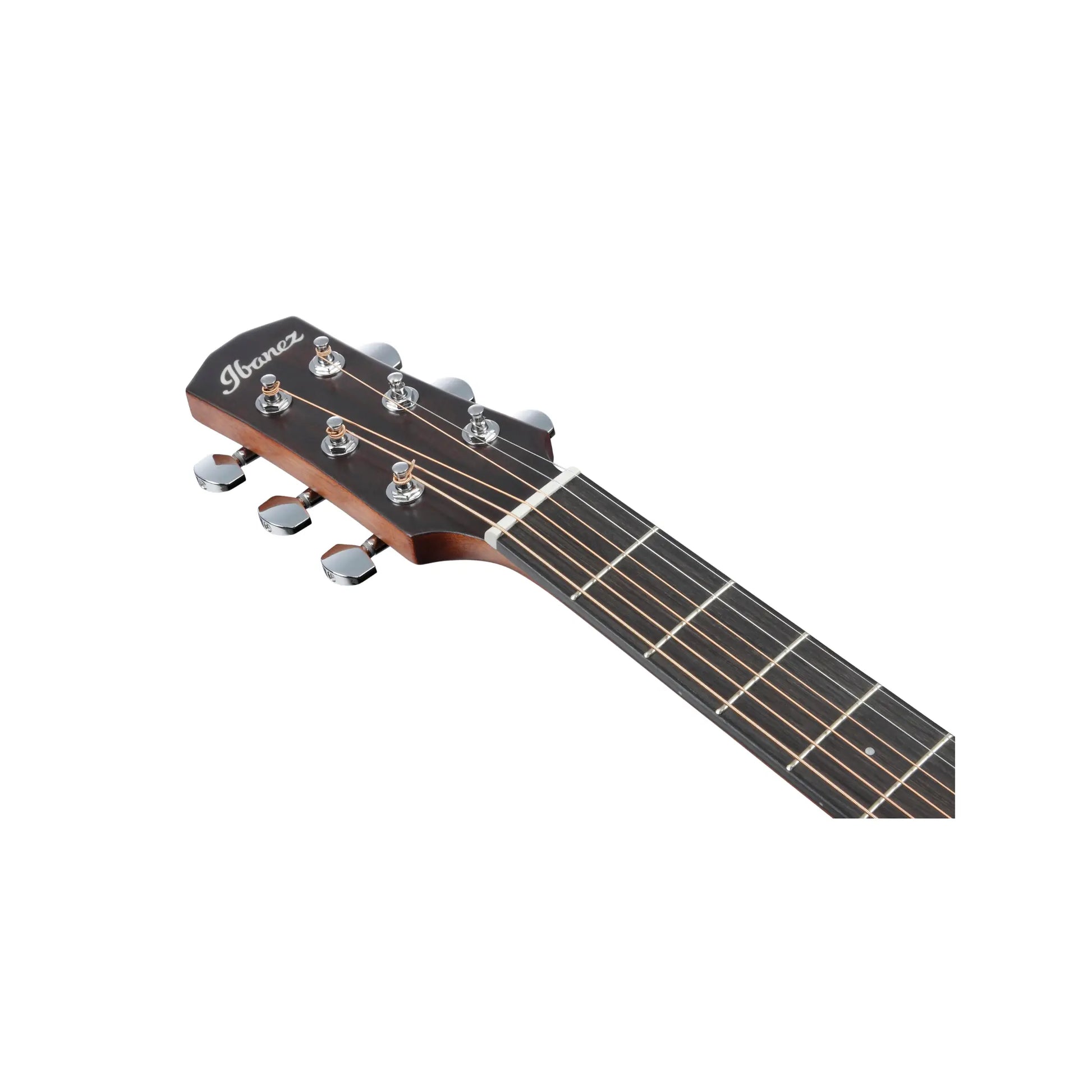

• Neck: AAD Okoume
• Fretboard: Purpleheart
• Bridge: Purpleheart
• Inlay: White Dot
• Rosette: Black & White Multi
• Frets: 20

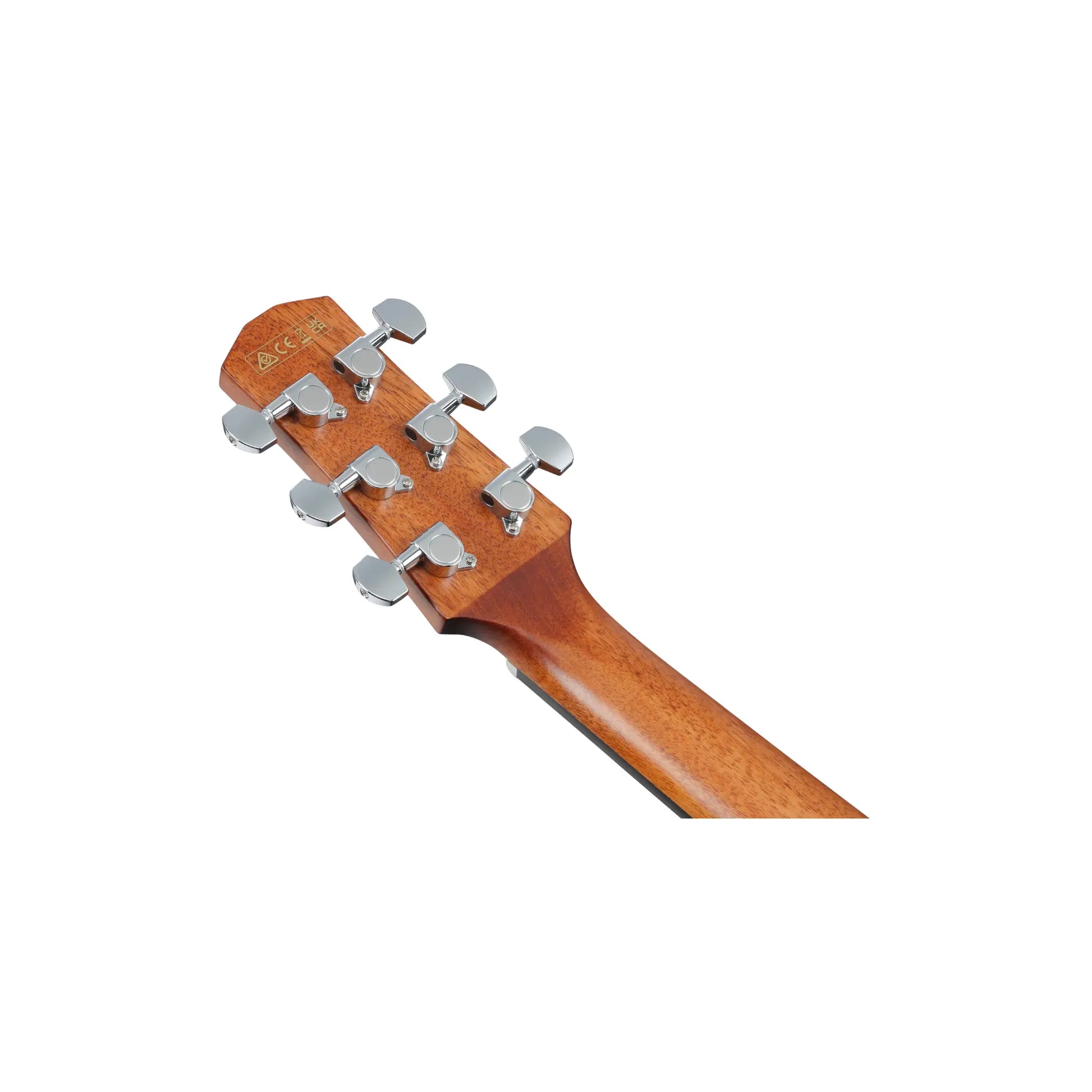

• Tuning Machines: Chrome Die-Cast (18:1)
• Bridge Pins: Ibanez Advantage™
• Factory Tuning: 1E,2B,3G,4D,5A,6E
• Strings: D'Addario® EXP16 (.012–.053)
• String Space: 11mm

• • Scale :
  • 650mm/25.6"
  • a : Width
  • 43mm at NUT
  • b : Width
  • 55mm at 14F
  • c : Thickness
  • 21mm at 1F
  • d : Thickness
  • 22mm at 7F
  • Radius :
  • 400mmR

•

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard

• • a : Length
  • 20 3/8"
  • b : Width
  • 16 1/4"
  • c : Max Depth
  • 5 "

•

  DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body

• Pickup: Ibanez T-bar Undersaddle

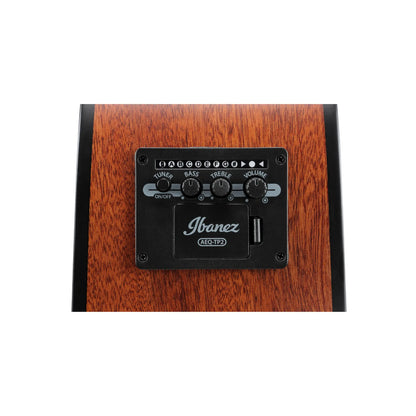

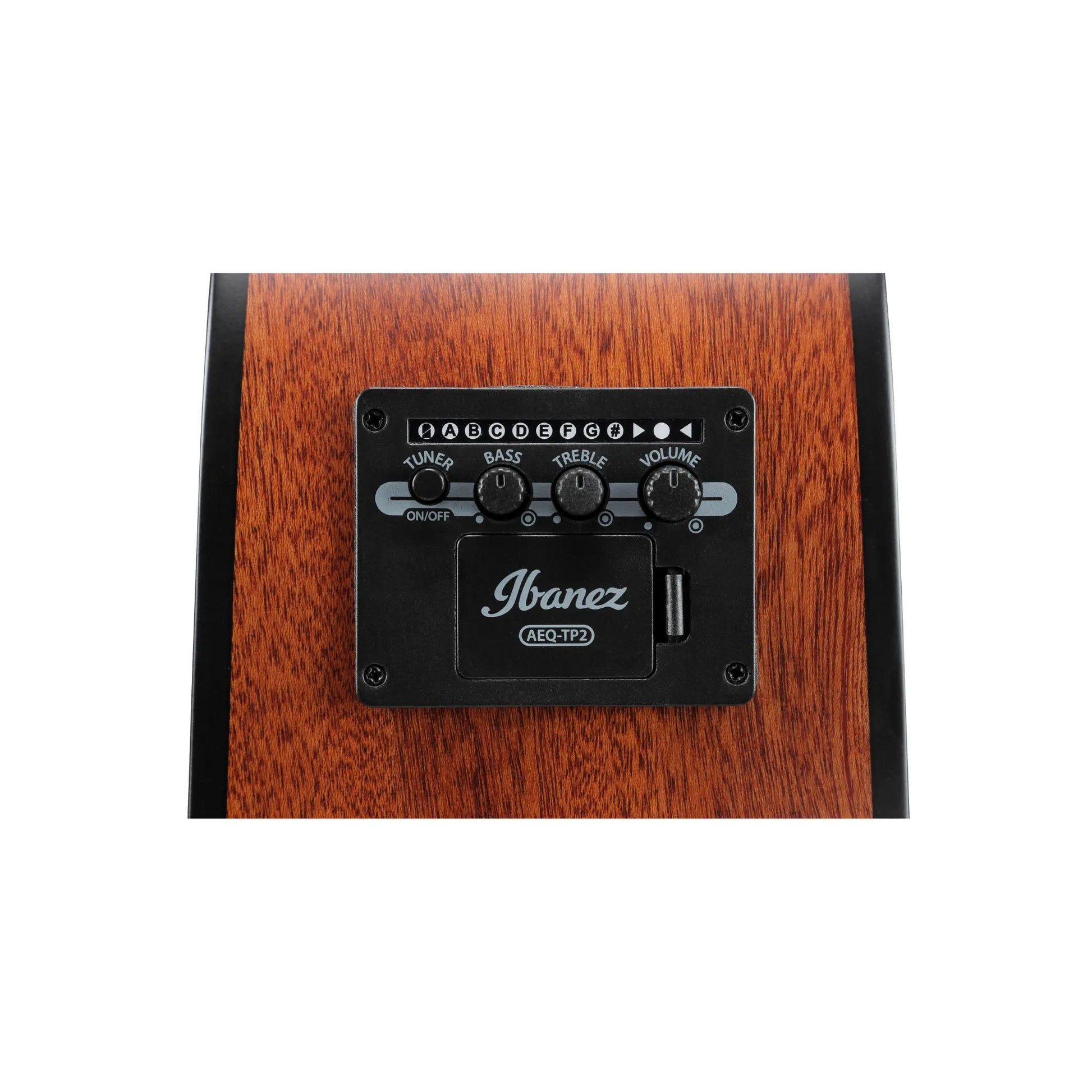

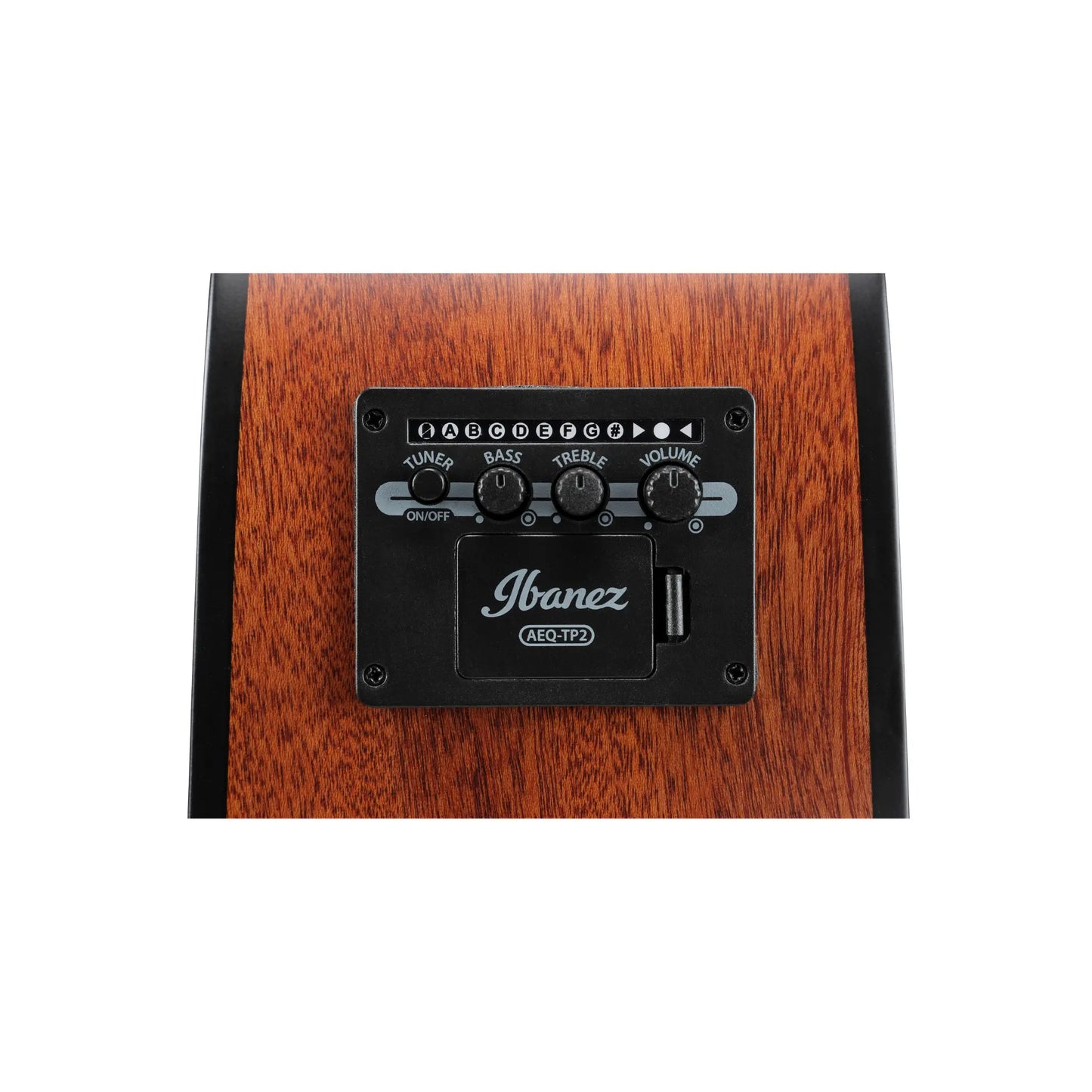

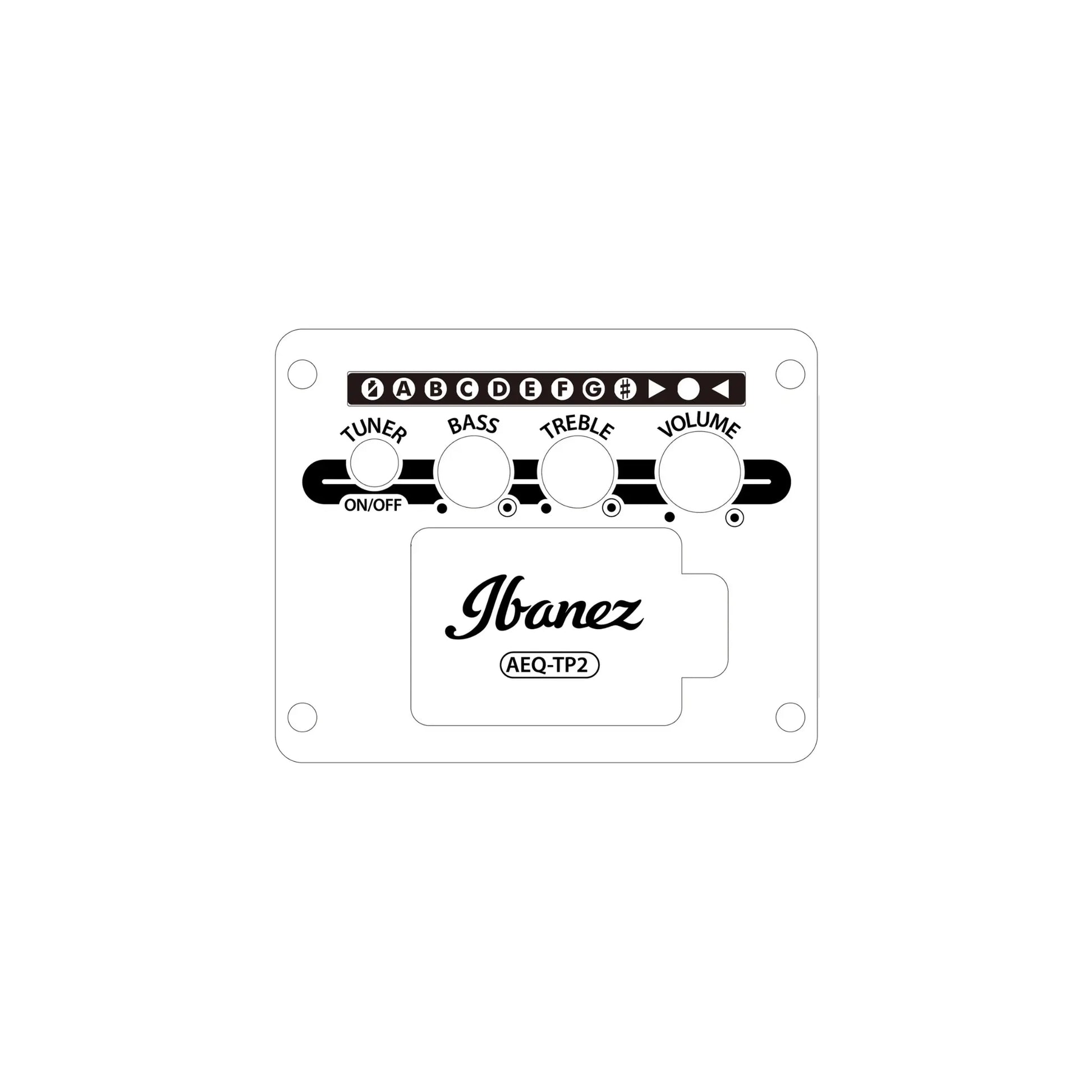

• Preamp: Ibanez AEQ-TP2 w/ Onboard Tuner & 2-Band EQ

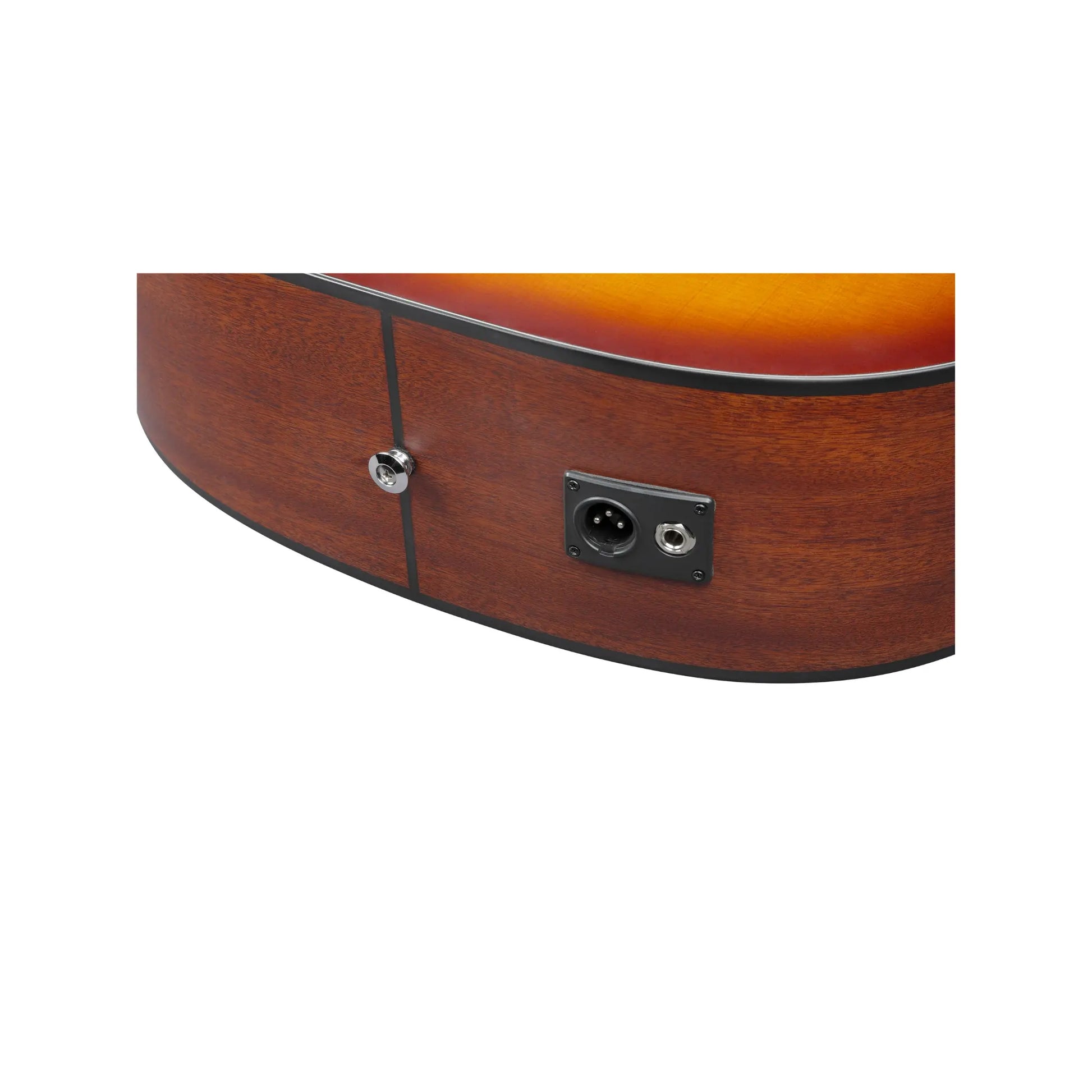

• Outputs: Balanced XLR & 1/4" Jack

The AEQ-TP2 preamp provides convenient, clear amplification with easy EQ shaping, while the T-bar pickup captures the guitar’s full dynamic range naturally and accurately.

• Recommended Case: FS40DA
• Recommended Bag: IAB540-BK

The Ibanez AAD50CE-LBS delivers professional sound quality and modern ergonomic design, making it an excellent choice for performers, writers, and players seeking a powerful and comfortable acoustic-electric guitar.
