Dunlop BONAMASSA FZZ FCE MINI-EA

JOE BONAMASSA FUZZ FACE® MINI DISTORTION
FFM4

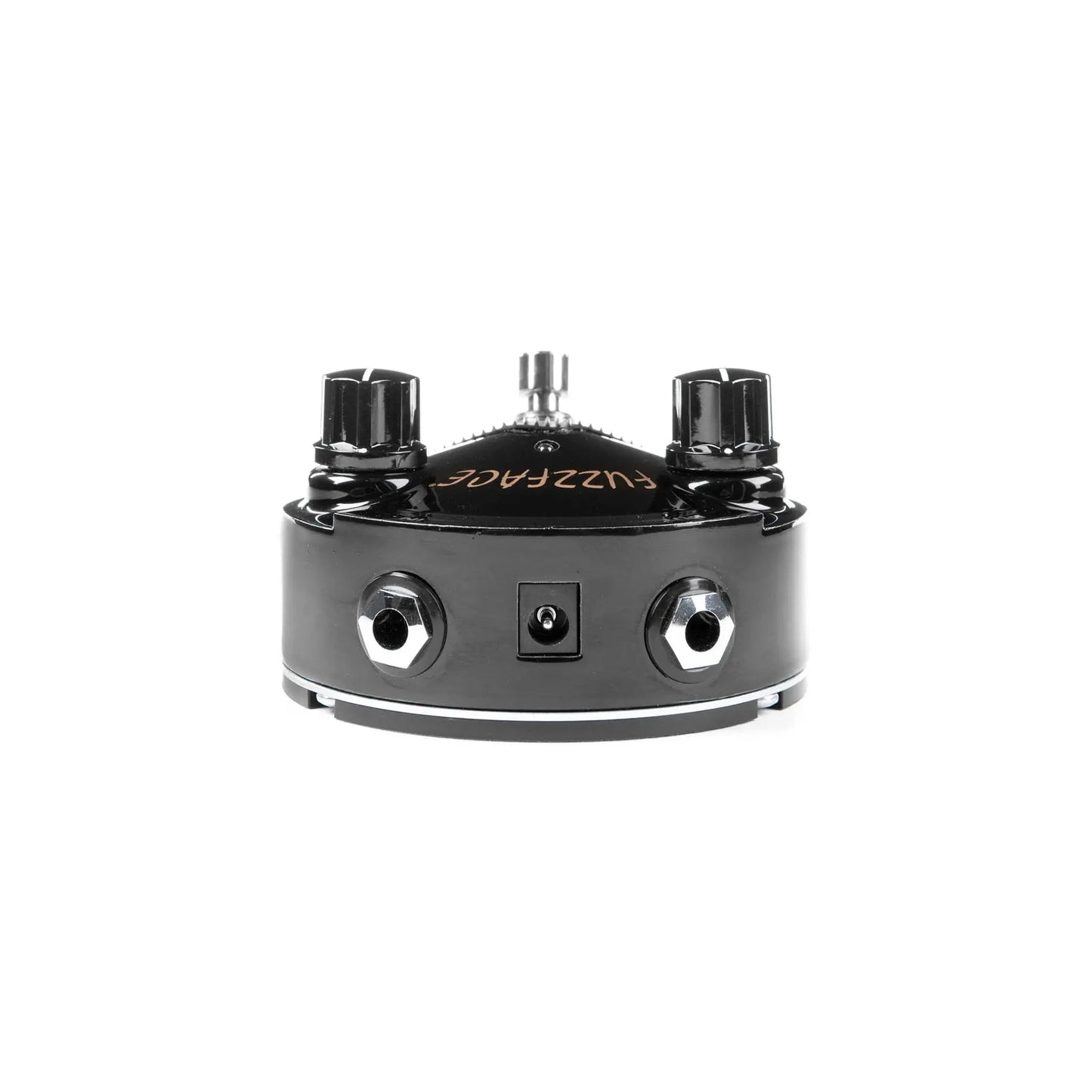

This Fuzz Face Mini Distortion features the same thick, creamy fuzz tones as the JBF3B in a smaller housing, with a status LED, AC power jack, and battery door for modern convenience.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

THE LONG STORY
Now you can get Joe Bonamassa's signature fuzz while saving precious pedalboard space. The FFM4 Joe Bonamassa Fuzz Face Mini Distortion delivers the same thick, creamy fuzz tones as its big brother but in a much smaller housing with several upgrades for modern convenience. Equipped with hand-selected NOS Russian military germanium transistors, the FFM4 sports a rich gloss black finish and features a bright status LED, an AC power jack, and a battery door for convenience. Like all Fuzz Face pedals, the FFM4 features true bypass switching.

DESCRIPTION

Hand-wired with Russian military germanium transistors • Pedalboard-friendly size, AC power and on/bypass status LED • Rich gloss black finish • True bypass

CONTROLS

VOLUME knob controls overall effect volume FUZZ knob controls amount of fuzz FOOTSWITCH toggles on/ bypass (blue LED indicates on)

DIRECTIONS

Run a cable from your guitar to the FFM4’s INPUT jack and another cable from the FFM4’s OUTPUT jack to your amplifier. • Start with both controls at 12 o’clock. • Turn the effect on by depressing the footswitch. • Rotate the VOLUME knob clockwise to increase overall effect volume or counterclockwise to decrease it. • Rotate the FUZZ knob clockwise to increase amount of fuzz or counterclockwise to decrease it.

SPECIFICATIONS

Input Impedance 10 kΩ

Output Impedance

Max Volume 16 kΩ -6 dB Volume* 126 kΩ

Max Gain 45 dB

FFM4 JOE BONAMASSA FUZZ FACE® MINI DISTORTION POWER

The FFM4 Joe Bonamassa Fuzz Face Mini Distortion is powered by one 9-volt battery (open battery door on underside of pedal to install), a 9-volt AC adapter such as the Dunlop ECB003/ ECB003EU, or the DC Brick™ and Iso-Brick™ power
