Darkglass Duality Fuzz Bass Pedal

Dual-Engine Fuzz for Massive Bass Texture

The Darkglass Duality Fuzz is a highly versatile bass fuzz pedal that blends two distinct fuzz circuits to create a wide range of aggressive and textured tones. Featuring a gated saw-tooth waveform and a powerful high-gain fuzz engine, the Duality allows players to mix both signals together for unique sonic textures while maintaining clarity and definition.

FEATURES & DESIGN

• Unique fuzz pedal with two parallel fuzz circuits
• Blend of gated saw-tooth fuzz and high-gain fuzz textures
• Duality knob mixes the two fuzz engines seamlessly
• Concentric Level and Duality controls for simple tone shaping
• Internal Filter and Blend controls for deeper customization
• Compact and reliable pedalboard-friendly design
• Standard 9V DC center-negative power operation

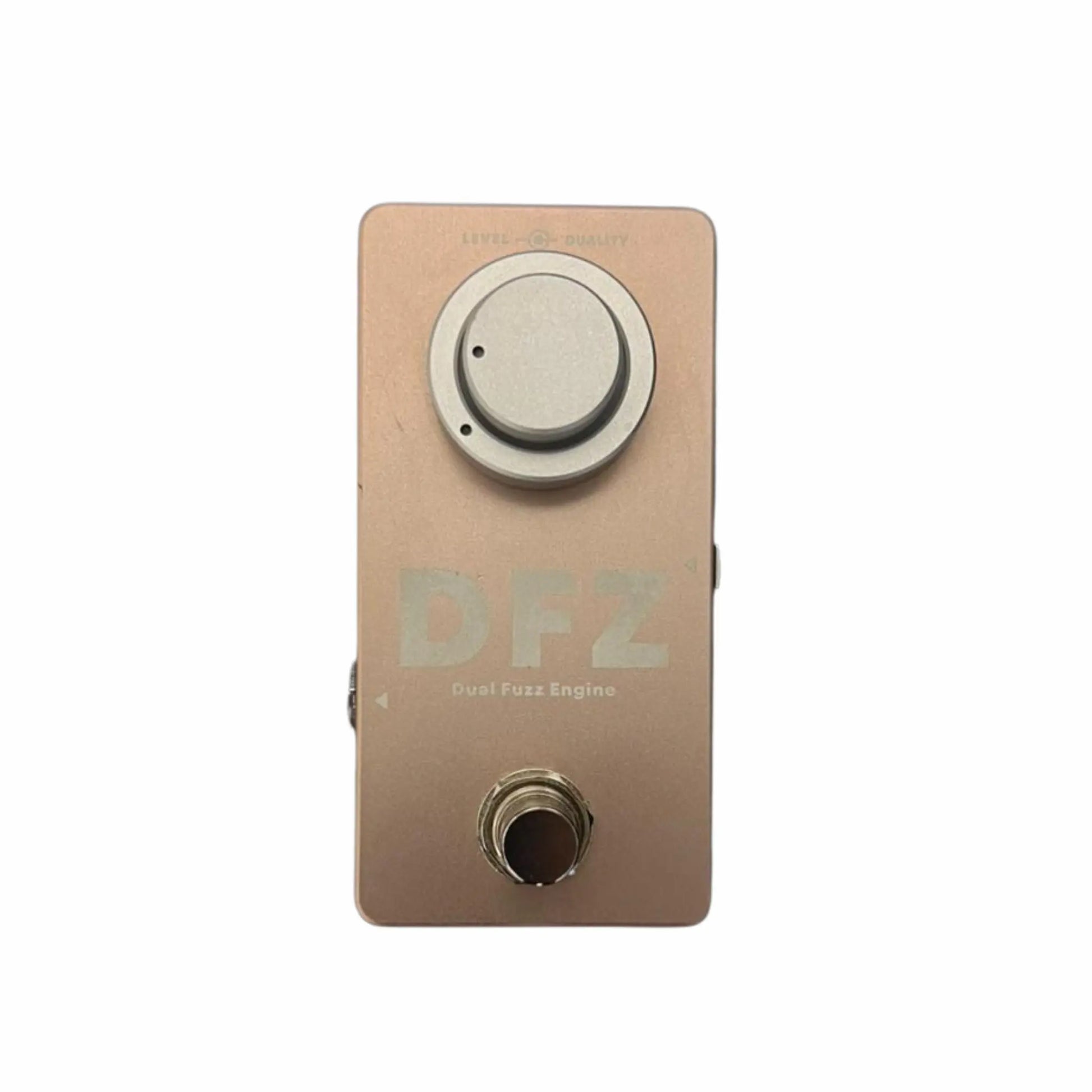

FRONT PANEL CONTROLS

• Level – Sets the overall output volume of the overdriven signal
• Duality – Blends the two fuzz circuits, from gated saw-tooth tones to tight high-gain fuzz

REAR PANEL CONTROLS

• Blend – Mixes the clean input signal with the overdriven fuzz signal to retain clarity and attack
• Filter – Adjusts the high-frequency content of the fuzz signal

TECHNICAL SPECIFICATIONS

• Input Impedance: 1 MΩ
• Output Impedance: 100 kΩ
• Current Consumption: ~40 mA
• Power Requirement: 9V DC (Center Negative)

DIMENSIONS

• Width: 50 mm / 2″
• Length: 45 mm / 1¾″
• Height: 100 mm / 4″
• Weight: 205 g / 0.45 lb

IMPORTANT NOTICE

• Use only a regulated 9V DC center-negative power supply
• Unregulated adapters or higher voltages may cause noise issues or damage the pedal
• Improper power usage may void the manufacturer warranty
