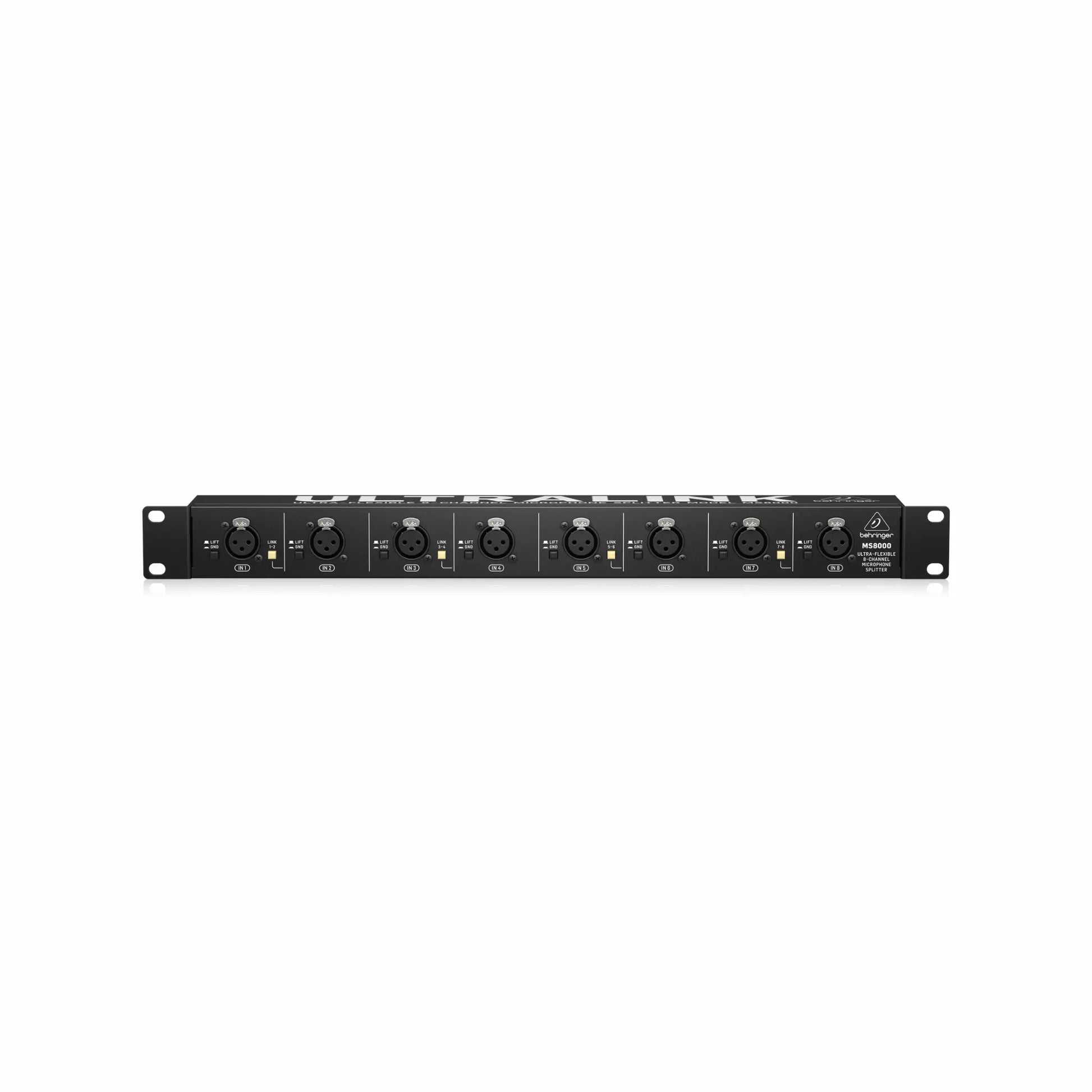

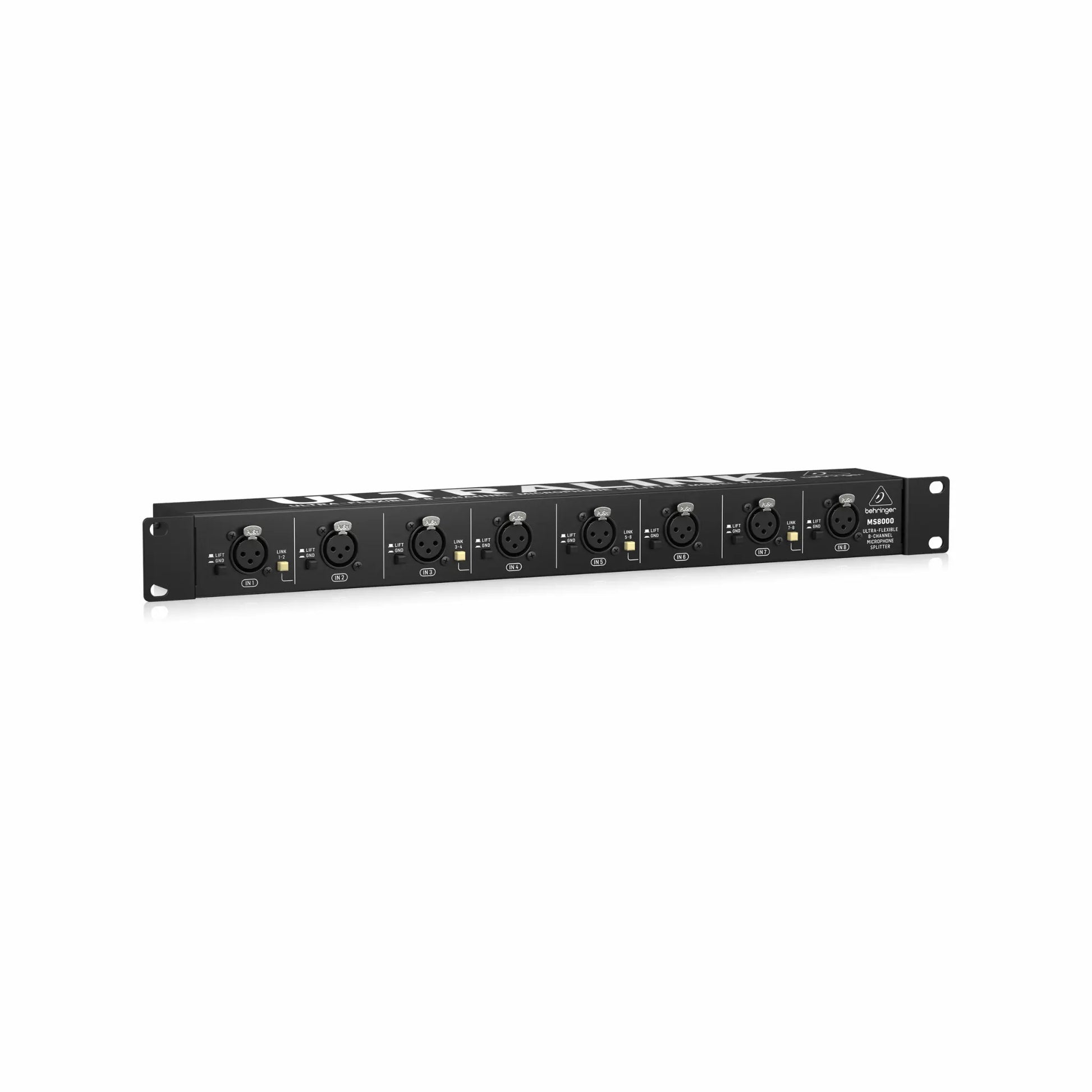

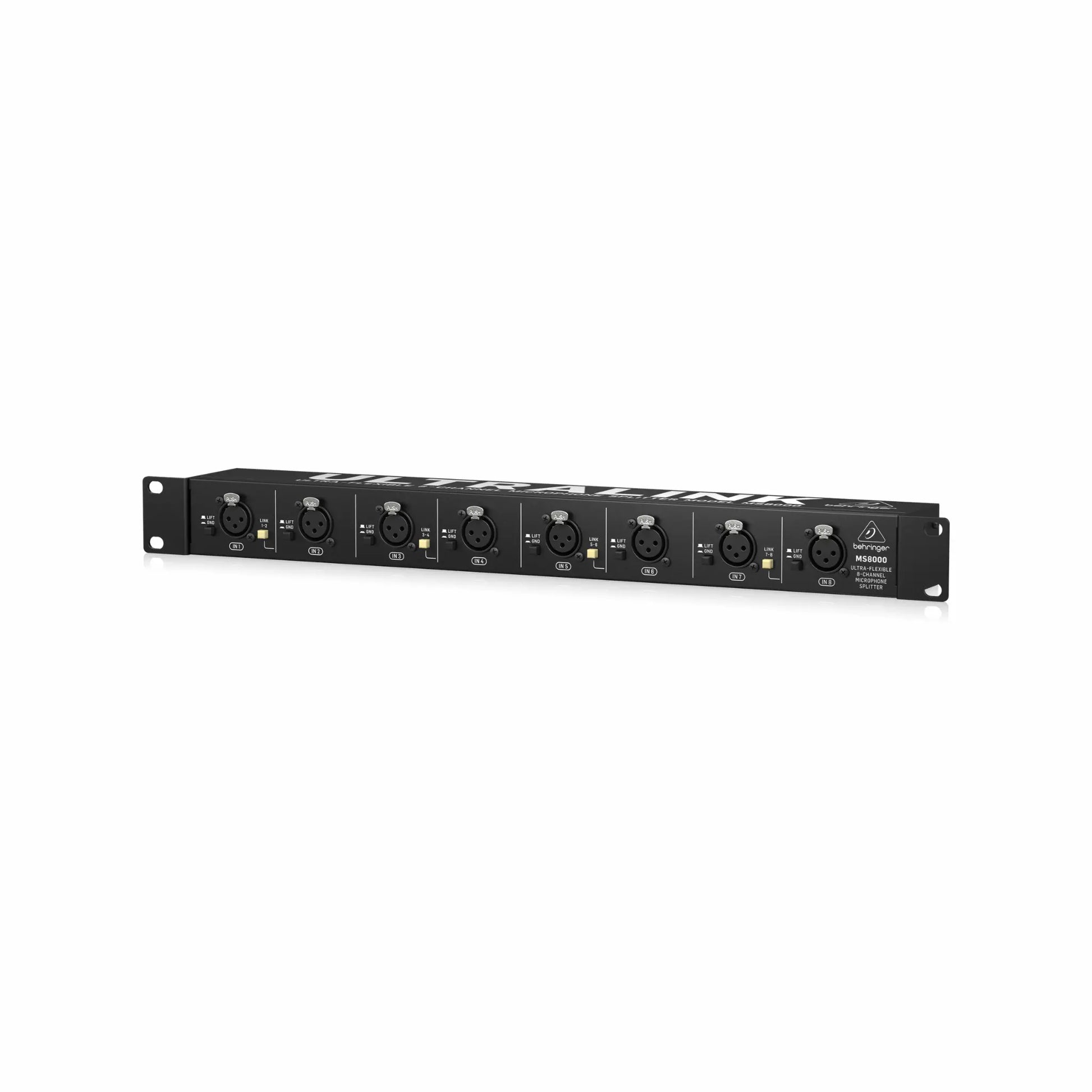

MS8000 Ultra-Flexible 8-Channel Microphone Splitter

Professional 8 In / 16 Out Passive Mic Splitting Solution

The MS8000 Ultra-Flexible 8-Channel Microphone Splitter is a professional-grade passive splitter designed for live sound, studio recording, and broadcast environments. Featuring ultra-low noise performance, balanced transformer design, and flexible routing controls, the MS8000 ensures clean signal distribution across multiple outputs without compromising tone or clarity.

KEY FEATURES

• Ultra-low noise 8 in / 16 out microphone splitter
• Each channel includes Direct and Link outputs
• Individual ground lift switch per channel
• Flexible input link switches for routing control
• Phantom power link to Direct Output
• Passive design no external power required

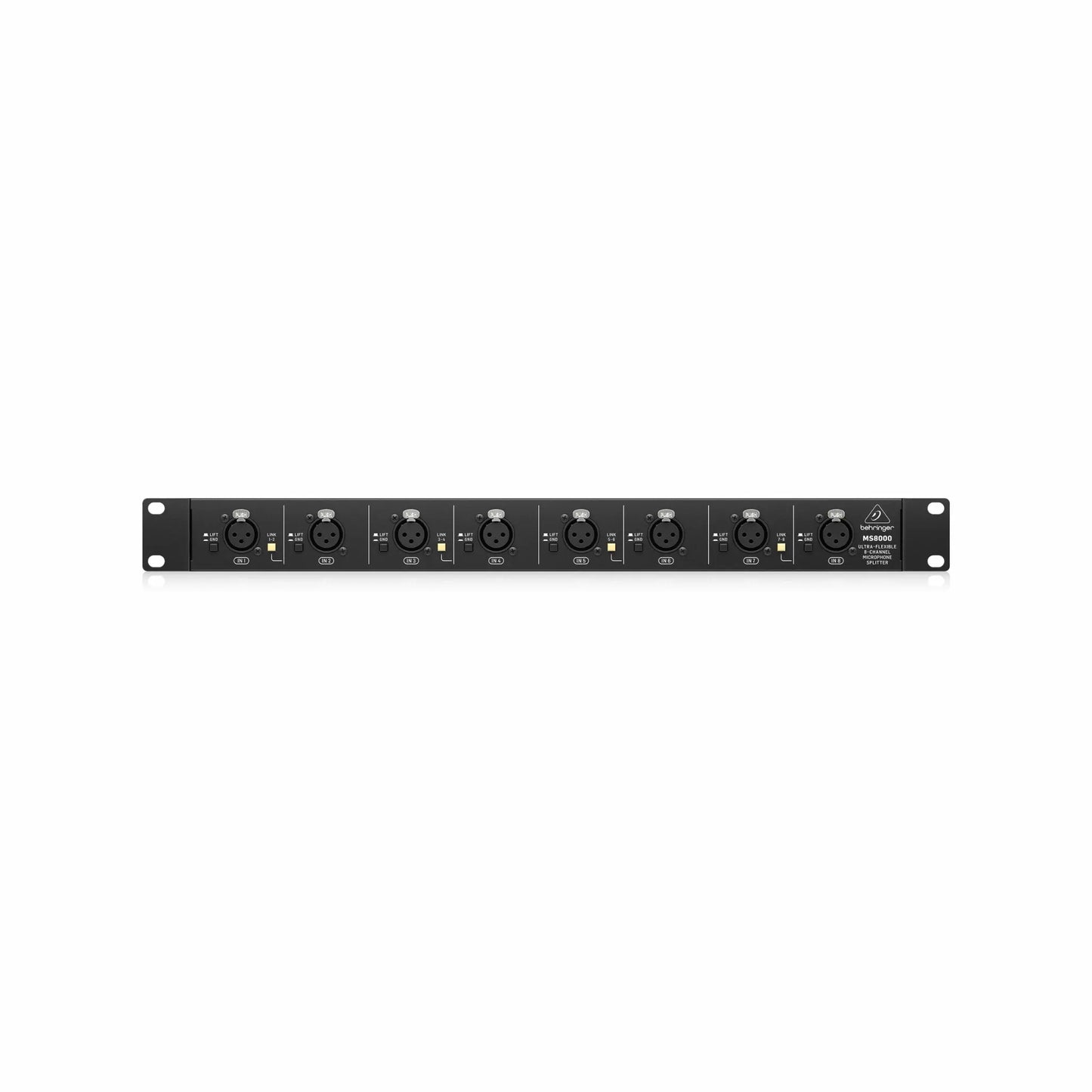

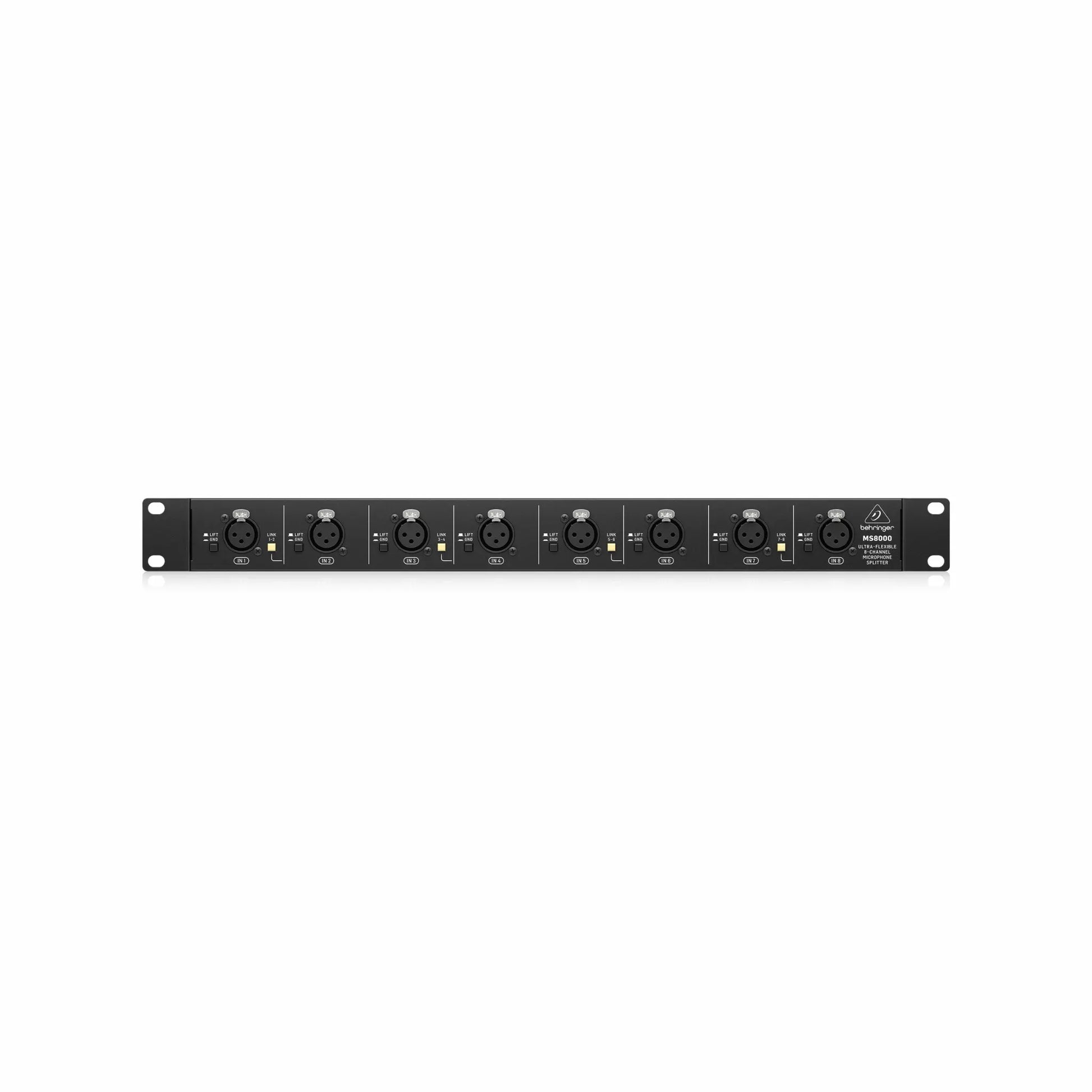

AUDIO INPUTS

• 8 × XLR connectors
• Impedance: 1 kΩ, balanced
• Maximum input level: 30 dBu @ 1 kHz
• Controls: Link and Lift/Ground per channel

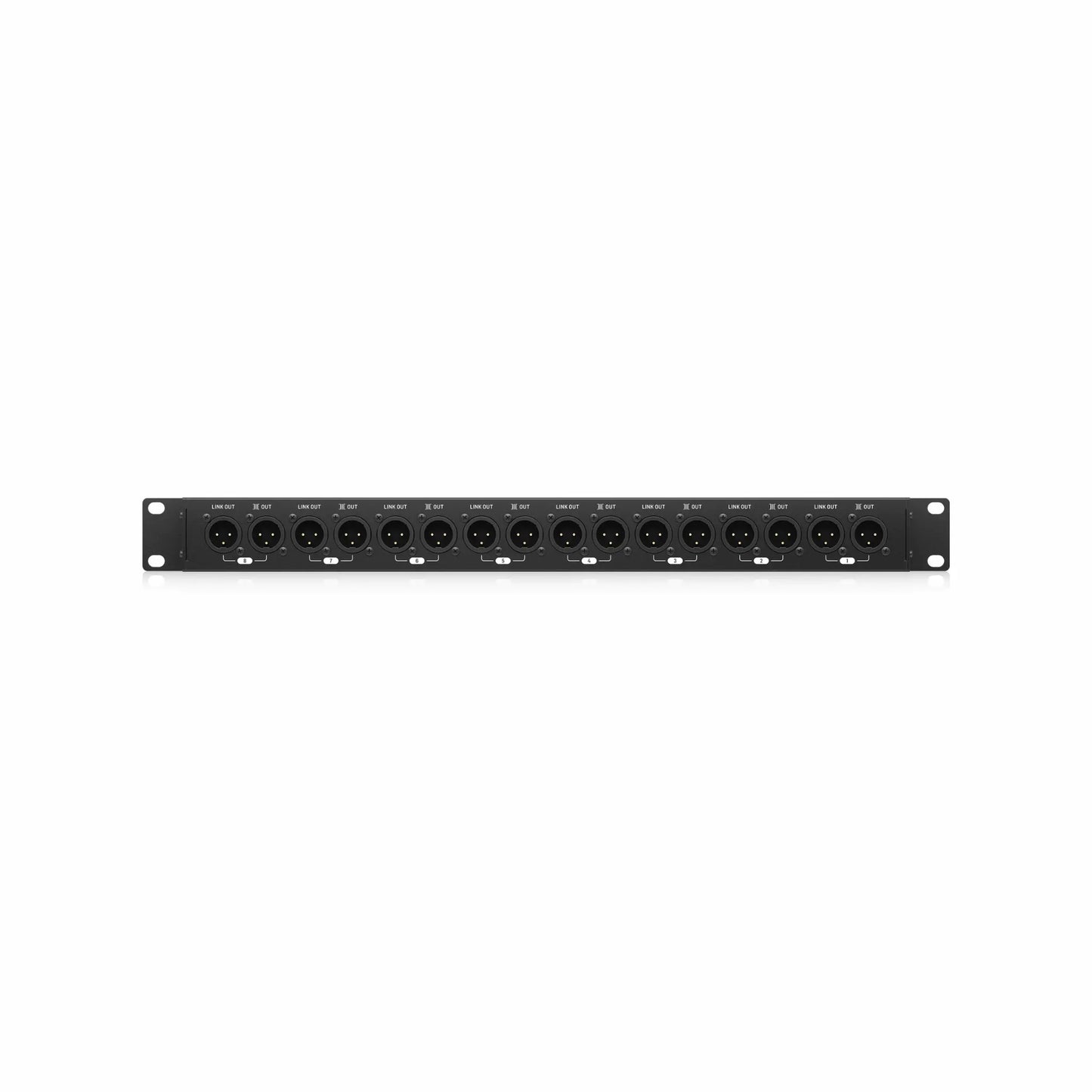

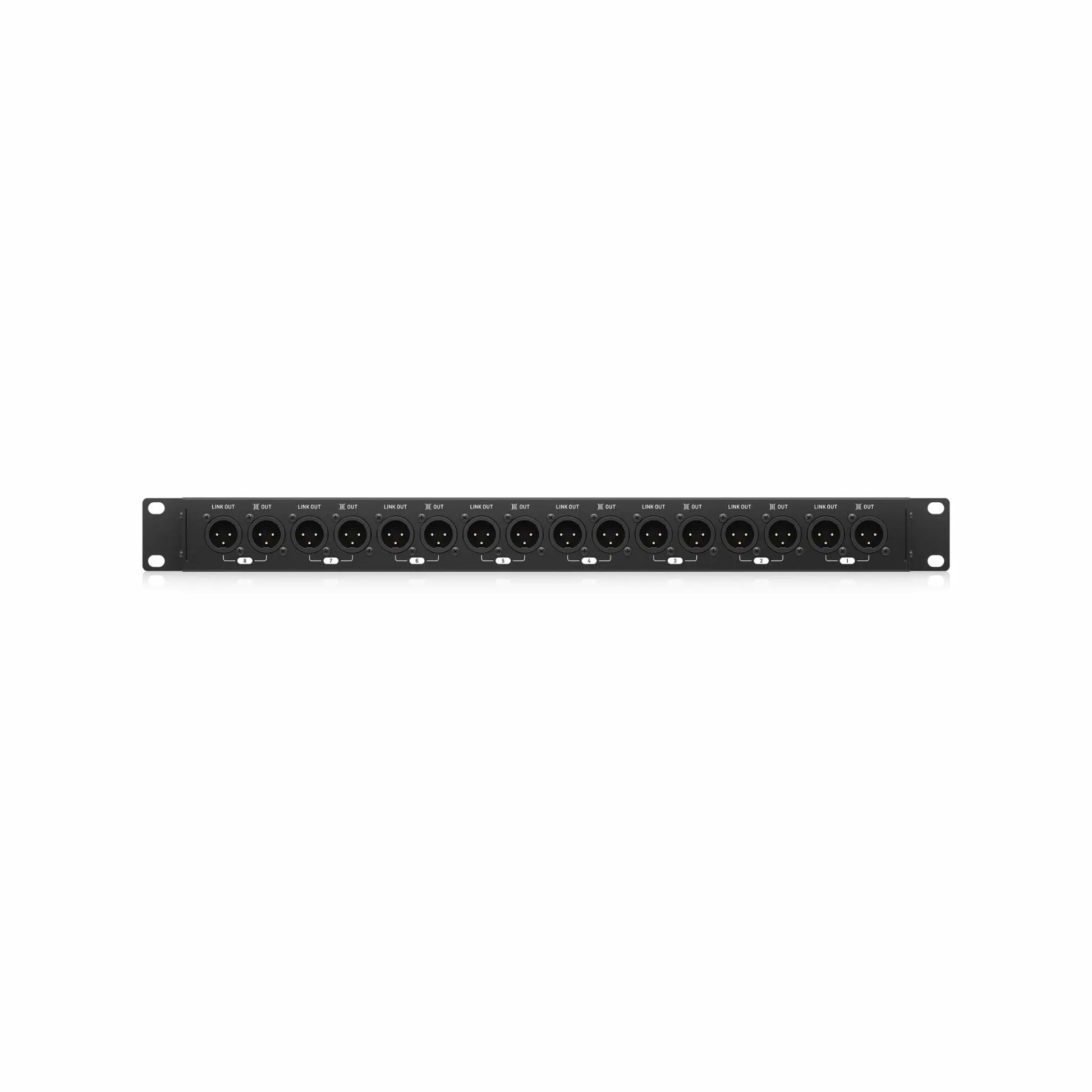

AUDIO OUTPUTS

• 8 × XLR Link outputs (parallel to inputs)
• 8 × XLR Direct outputs
• Voltage transformation ratio: 1 : 1.2
• Impedance: 2.7 kΩ, balanced
• Maximum output level: 38 dBu @ 1 kHz

SYSTEM PERFORMANCE

• Frequency response: 30 Hz – 30 kHz (±0.5 dB @ +4 dBu)
• THD + N: 0.02% @ 1 kHz, input level +4 dBu
• Signal-to-noise ratio: 104 dBu
• CMRR: >80 dB (typical)
• Insertion loss: +8 dB @ 100 kΩ / -5 dB @ 600 Ω

DIMENSIONS & WEIGHT

• Dimensions (H × W × D): 44 × 483 × 65 mm (1.7 × 19.0 × 2.6")
• Weight: 1.1 kg (2.4 lbs)
