Premium Studio Control & USB Audio Interface

Ultra-Low Noise Master Control Center for Modern Studios

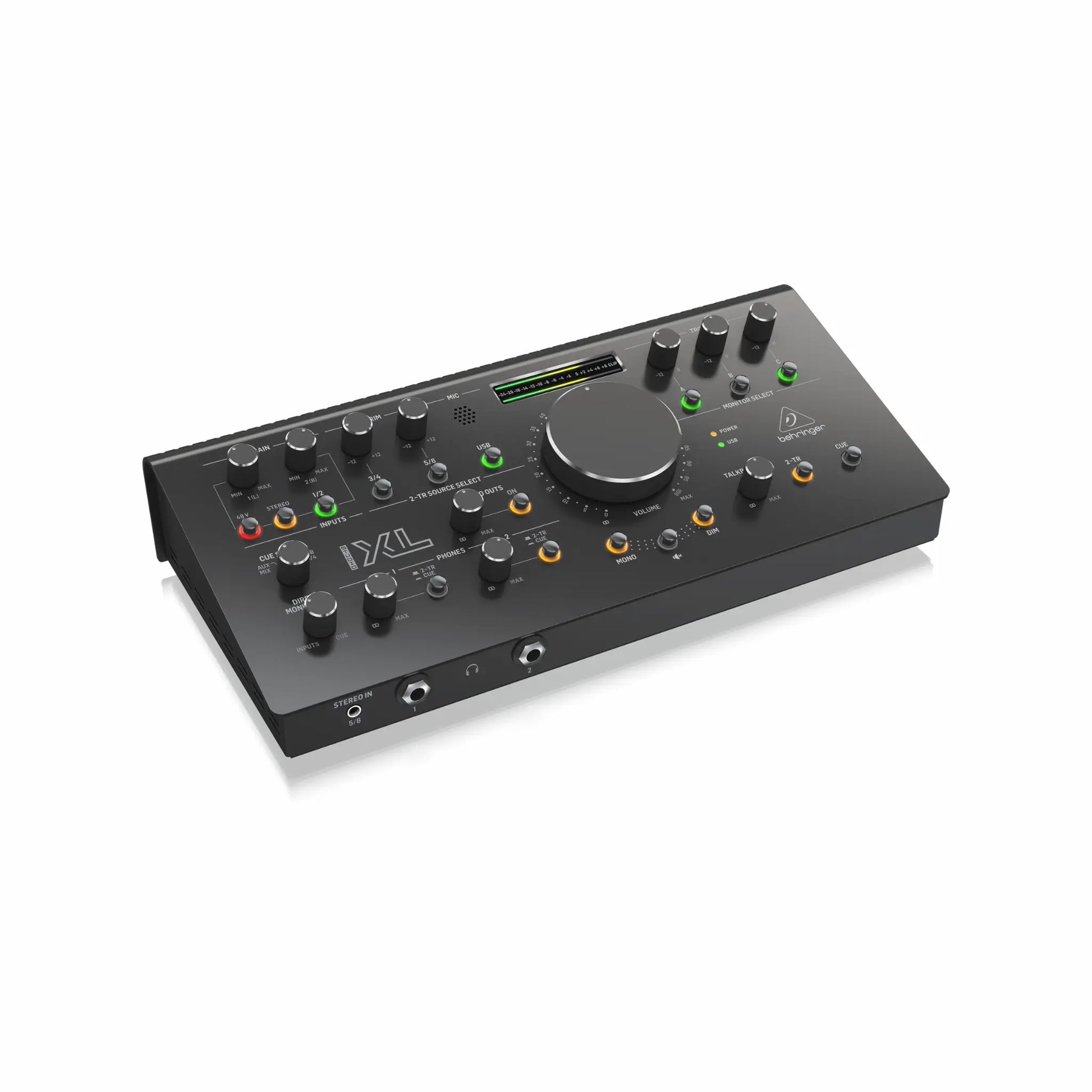

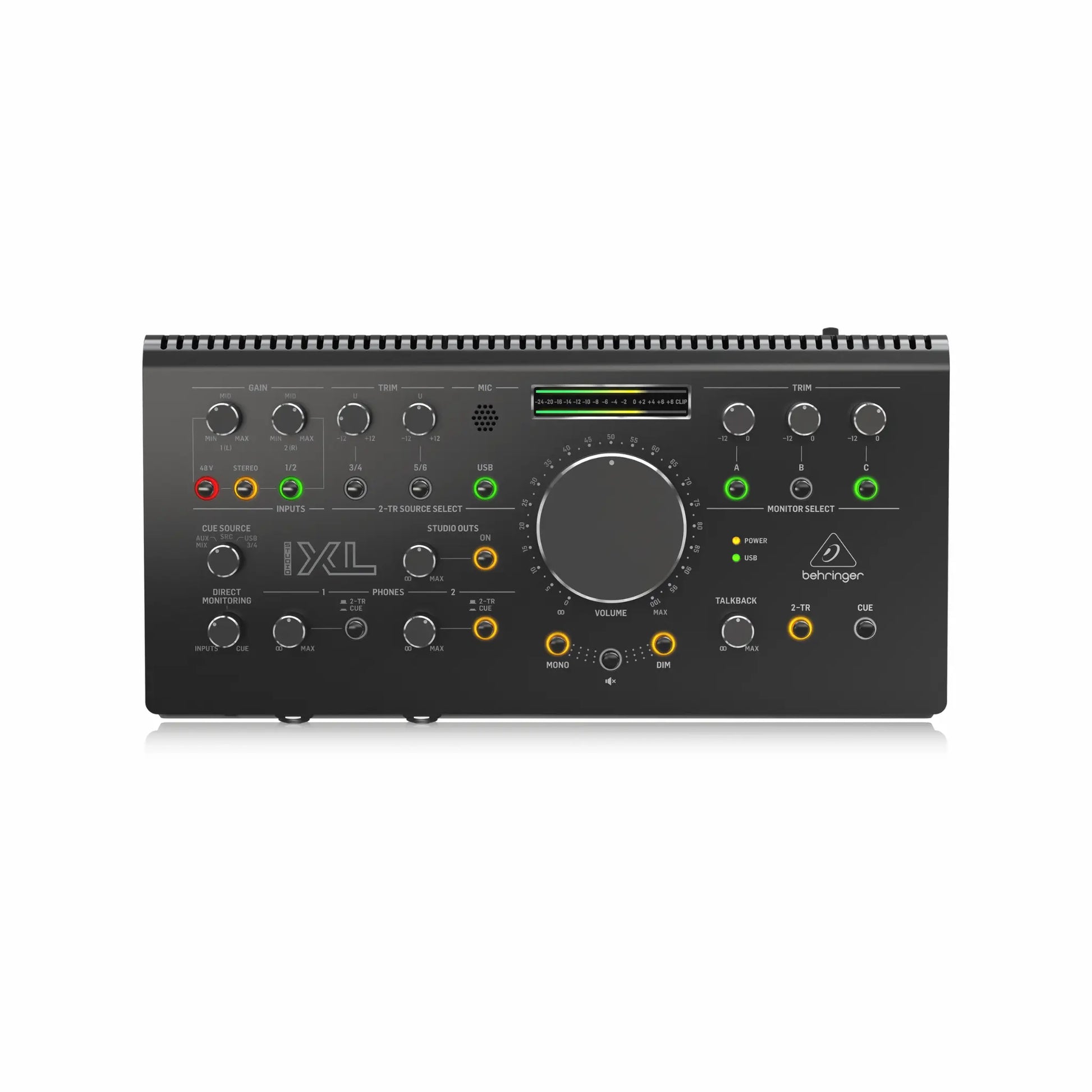

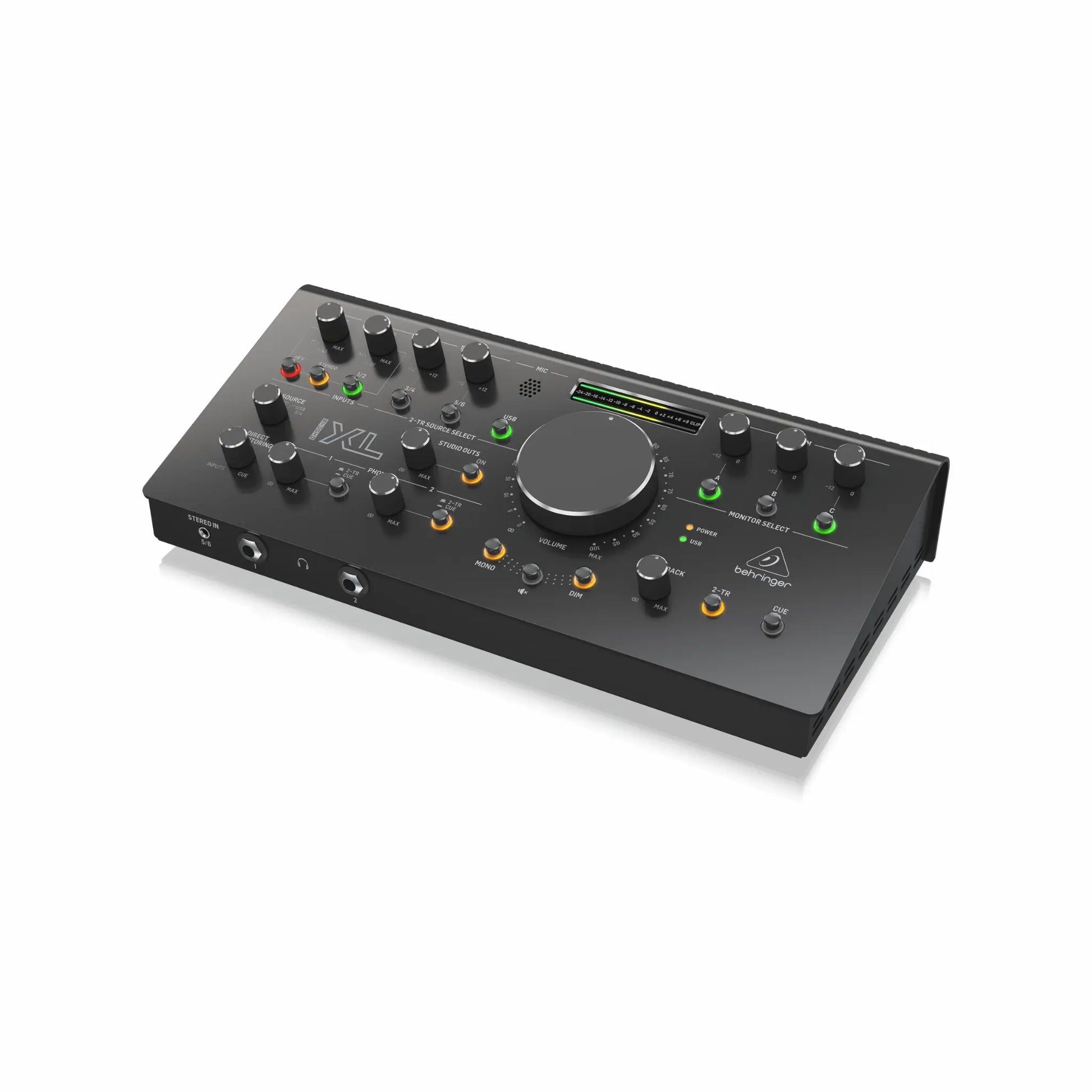

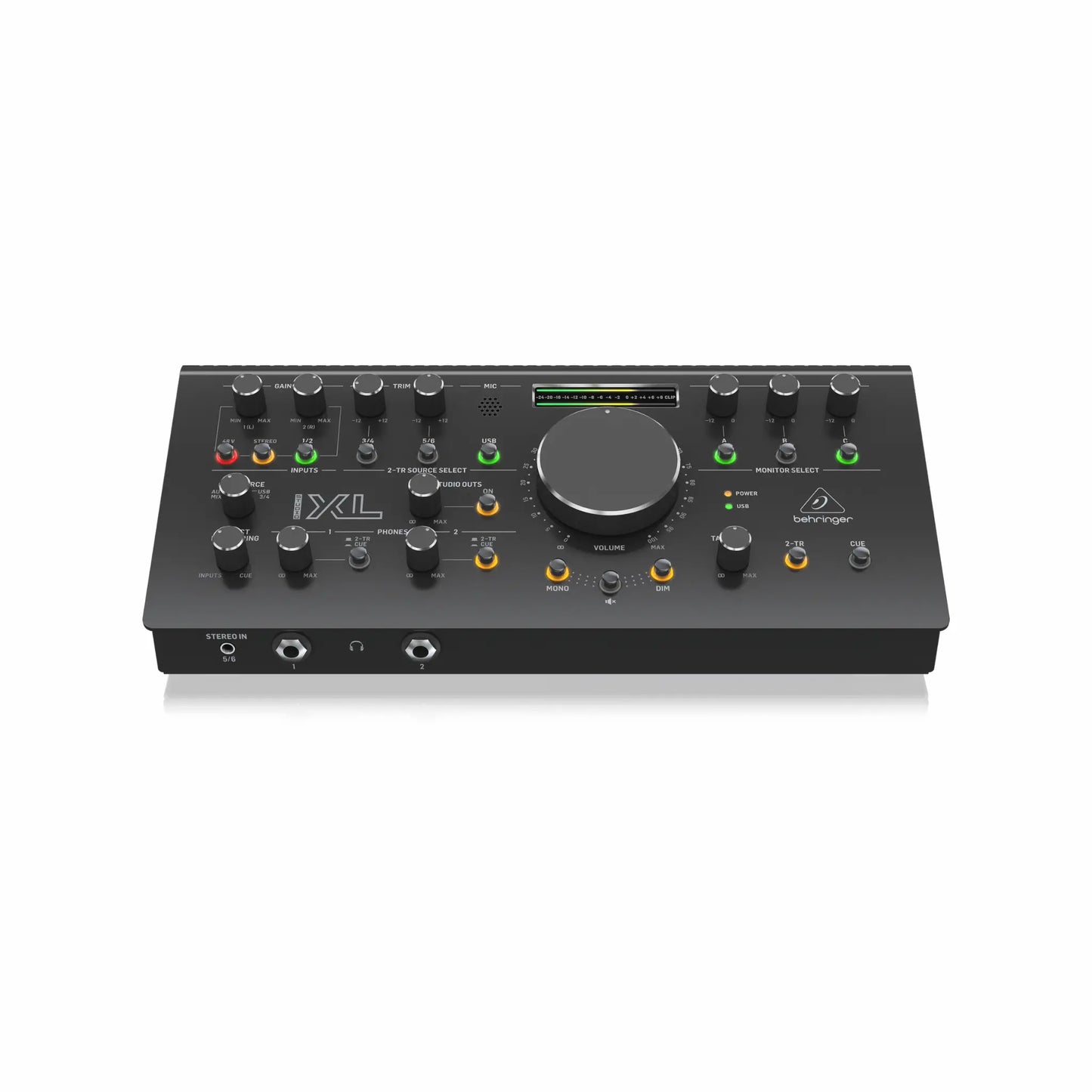

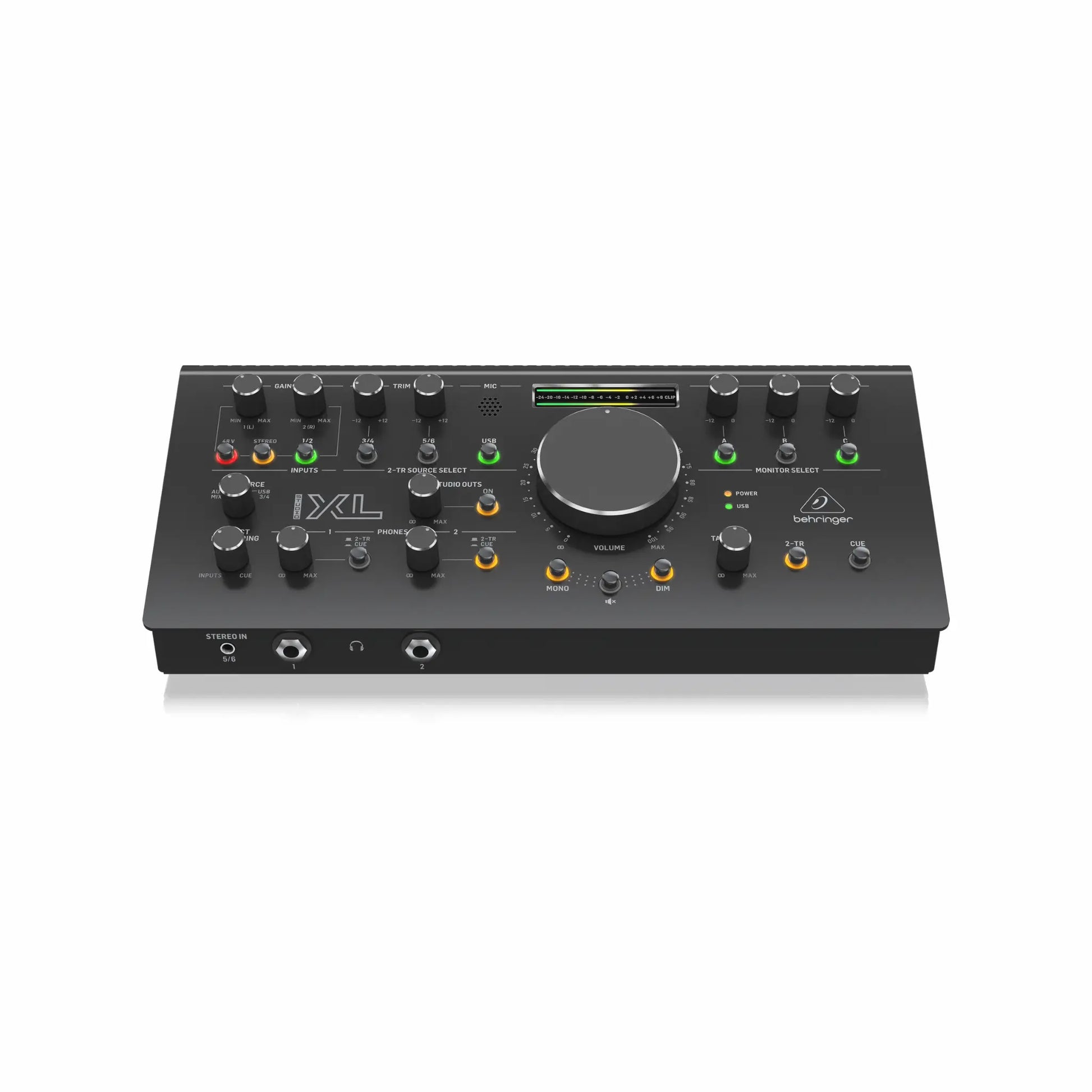

Designed as the heart of your studio, this premium control center combines master volume control, monitor switching, talkback functionality, and a high-resolution USB audio interface into one powerful unit. Featuring state-of-the-art Midas-designed mic preamps, ultra-clean signal path, and precision VCA volume control, it delivers exceptional clarity, headroom, and workflow efficiency for professional recording environments.

KEY FEATURES

• All-in-one master volume controller, source selector, monitor switcher, and talkback system
• 2 Midas-designed mic preamps with +48V phantom power
• 192 kHz / 24-bit 2x4 USB audio interface for computer-based studios
• True VCA control for precise level accuracy and stereo tracking
• 6 inputs with independent level controls plus auxiliary and USB monitoring
• 3 independent monitor outputs (A/B/C) for multiple speaker setups
• Versatile talkback system with internal mic, external XLR input, and footswitch support
• Mono, Mute, and Dim functions for quick monitoring control
• Dual high-power headphone amplifiers with separate level and source selection
• Zero-latency direct monitoring with adjustable cue blend
• Quick-access aux input for smartphones and reference tracks
• High-precision dual LED meters for accurate level monitoring

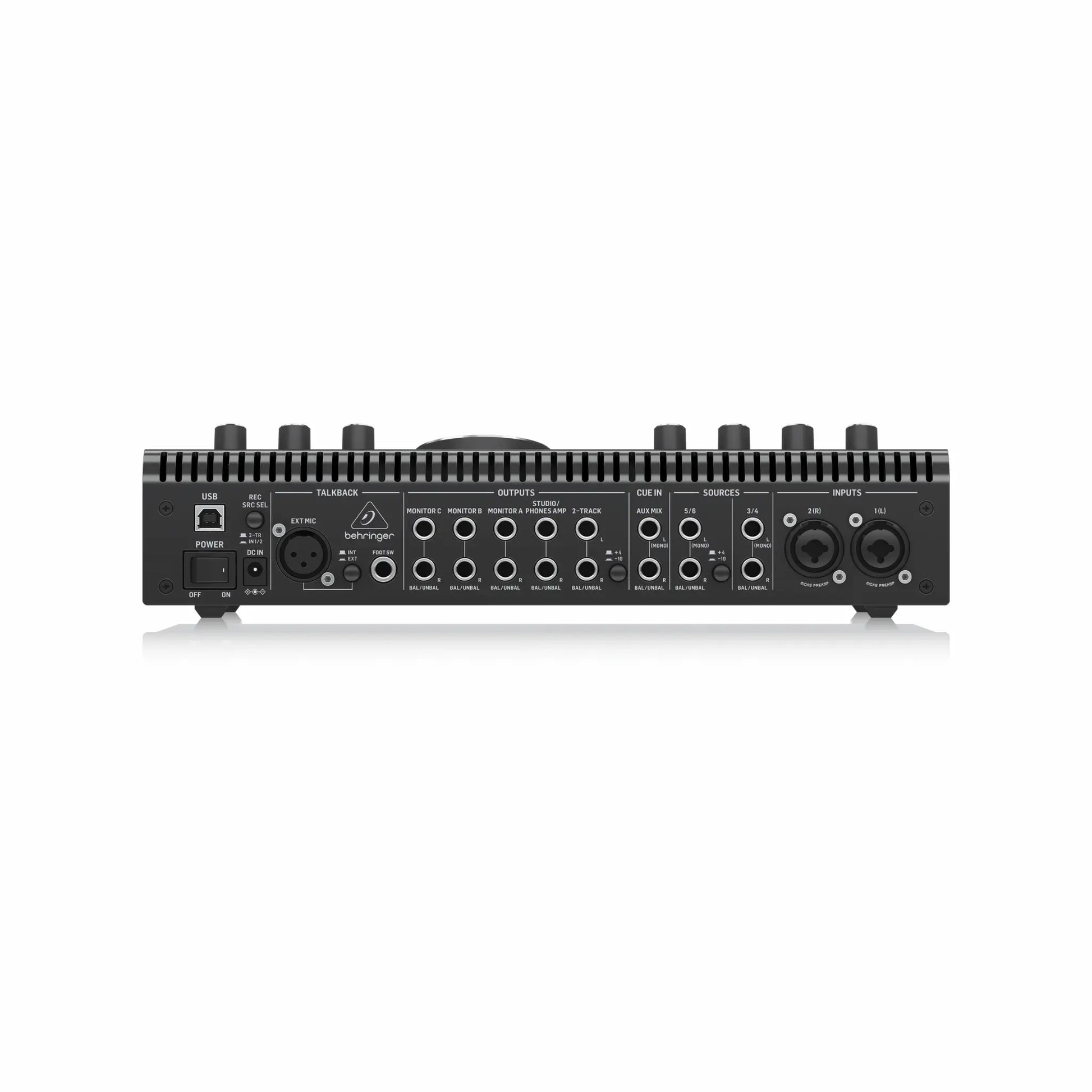

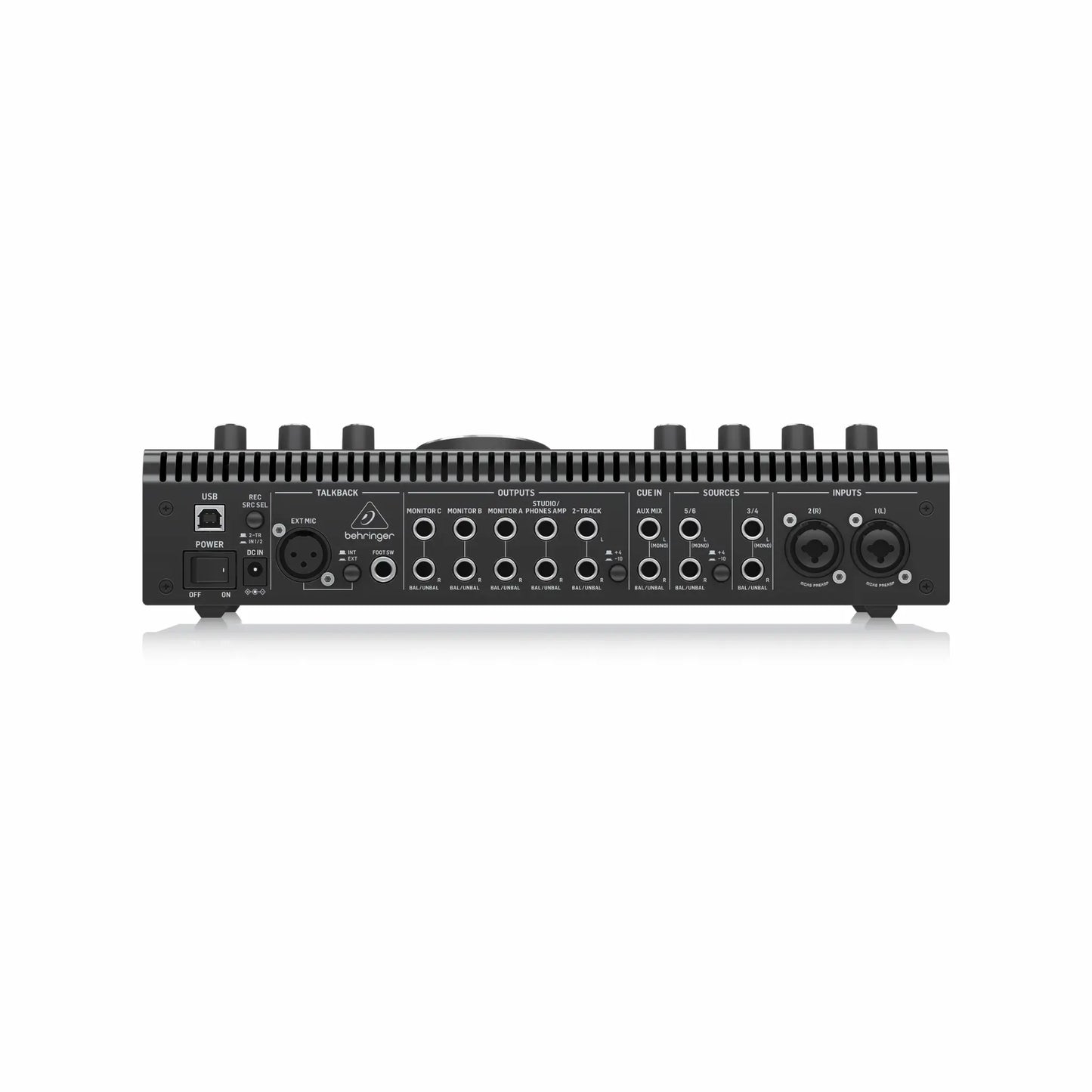

INPUTS & OUTPUTS

• 6 total inputs including 2 x XLR/TRS combo (mic/line)
• 4 x 1/4" TRS line inputs (+4/-10 dB switchable)
• 1 x 1/8" TRS stereo input (5/6)
• 1 x XLR talkback input + 1 x 1/4" TRS footswitch
• 10 x 1/4" TRS line outputs (balanced/unbalanced)
• 2 x 1/4" TRS stereo headphone outputs
• Maximum input/output level: +22 dBu

USB AUDIO INTERFACE

• Class-compliant USB 2.0 (Type B)
• 2-in / 4-out audio streaming
• 24-bit converter resolution
• Sample rates: 44.1, 48, 88.2, 96, 192 kHz
• Compatible with Windows 10 and macOS 10.14 or higher

PERFORMANCE SPECIFICATIONS

• Frequency response: 20 Hz – 20 kHz (±0.5 dB)
• Signal-to-noise ratio: < -90 dBu RMS
• THD+N: < 0.01% @ 1 kHz
• Crosstalk: < -60 dB @ 1 kHz
• Power: 100–240 V AC, 12 V DC adapter (18W max)
• Dimensions: 80 x 328 x 163 mm
• Weight: 1.8 kg
