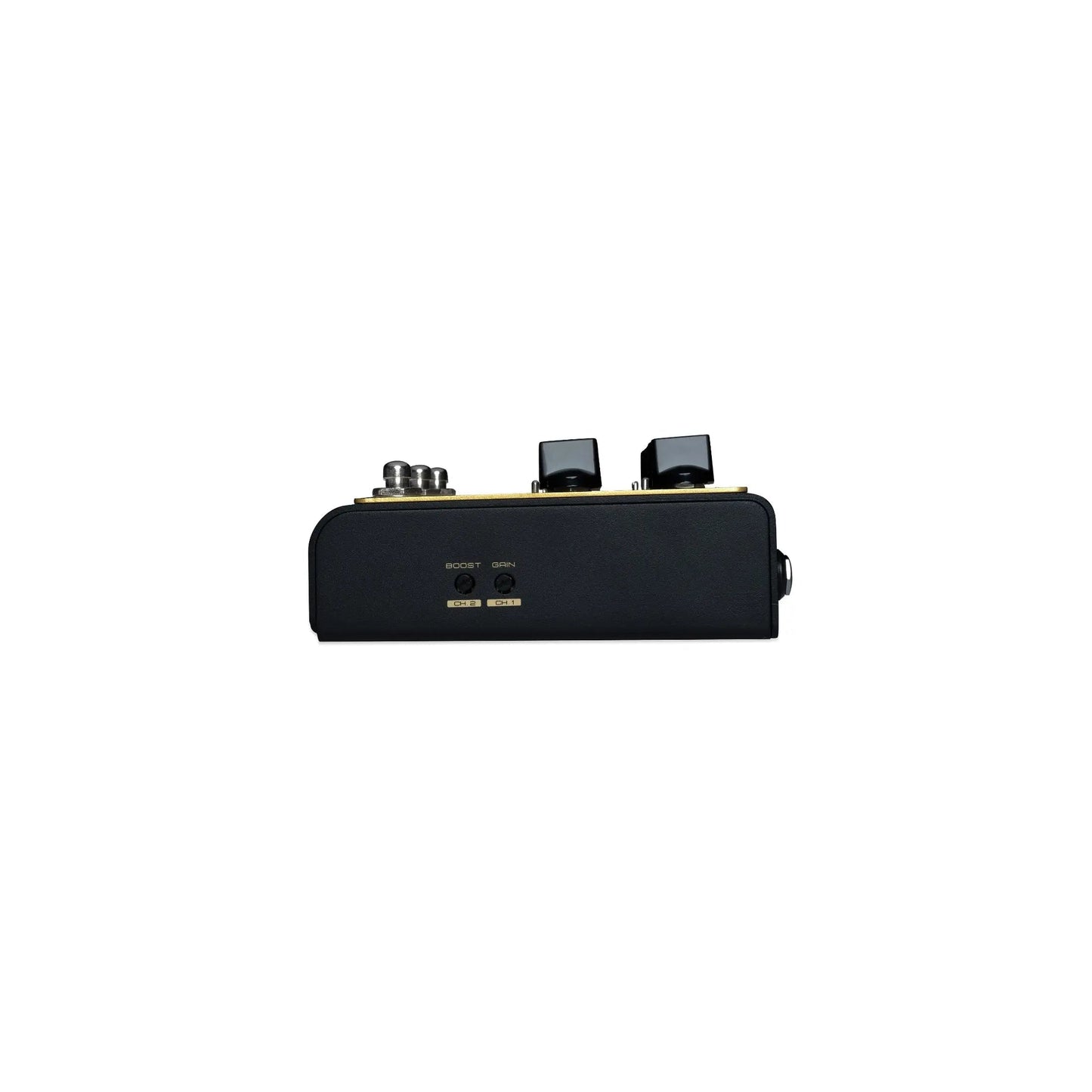

The Friedman IR-X is a compact, all-tube dual-channel preamp and DI that delivers the legendary Friedman tone in a pedalboard-friendly format. Featuring two high-voltage 12AX7 preamp tubes and independent channels with boost, it produces rich harmonics, touch sensitivity, and classic Friedman dynamics.

With built-in DSP IR cabinet and power amp simulation, IR-X allows direct recording or FOH connection with studio-quality mic’d-up tones. Easy-to-use controls eliminate complex menus while providing professional-level tonal versatility.

• All-tube high-voltage preamp / DI
• Two 12AX7 preamp tubes
• Two independent foot-switchable channels + boost
• Channel 1: Clean to British-style gritty tone
• Channel 2: High-gain Friedman signature drive
• Independent boost circuits for each channel
• 3-way Bright switch (Channel 1)
• 2-way Tight switch (Channel 2)
• Three-position CAB/IR select per channel
• Impulse Response cabinet/power amp simulation
• Friedman IR-X Editor software included (MIDI & IR customization)
• Ultra-transparent effects loop
• MIDI-capable with 5-pin standard and USB connection
• Low-latency headphone output
• Compact size for pedalboard integration
• Limited 3-year warranty included

• Preamp Tubes: 2 x 12AX7
• Channels: 2 independent + boost per channel
• Cabinet IRs: 12 Friedman IRs included, load your own
• EQ: Bass, Middle, Treble (per channel)
• Boost Controls: Volume and Gain (per channel)
• Footswitches: 3 multifunction
• Effects Loop: Series, bypassable, ultra-transparent
• Outputs: TRS balanced DI, Headphone
• MIDI: 5-pin standard connector, USB
• Software: Friedman 4.3 Editor
• Dimensions: 5.5" D x 6.5" W x 2.3" H
• Weight: 1.5 lbs
• Power: 12V universal PSU included

• All-tube dual-channel preamp
• Channel 1: Clean to Plexi-style tone
• Channel 2: High-gain signature Friedman drive
• Independent boost circuits per channel
• Cab/IR selection per channel
• Power amp simulation via IR-X Editor software
• Headphone output with IR/Direct signal

Each channel delivers authentic Friedman tone with harmonic richness, touch sensitivity, and dynamic response. Switchable IR cabinet simulation and power amp modeling provide recording- and stage-ready flexibility.

• MIDI controllable: Channel select, Boost, IR selection, effects loop ON/OFF
• Software adjustable: Thump & Presence per channel, Boost Lock, IR upload
• Compatible with any pedalboard setup
• Standalone preamp, IR-Loader, or full rig integration options
• USB 2.0 A to B cable included
• Compact, pedalboard-friendly footprint
• Manual: Click here.

The Friedman IR-X offers a complete, professional all-tube preamp solution with IR simulation, MIDI control, and flexible integration—ideal for studio, stage, or silent recording setups.
